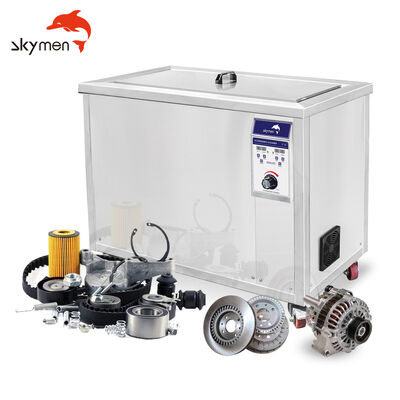

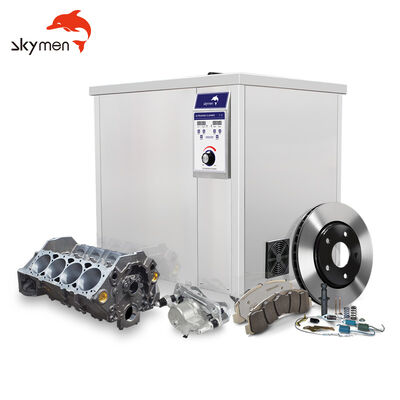

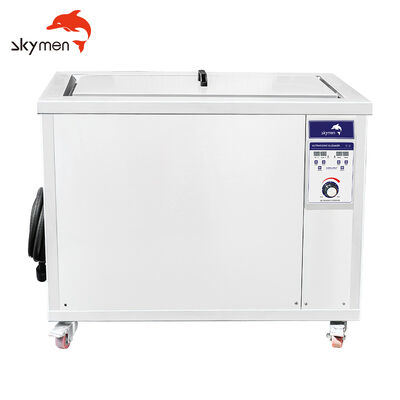

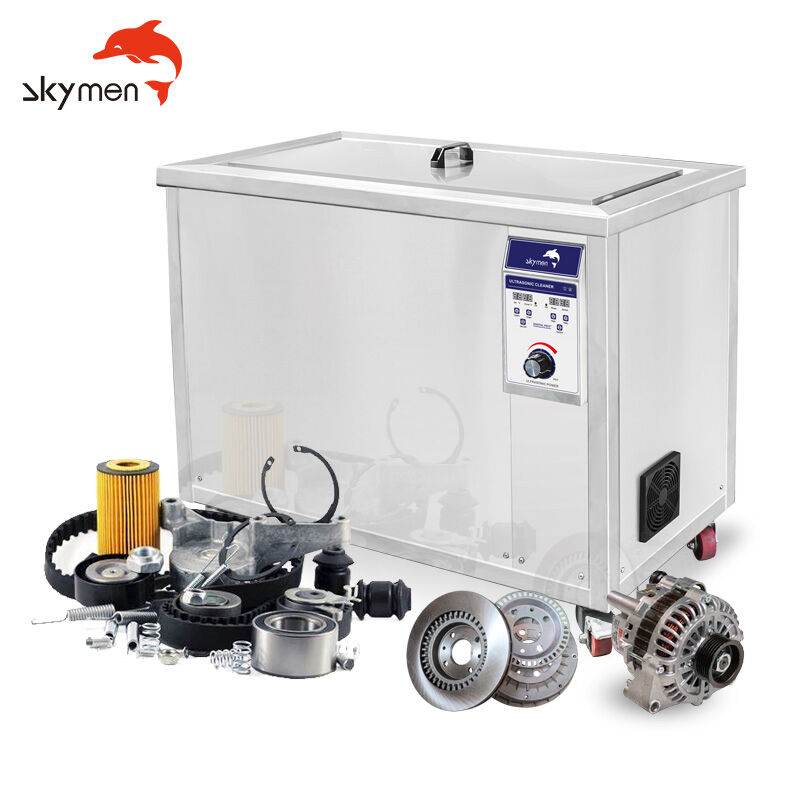

53L Large Industrial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner
High-performance 53L industrial ultrasonic cleaner with 900W ultrasonic power and 1500W heating capability. Designed for medical, laboratory, and industrial applications with professional-grade cleaning performance.
Product Specifications
| Specification | Details |
|---|
| Model No. | JP-180ST |
| Ultrasonic Frequency | 28,000 Hz/40,000Hz optional, or dual frequency |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 53 L |
| Timer | 1~99 minutes adjustable |
| Heater | 20°C to 95°C adjustable |
| Generator Voltage | AC100-120V/60Hz; AC220-240V/50Hz |
| Ultrasonic Power | 0-900W |
| Heating Power | 1500 W |
| Generator | Customized |
| Washing Basket | 1 pc |
| Caster | 4 pcs |
| Drainage | Included |
| Cover | Included |
| Oil Skimmer | Attached tank, pump |
Package Details
| Dimension Type | Measurements |
|---|
| Tank Size | 500×350×300mm (L×W×H) |
| Unit Size | 680×550×735mm (L×W×H) |
| Package Size | 800×620×880mm (L×W×H) |
| Net Weight/Gross Weight | 54kg/75kg |
| Warranty | 1 year |
Key Features
- Stainless steel SUS304 construction for durability and wear resistance
- Power adjustable via clockwise control with LED display for timer and heater settings

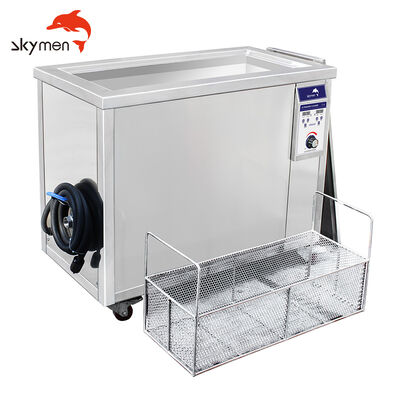

- Includes stainless steel washing basket and lid
- Ultrasonic cleaning solutions penetrate oils, residues, solvents, pastes, and chemicals
- Effectively cleans crevasses and internal bores
- Industrial control chip microcontroller with flexible circuit boards for secure and stable operation
- Includes drainage, basket, lid, and multi-direction castors for mobility
- PCB board independently researched, developed, and produced by Skymen
- Fast delivery with large stock availability
Applications
Industrial & Manufacturing
Industry instruments, hardware instruments, scientific laboratories, automotive parts, motors, machine tools, assemblies, gears, metal & plastic parts, precision bearings
Electronic Manufacturing
Capacitors, ceramic substrates, PC boards, packaging components, quartz crystals
Medical & Dental
Burs, blood oxygenators, dental instruments, syringe parts, surgical instruments, surgical instruments, droppers, research laboratory equipment, glass containers, dental appliances, esophagoscopes, bronchoscopes, proctoscopes, laboratory utensils
Jewelry & Scientific
Chains, charms, coins, intricate settings, precious metals & gemstones, watches, eyeglass frames, lab glassware, optical & contact lenses, pipettes, scientific instruments, test tubes
Certifications
CE, ROHS, FCC, ISO9001:2008
How Ultrasonic Cleaning Works
Electrical energy is converted into mechanical vibrations through specialized transducers. These vibrations transfer into the fluid through stainless steel walls, creating microscopic vacuum bubbles that cause consecutive implosions (cavitation). The resulting high-energy jets efficiently remove dirt from surfaces and materials placed in the cleaning bath, reaching even the smallest crevices.
Studies show ultrasonic cleaning can be up to 30 times faster than manual cleaning while delivering thoroughly clean results for oven trays, pans, glassware, plasticware, and lab instruments.
Frequently Asked Questions
What medical equipment can use ultrasonic cleaners?
Application in Medical industry: cleaning of syringes, surgical instruments, droppers, research laboratory equipment, glass containers, dental appliances, esophagoscopes, bronchoscopes, proctoscopes, laboratory utensils, etc.
What are the benefits of using ultrasonic cleaners in the medical industry?
- Clean Integration: Manual placement of medical utensils and cleaning fluid with intelligent automated cleaning
- Health and Safety Protection: Avoids manual cleaning of sharp instruments contaminated with patient blood, reducing infection risk
- Superior Cleaning Effect: Ultrasonic cavitation penetrates deep into appliance gaps, removing stubborn bacteria residues that manual cleaning cannot reach
Are you a trading company or a manufacturer?
We are a factory, all machines are manufactured by ourselves, and we can provide customized services according to your requirements.
What is your warranty period?
12 months after on-site commissioning, excluding available spare parts.
Are there any installation instructions after receiving the machine?
Yes, we provide theoretical and practical training for equipment operators of client companies to standardize operations and maximize equipment production efficiency.
