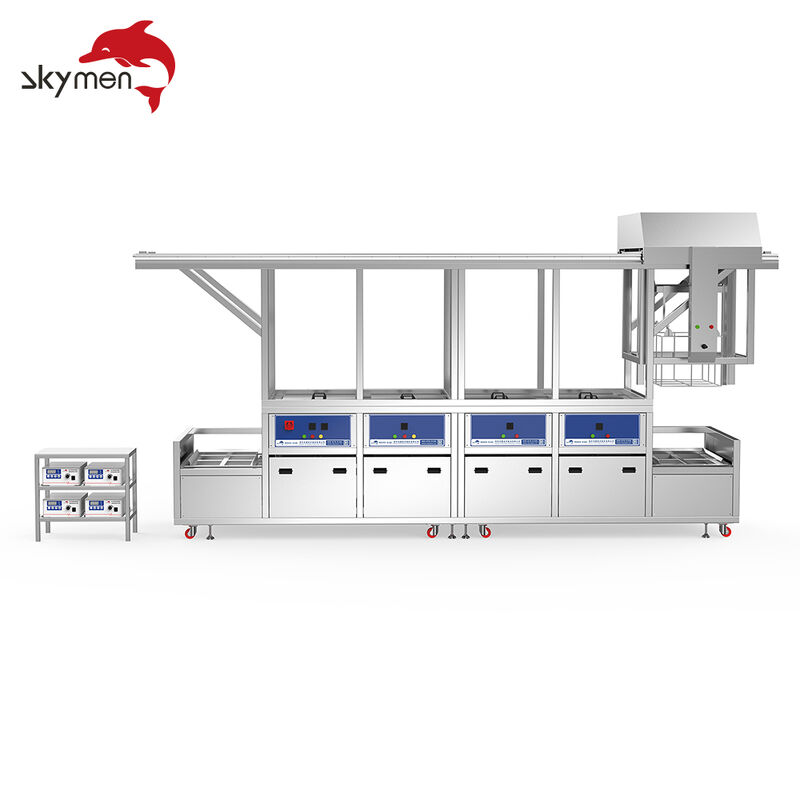

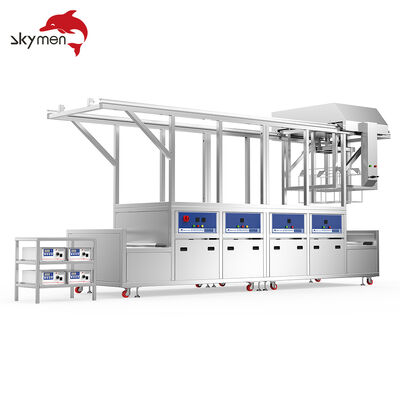

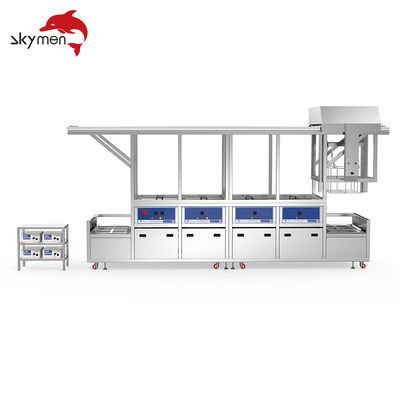

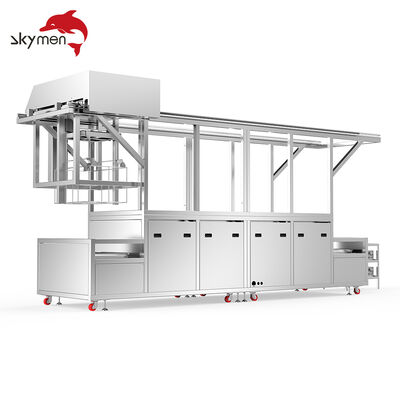

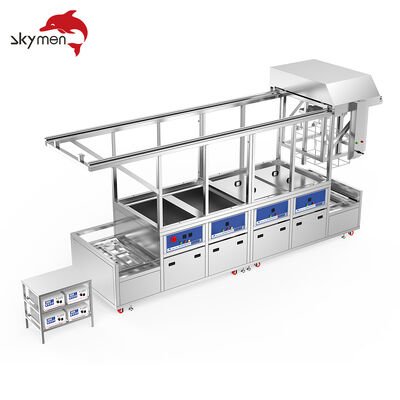

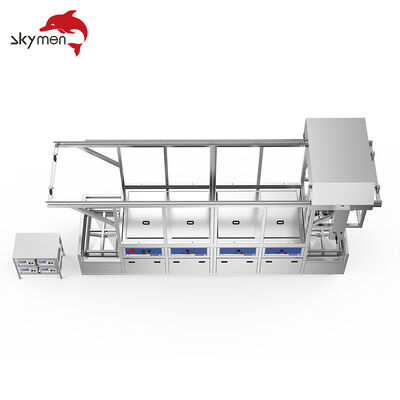

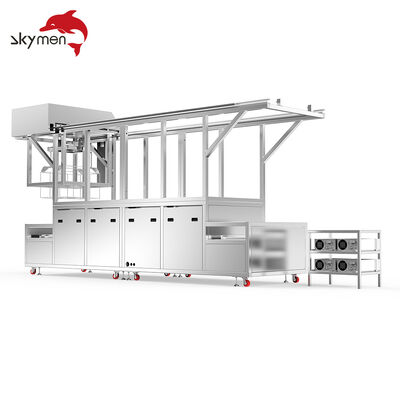

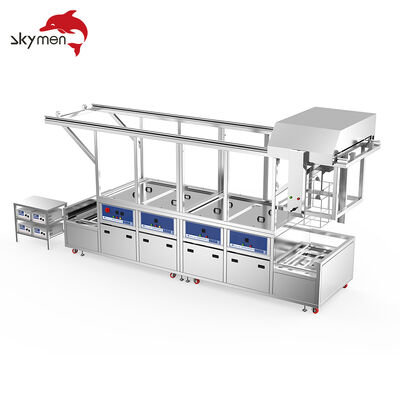

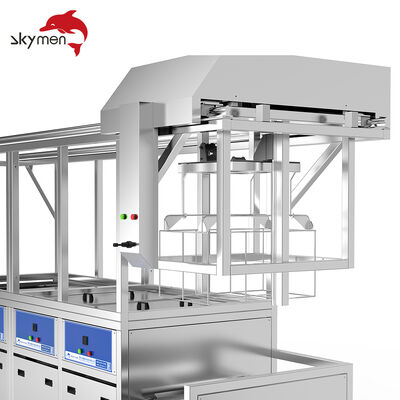

Semi-Automatic Multi-Tank Ultrasonic Cleaning Machine
Industrial cleaning system with motorized lift and transfer system for enhanced efficiency and reduced manual handling.
Product Overview
The Skymen Semi-Automatic Motorized Ultrasonic Cleaning System improves cleaning efficiency and reduces manual handling in industrial production environments. Equipped with an electric lifting and horizontal transfer system, it enables smooth basket movement between cleaning stages for more efficient and consistent cleaning processes.
Key Features
Motorized Lift & Transfer System
Electric lifting and transfer mechanism automatically moves baskets between tanks, reducing manual labor and improving production efficiency.
Multi-Stage Cleaning Process
Independent cleaning, rinsing, and drying tanks allow each process to operate separately, ensuring stable cleaning performance and preventing cross-contamination.
Optional Spray Cleaning System
Fixed or movable spray units can be added before or after ultrasonic cleaning to remove heavy oil, chips, and surface contaminants for improved cleaning results.
Multiple Ultrasonic Frequencies Available
- 28kHz - Heavy-duty cleaning
- 40kHz - General industrial cleaning
- 68kHz - Fine cleaning applications
- 80kHz - Precision components
- 120kHz - Ultra-precision cleaning
Suitable for a wide range of workpieces and contamination levels.
Intelligent Ultrasonic Generator
Advanced ultrasonic generators feature automatic frequency tracking, overcurrent protection, overheat protection, and no-load protection, ensuring stable and reliable operation during continuous production.
Hot-Air Circulation Drying System
Optimized airflow design delivers fast and uniform drying performance while reducing energy consumption and improving productivity.
Three-Stage Filtration System
Circulation filtration system continuously removes oil contamination, metal particles, and suspended impurities, extending cleaning solution life and reducing operating costs.
Heavy-Duty SUS304 Construction
Manufactured from thick SUS304 stainless steel with precision argon welding for excellent corrosion resistance, superior structural strength, long service life, and reliable industrial performance.
Fully Customized Solutions
Machine configurations can be tailored according to your production requirements, including tank quantity and dimensions, ultrasonic power and frequency, cleaning process design, filtration systems, drying systems, loading capacity, transfer mechanism, and PLC control system.
Technical Specifications
| Model |
Capacity (L) |
Tank Size (mm) |
Ultrasonic Power |
Heating Power |
Drying Power (W) |
Frequency (kHz) |
Timer (H) |
| JTM-4024GPH | 38 | 500*300*250 | 600W*2 | 1500W*2 | 3000 | 28/40 | 1-99 |
| JTM-4036GPH | 53 | 500*350*300 | 900W*2 | 1500W*2 | 3000 | 28/40 | 1-99 |
| JTM-4048GPH | 77 | 550*400*350 | 1200W*2 | 3000W*2 | 3000 | 28/40 | 1-99 |
| JTM-4060GPH | 99 | 550*450*400 | 1500W*2 | 3000W*2 | 4500 | 28/40 | 1-99 |
| JTM-4061GPH | 96 | 800*300*400 | 1500W*2 | 3000W*2 | 4500 | 28/40 | 1-99 |
| JTM-4072GPH | 135 | 600*500*450 | 1800W*2 | 4500W*2 | 4500 | 28/40 | 1-99 |
| JTM-4096GPH | 175 | 700*500*500 | 2400W*2 | 6000W*2 | 6000 | 28/40 | 1-99 |
| JTM-4120GPH | 264 | 800*600*550 | 3000W*2 | 6000W*2 | 6000 | 28/40 | 1-99 |
| JTM-4144GPH | 360 | 1000*600*600 | 3600W*2 | 9000W*2 | 6000 | 28/40 | 1-99 |
| JTM-4216GPH | 540 | 1000*900*600 | 5400W*2 | 18000W*2 | 9000 | 28/40 | 1-99 |
| JTM-4288GPH | 960 | 1200*1000*800 | 7200W*2 | 24000W*2 | 12000 | 28/40 | 1-99 |
| JTM-4432GPH | 1500 | 1500*1000*1000 | 10800W*2 | 30000W*2 | 15000 | 28/40 | 1-99 |
Operational Benefits
Reduced Manual Handling
Higher Production Efficiency
Consistent Cleaning Quality
Lower Operating Costs
Flexible Process Configuration
Reliable Industrial Performance
Suitable for Batch Production
Customized for Different Industries
Why Choose Skymen?
With years of experience in industrial ultrasonic cleaning equipment manufacturing, Skymen provides complete customized cleaning solutions based on your workpieces, contamination types, cleanliness requirements, and production capacity. From standalone ultrasonic cleaners to fully integrated multi-stage cleaning systems, we help manufacturers achieve higher cleaning quality, greater efficiency, and lower operating costs.
