microcontroller.flexible circuit boards control, more secure & stable
Product Details:
|
Cleaning Type: | Industrial Ultrasonic Cleaner,Immersion / Soak | Industry Used: | Electronic Industry,Auto Industry,all Industry |
---|---|---|---|
Use: | Degreasing,Container / Bottle Cleaning,engineer Parts Cleaning,Sterilizing / Disinfecting | Cleaning Process: | Hot Water Cleaning,Solvent Cleaning |
Frequency: | 28KHz/40KHz | Fuel: | Electric |
High Light: | PLC Operating Skymen Ultrasonic Cleaner,SS Basket Skymen Ultrasonic Cleaner,77 Liter Ultrasonic Cleaning machine |

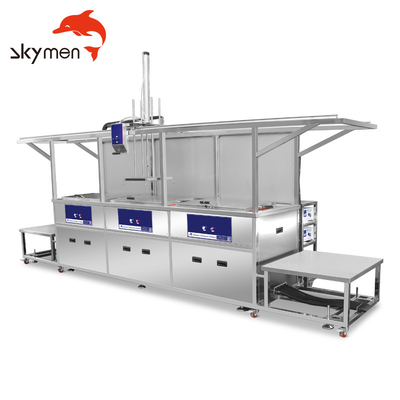

Ultrasonic Cleaning Machine's Fetures
-Fast and thoroughly cleaning
-Saving labor; time; detergent
-Loading and unloading table
-Convenient and practical with hydraulic lift
-No damage for cleaning the parts
-Removing dirt and dust easily
-With emergency stop switch
-SUS 304/SUS 316 tank material
-With water inlet/out let in suitable place
-With stainless steel basket
-Double/Multi frequency is available
Model No. | Inner tank size(mm or inch) | Capacity(Liter or gallon) | Frequency | Transducer (pcs) | Ultrasonic power (kw) | Heating power (kw) |
JTM-3036GH | 500x300x250mm / 20x12x10'' | 38L / 10Gal | 28/40KHZ | 36pcs | 1.8kw | 6kw |
JTM-3054GH | 500x350x300mm / 20x14x12'' | 53L / 14Gal | 28/40KHZ | 54pcs | 2.7kw | 6kw |
JTM-3072GH | 550x400x350mm / 22x16x14'' | 77L / 19.9Gal | 28/40KHZ | 72pcs | 3.6 kw | 12kw |
JTM-3090GH | 550x450x400mm / 22x18x16'' | 99L / 26.1Gal | 28/40KHZ | 90pcs | 4.5KW | 12KW |
JTM-3108GH | 600X500X450mm/24x20x18'' | 135L/35.7Gal | 28/40KHZ | 108pcs | 5.4KW | 18KW |
JTM-3144GH | 700X500X500mm/28x20x20'' | 175L/46.3Gal | 28/40KHZ | 144pcs | 7.2KW | 24KW |
JTM-3180GH | 800X600X550mm/32x24x22'' | 264L/46.3Gal | 28/40KHZ | 180pcs | 9KW | 24KW |
JTM-3216GH | 1000X600X600mm/39x24x24'' | 360L/46.3Gal | 28/40KHZ | 216pcs | 10.8KW | 36KW |
JTM-3252GH | 1500X700X400mm/59x28x16'' | 420L/111Gal | 28/40KHZ | 252pcs | 12.6KW | 60KW |
JTM-3288GH | 1200X500X800mm/47x20x32'' | 480L/127Gal | 28/40KHZ | 288pcs | 14.4KW | 60KW |
JTM-3324GH | 1000X900X600mm/39x35x24'' | 540L/142.8Gal | 28/40KHZ | 324pcs | 16.2KW | 72KW |
JTM-3360GH | 1000X800X800mm/39x32x32'' | 640L/169.3Gal | 28/40KHZ | 360pcs | 18KW | 84KW |
JTM-3396GH | 1000X1000X800mm/39x39x32'' | 800L/211.6Gal | 28/40KHZ | 396pcs | 19.8KW | 96KW |
JTM-3432GH | 1200X1000X800mm/47x39x32'' | 960L/254Gal | 28/40KHZ | 432pcs | 21.6KW | 96KW |
Ultrasonic Cleaning Machine's Details
1. Operation Panel - One-button start, easy and convenient.
2. Stainless Steel Housing - Good corrosion and heat resistance.
3. Flexible Casters - Convenient for machine movement.
4. Cleaning basket - Stainless steel cleaning basket.

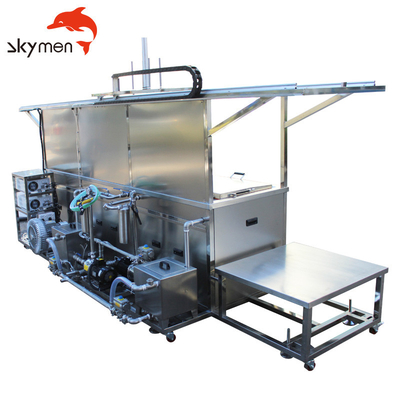

Ultrasonic Cleaning Machine's Cleaning Process:
1. Put the parts in 1st tank for ultrasonic cleaning with filter function, cleaning media is tap water with detergent, cleaning time is about 15 minutes
2. After 15 minutes, put the parts in 2nd tank for rinsing, meida is only tap water, soaking the parts in 2nd tank about 5 minutes
3. After 5 minutes, put the parts in 3rd tank for rinsing, meida is only tap water, soaking the parts in 3rd tank about 5 minutes
4. The last cleaning prcocess for drying tank about 5-10minutes
5. With a set of manual translation system with hydraulic lift from 1st tank to last drying tank
Ultrasonic Cleaning Machine's FAQ
1. How about after sales services of ultrasonic cleaning machine?
1 Year warranty for Forall ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
2. What are the advantages of ultrasonic cleaning than traditional cleaning methods?
minimize the use of manual labor
make cleaning and degreasing without the use of organic solvents
clean hard to reach areas of products and remove all types of dirt
shorten the processes such as extraction, dispersion, purification, chemical reactions
eliminates costly mechanical and chemical cleaning of heat exchangers
3. What frequency of ultrasonic cleaning machine is better for my parts?
Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
Tag: ultrasonic cleaning device, automotive ultrasonic cleaner, ultrasonic washing machine, ultrasonic cleaning machine.
