Specification
| Model |
JP-301ST |
| Tank Volume |
96L |
| Tank Material |
Stainless Steel 304 (2mm thickness) |
| Inner Tank Size |
800*300*400mm(L*W*H) |
| Frequency |
28 / 40KHz for option |
| Transducers |
30pcs |
| Ultrasonic Power |
1500W |
| Heating Power |
3000W |
| Heating Temp |
20-95℃ adjustable |
| Timer |
1-99minutes adjustable |
| Generator |
Built-in |
| Unit Size |
940*420*800mm(L*W*H) |
| Power Supply |
AC 100 ~ 120V, 50 / 60Hz, AC 220 ~ 240V, 50 / 60 Hz |

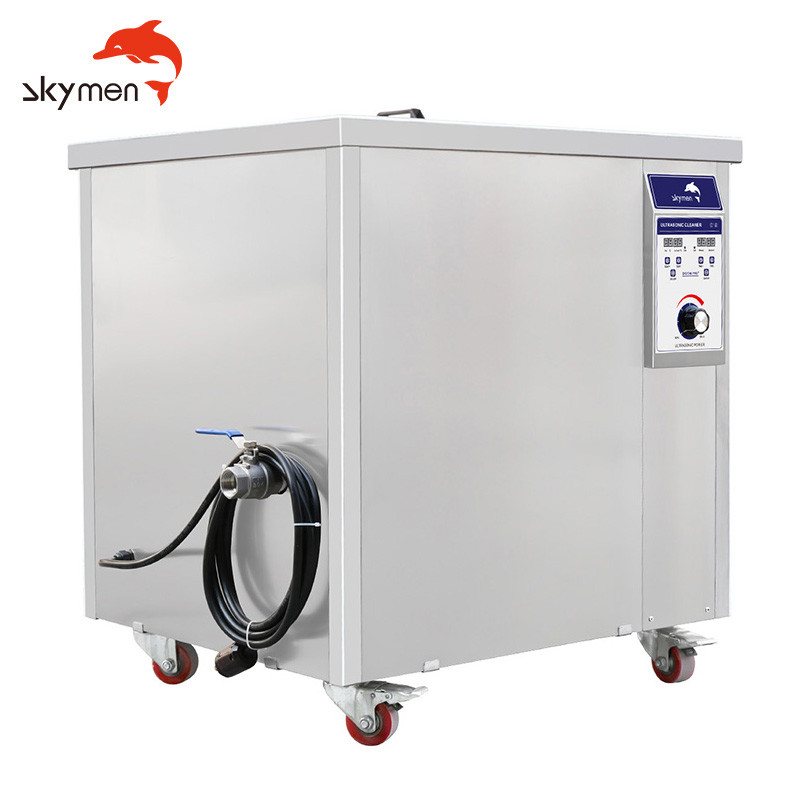

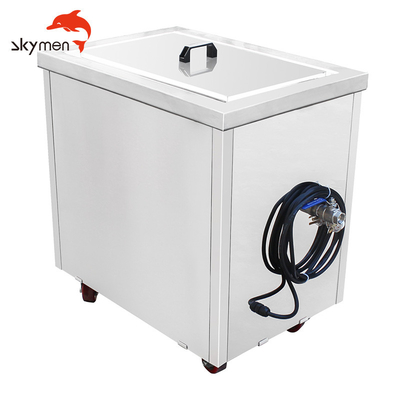

Images
How does Ultrasonic Cleaner work?
Features of Skymen Ultrasonic Cleaner
-
Ultrasonic Transducers – Generates high-frequency sound waves (typically 28/40 kHz for option) to create microscopic bubbles (cavitation) that clean surfaces thoroughly.
-
Heating Element – Includes a heater to warm the cleaning solution,20-95℃ adjustable, improving cleaning efficiency, especially for greasy or stubborn contaminants.
-
Timer Control – Allows users to set cleaning durations (usually 1–99 minutes) for optimal results without overexposing items.
-
Stainless Steel Tank – Skymen ultrasonic cleaners have a durable, corrosion-resistant tank to hold cleaning solutions and withstand long-term use.
Application Fields
Machinery industry: Removing rust and grease for machinery Parts, Engine, carburetor, filter and automobile parts cleaning. Especially in the railway industry, removing oil, rust and dust for air condition and other train parts.
Surface treatment industry: Degreasing derusting before plating, Ion plating before cleaning, phosphating, remove carbon deposition, oxidation and polishing paste
Instrument industry: precision parts cleaning
Electronic industry: remove Rosin and welding spot for p.c.b. boards, machinery parts cleaning
Medical industry: medical apparatus and instruments cleaning and disinfecting
Semiconductor industry: Semiconductor chips etc.
Jewellery & Watch industry: Remove oil sludge, dust, oxidation layer, polishing paste. Etc.
Chemical biology industry: labwares’ cleaning and descaling
Optics industry: Optical vessels oil, sweat and dust removal
Textile printing and dyeing industry: textile spindle, spinneret plate cleaning.
Petroleum chemical industry: Metal screen cleaning, chemical containers and switchs’ cleaning
Cleaning Effect
After-sales Service:
For all Skymen products, we provide:
- test at least 2 days before out of factory,
- take photos for you confirm all the details
- 1 year warranty and lifetime technical supports, free parts will be sent for any quality problems during warranty time.
COMPANY STRENGTH
Skymen is a leading manufacturer and national high-tech enterprise, was founded in 2007. There are 2 factories of Skymen, one is located in Shenzhen, closed to HongKong. And the other is located in Shaoguan, Guangdong province, China. Over the years, we have been focusing on the research and development of ultrasonic equipment and cleaning solutions, with more than 350 employees and a factory area of 39,000 square meters.
