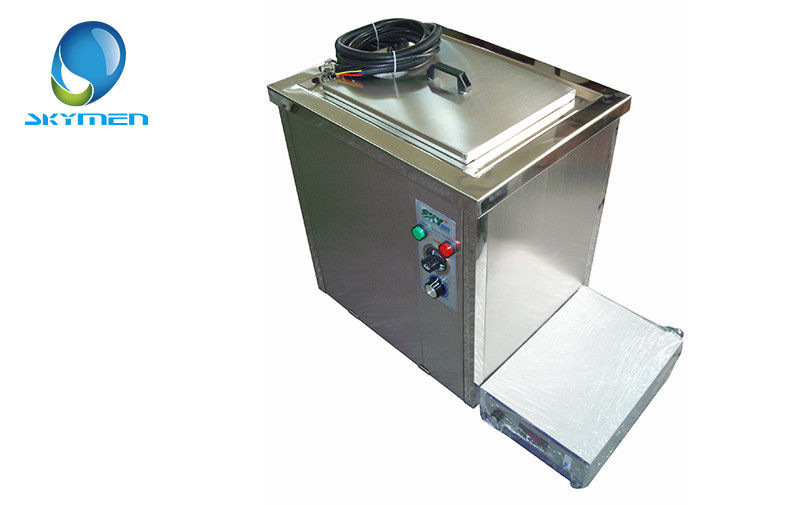

Large Ultrasonic Cleaning Machine / Automotive Ultrasonic Cleaner For Cylinder

Large Ultrasonic Cleaning Machine / Automotive Ultrasonic Cleaner For Cylinder
Large Ultrasonic Cleaning Machine / Automotive Ultrasonic Cleaner For Cylinder

Large Image :  Large Ultrasonic Cleaning Machine / Automotive Ultrasonic Cleaner For Cylinder

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE
Model Number: JTS-1048
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1sets/ wooden case
Delivery Time: In Stock
Payment Terms: Paypal / T/T / western Union
Supply Ability: 600pcs per month
Price:: nogotiation

Large Ultrasonic Cleaning Machine / Automotive Ultrasonic Cleaner For Cylinder

Description
Product Name: Ultrasonic Cleaner Application: Engine And Cylinder Cleaning
Capacity: 198 Liter Ultrasonic Power: 2400W
Ultrasonic Frequency: 28/40kHz Timer: 1~99 Hours
Feature: Power Adjustable Standard: CE
High Light:

dual frequency ultrasonic cleaner

,

ultrasonic washing machine


Large Capacity Ultrasonic Cleaning Machine For Cylinder



Applications:

Ultrasonic cleaneing machine for cylinder head clean with high efficiency.
Tank size can be made based on customer requirement.


Description:

  1. Adjustable ultrasonic power
  2. Original BLT type transducer
  3. SUS304/316L tank
  4. Adaptable for continuous operation
  5. Adjustable thermo controller
  6. Adjustable ultrasonic power
  7. With separate control ultrasonic electronic generator
  8. Sweep mode control available
  9. Digital timer control
  10. Boost mode& oil skimmer upon client’s requirement
  11. Pressure pump and filter system are available

Specifications:


Model

JTS-1048

Tank’s working dimension (mm)

600*550*600(L*W*H)

Overall dimension (mm)

690*740*950(L*W*H)

Tank’s total capacity

198L

Tank’s material

SUS304 / SUS316

In-tank surface finishing

Hard-Cr Plating Treatment ( 20+ microns )

Housing’s material

Stainless steel

Ultrasonic frequency

28kHz / 40kHz

Ultrasonic transducer

48pcs

Ultrasonic output power (MAX.)

2400W

Electronic generator

KG2400

Heater’s (hot plate) power

6KW



Skymen JTS Series:


Skymen
Model No.

JTS-1030

JTS-1036

JTS-1060

JTS-1072

JTS-1108

JTS-1144

TANK
DIMENSION(mm)

500x406x500

500x460x550

700x650x650

1000x600x600

1000x900x600

1200x1000x800

OVERALL
DIMENSION(mm)

680x586x850

680x640x900

900x850x1000

1200x800x950

1240x1140x950

1440x1240x1150

MAX. CAPACITY

101L

126L

295L

360L

540L

960L

CONSTRUCTION
CASE

SUS 304 (MIRROR SHINING IMAGE AVAILABLE)

CONSTRUCTION
TANK

SUS 304 / 316L

ULTRASONIC POWER(MAX.)

1500W

1800W

3000W

3600W

5400W

7200W

ULTRASONIC
FREQUENCY

28kHz/40kHz/68kHz/80kHz/120kHz

MAX. HEATING
 TEMP.

20~80C ADJUSTABLE

HEATING POWER

3KW

4.5KW

6KW

9KW

12KW

24KW

TIMER

0~30min adjustable

DRAIN

¾" VALVE

LID & BASKET

TAKE-OFF / STRUT LID; SUS 304

CLEANING TANK’S
POWER
REQUIREMENT

AC220V/380V/415V/440V. 3

GENERATOR’S
POWER
REQUIREMENT

AC110V/ 220V / 240V, 1

GENERATOR

WITH SWEEP MODE AND REMOTE CONTROL

FEATURES

MULTI-DIRECTION CASTORS WITH BRAKE;
1 YEAR WARRANTY

Optional

FILTRATION SYSTEM (PUMP, SUS FILTER,
OIL CATCH CAN)
