Product Details:
|
| Optional: | Rising Tank, Drying Tank | Frequency: | 28khz And 40kzh |
|---|---|---|---|
| Ultrasonic Power: | Customized | Timer: | 1-99 Hours Adjustable |
| Special: | Dual Frequency | Warranty: | 1 Year |
| High Light: | dual frequency ultrasonic cleaner,ultrasonic washing machine |
||

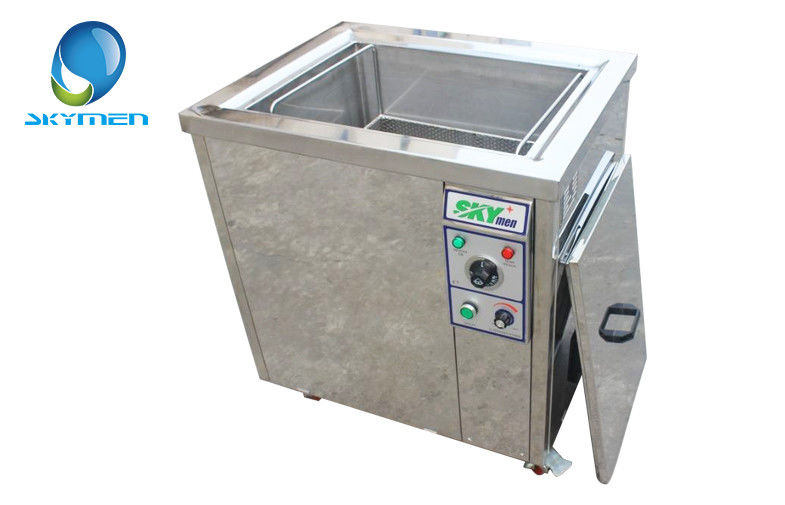

Double Frequency Ultrasonic Cleaner 28khz And 40khz 120L with sus basket JTS-1036
Dual frequency 25khz+45khz; 28khz+40khz; 40khz+80khz, etc. are available.
The machine is customized and certified with CE.
If need, rising tank or drying tank is optional based on customer's needs.
Applications:
Skymen Dual frequency ultrasonic cleaner can be use for car parts washing, engine block degrease, radiator
clean, also can clean electronic parts. No damage to object surface and improve cleaning efficiency.
Brief introducton:
The machine can be effectively used to clean car parts, engine block, cylinder heads, oil filter, etc.
--Tank size of the machine can be customized according to your requirements.
--Frequency can be 28khz, 40kzh, 80khz, 28+40khz, 25+40khz, 40+80khz, etc. according to the cleaning objectives.
--For heavy duty oil removing, oil filter system is suggested to recycle the solvent and prevent the second pollution.
Description:
Specifications:
Model | JTS-1036 |
Tank’s working dimension (mm) | 500x460x550 (L*W*H) |
Overall dimension (mm) | 710x640x770 (L*W*H) |
Tank’s total capacity | 126L |
Tank’s material | SUS304 / SUS316 |
In-tank surface finishing | Hard-Cr Plating Treatment ( 20+ microns ) |
Housing’s material | Stainless steel |
Ultrasonic frequency | 28kHz & 40kHz / 40kHz & 80kHz |
Ultrasonic transducer | 36pcs |
Ultrasonic output power (MAX.) | 1800W |
Electronic generator | KG1800 |
Heater’s (hot plate) power | 4.5KW |
Package included:
1 x ultrasonic tank
1 x sus lid
1 x sus basket
1 x power cord
1 x English instruction manual
Competitive Advantage:
Skymen JTS Series:
Skymen Model No. | JTS-1030 | JTS-1036 | JTS-1060 | JTS-1072 | JTS-1108 | JTS-1144 | ||||
TANK | 500x406x500 | 500x460x550 | 700x650x650 | 1000x600x600 | 1000x900x600 | 1200x1000x800 | ||||
OVERALL | 680x586x850 | 680x640x900 | 900x850x1000 | 1200x800x950 | 1240x1140x950 | 1440x1240x1150 | ||||
MAX. CAPACITY | 101L | 126L | 295L | 360L | 540L | 960L | ||||
CONSTRUCTION | SUS 304 (MIRROR SHINING IMAGE AVAILABLE) | |||||||||
CONSTRUCTION | SUS 304 / 316L | |||||||||
ULTRASONIC POWER(MAX.) | 1500W | 1800W | 3000W | 3600W | 5400W | 7200W | ||||
ULTRASONIC | 28kHz/40kHz/68kHz/80kHz/120kHz | |||||||||
MAX. HEATING TEMP. | 20~80C ADJUSTABLE | |||||||||
HEATING POWER | 3KW | 4.5KW | 6KW | 9KW | 12KW | 24KW | ||||
TIMER | 0~99hours adjustable | |||||||||
DRAIN | ¾" VALVE | |||||||||
LID & BASKET | TAKE-OFF / STRUT LID; SUS 304 | |||||||||
CLEANING TANK’S | AC220V/380V/415V/440V. 3pahses | |||||||||
GENERATOR’S | AC110V/ 220V / 240V, 1phase | |||||||||
GENERATOR | WITH SWEEP MODE AND REMOTE CONTROL | |||||||||
FEATURES | MULTI-DIRECTION CASTORS WITH BRAKE; | |||||||||
Optional | FILTRATION SYSTEM (PUMP, SUS FILTER, OIL CATCH CAN) | |||||||||
Warranty & Shipment:
Warranty: 1 year and tech support for life
Shipment: 1unit/wooden case
Shipping by sea or by air is suggested
