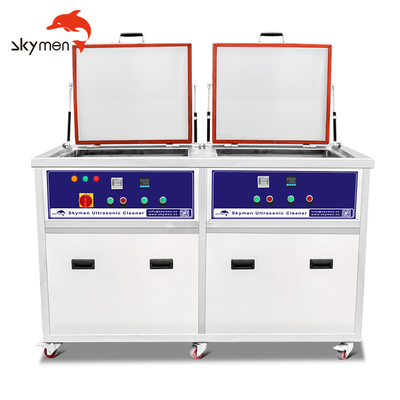

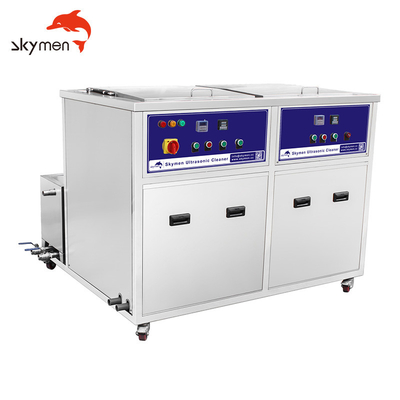

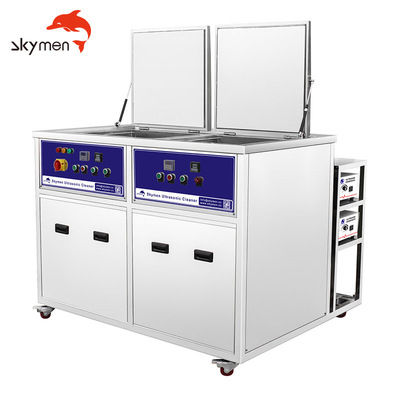

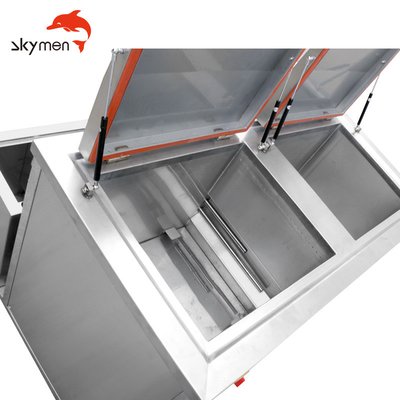

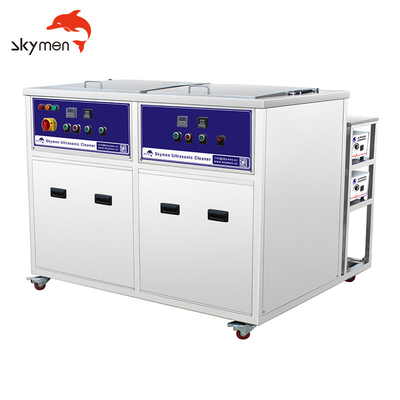

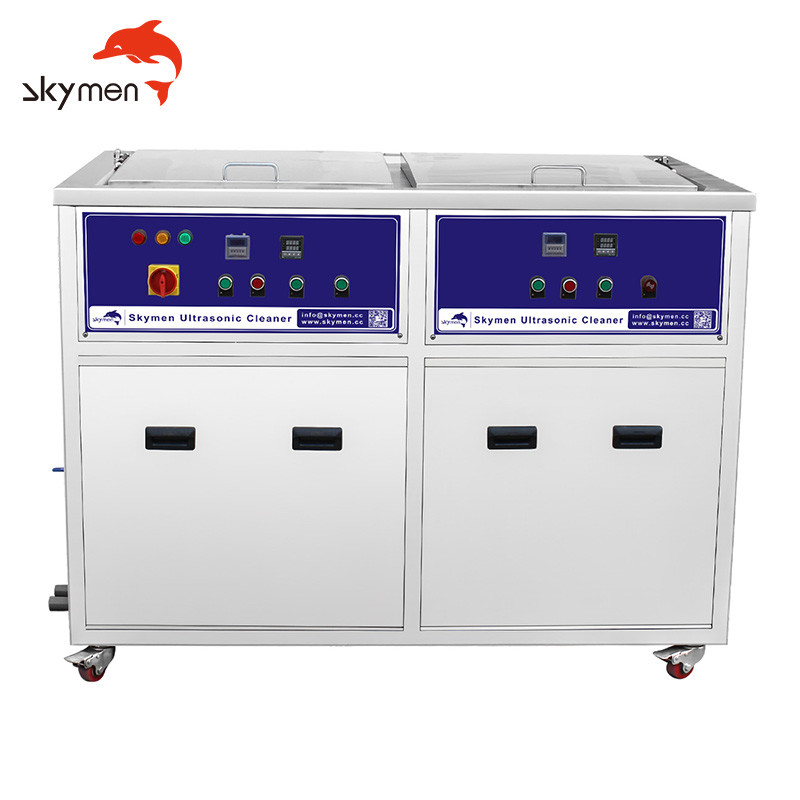

Stainless Steel 28khz Ultrasonic Washing Machine For Aircrafts Parts

Composition of this machine:

1st tank: Ultrasonic cleaning + hot water + filtration cycyle system

2nd tank: Hot air drying tank

Ultrasonic Cleaner's Function:

1. Removes small particulate and adhering contamination from parts where entrapment areas limit or restrict access through mechanical means;
2. Ultrasonic parts cleaners remove dirt, oils, lubricants, carbon, and other types of grime that build up on engines and mechanical parts. Grooves, internal passageways, seals, and other hard to reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts. Carburetors, pistons, cylinder heads, aluminum parts, and brake calipers are a few examples of components that are cleaned thoroughly with no manual scrubbing in an ultrasonic cleaner;
3. The cleanliness of your products and components directly affects the safety of your crew —ultrasonic cleaning technology contributes to your efforts to maximise the safety and reliability of aerospace components while achieving optimal cleanliness standards.

4. Ultrasonic Cleaner's Model and Specification

   Model	JP-2024GH	JP-2036GH	JP-2072GH
   Clean tank size	550*400*350	600*500*450	1000*600*600
   Dry tank size	550*400*350	600*500*450	1000*600*600
   Tank capacity	77L each	135L each	360L each
   Transducers	24	36	72
   Clean tank Ultrasonic power	1200W	2400W	3600W
   Dry tank Ultrasonic power	0	0	0
   Clean tank Heating power	3000W	4500W	9000W
   Dry tank Heating power	2600W	3000W	4500W
   Ultrasonic frequency	28KHZ/40KHZ
   Tank material	304/316SUS
   Tank thickness	2MM
   Timer	1S-99hours adjustable/Normally open
   Heater	20-95℃ adjustable
   Drain valve	1 inch
   Basket & Lid	standard equipped
   Machine Voltage	AC 220V/380V, 3phases
   Generator voltage	AC 110V/220V, 1phase
   Features	1.with filtration system 2.with casters with brake 3.1 year warranty & tech support for life
