Product Details:
|
| Material: | SUS 304/316 | Tank Capacity: | 800L |
|---|---|---|---|
| Tank Size: | 1000X100X800 Mm | Power Supply: | AC 220V 3 Phase 50Hz / AC 380V, 3 Phase 50Hz |
| Transducer: | 132pcs | Model: | JP-1132ST |
| High Light: | Hot Water Ultrasonic Washer,Large Tank Industrial Ultrasonic Cleaner,800L Industrial Ultrasonic Cleaner |
||
24h Long Working with Heater Hot Water Ultrasonic Washer High Quality Single Large Tank Industrial Ultrasonic Cleaner 800L
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-1132ST |
| Ultrasonic power | 6600W (108pcs transducers) |
| Frequency | 40KHz / 28KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Heating power | 24000W |
| Tank capacity | 800L |
| Timer | Digital 1-99 min adjustable |
| Heater | 0~80℃ |
| Voltage | AC 220V, 3phase 50Hz AC 380V, 3phase 50Hz |
| Tank size | 1000X1000X800mm |
| Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons ,size could be customized

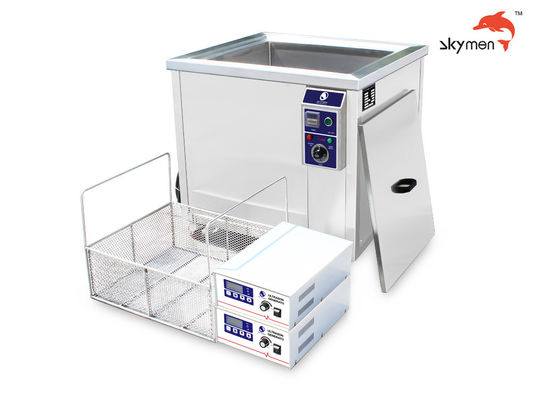

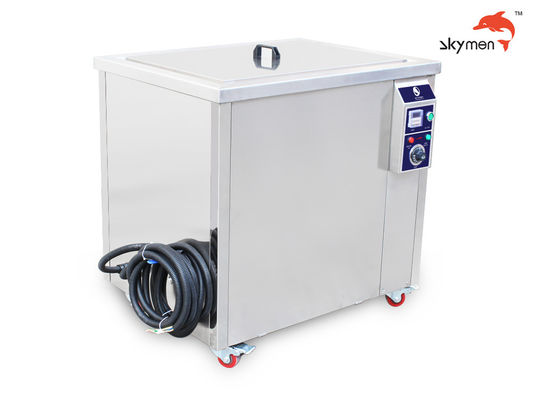

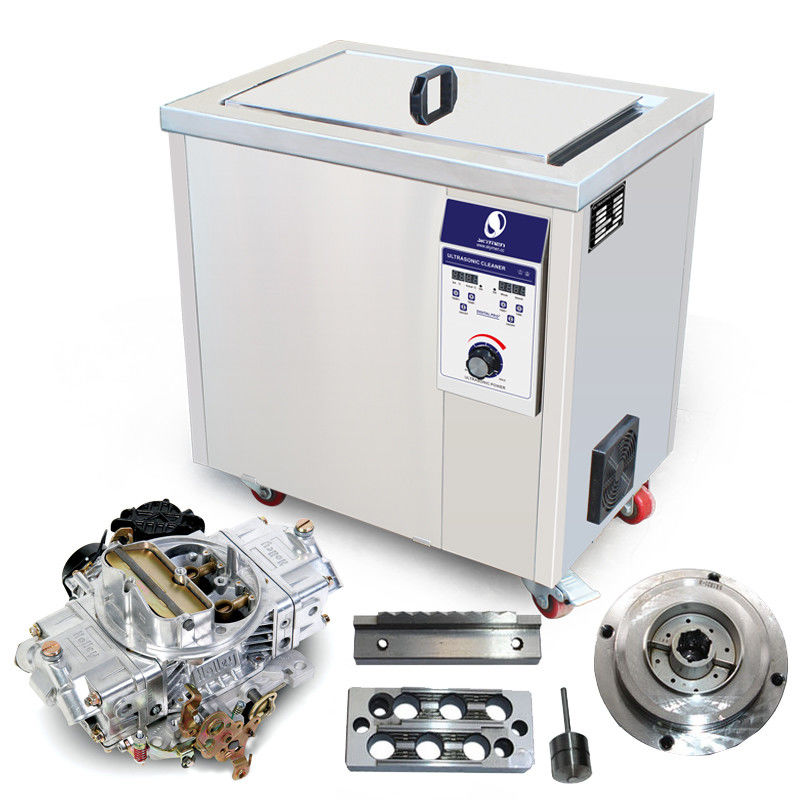

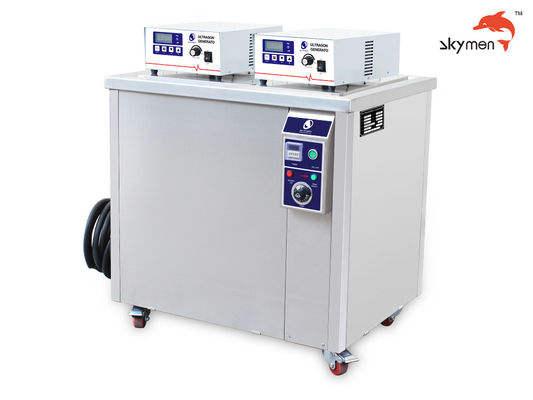

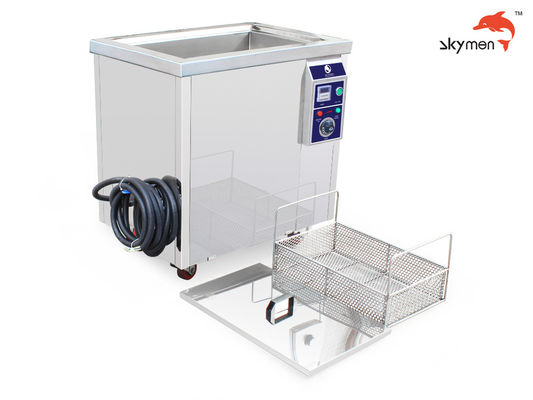

Images of this model:
The whole set machine including:
1* cleaning machine
1* lid
1* basket
Similar models with different tank volume:
| Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
| L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
| JP-120ST | 500X300X250 | 38L | 600W | 1500W | 12pcs |
| JP-180ST | 500X350X300 | 53L | 900W | 1500W | 18pcs |
| JP-240ST | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
| JP-300ST | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
| JP-301ST | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
| JP-360ST | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
| JP-480ST | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
| JP-600ST | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
| JP-720ST | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
| JP-1108ST | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
| JP-1144ST | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
How does Ultrasonic Cleaner work?
About SKYMEN ultrasonic cleaner :
We are a factory located in Shenzhen since 2007 with over 200 employees, dedicatedly manufacture a wide range of ultrasonic cleaner, main customers from industry for tools cleaning, hardware cleaning and other metal parts cleaning.
Skymen is our brand.And we get BSCI,ISO9001,CE,RoHS,REACH,FCC,KC,etc.
OEM/ODM/Customized machine
Skymen have 10 years experience in specially designing ultrasonic cleaner according to customer's requirement.
Package by polywooden case:
Before and after :
