Laboratory Chemical Industrial Ultrasonic Cleaning Machine 135 liters Explosion Proof

Name: Laboratory Chemical Industrial Ultrasonic Cleaning Machine 135 liters Explosion Proof
Brand: Skymen
SKU: JTS-1036Z
Price: 1500 USD
Availability: InStock
Rating: 4.8 (135 reviews)

All Products

Industrial Ultrasonic Cleaner
(500)

Automatic Ultrasonic Cleaner
(28)

Benchtop Ultrasonic Cleaner
(261)

Ultrasonic Cleaning Machine
(246)

Spray Cleaning Machine
(10)

Kitchen Soak Tank
(109)

Submersible Transducer
(93)

Household Ultrasonic Cleaner
(202)

Digital Ultrasonic Cleaner
(179)

Ultrasonic Gun Cleaner
(16)

Ultrasonic Blind Cleaner
(21)

Ultrasonic Golf Club Cleaner
(23)

Tire Cleaning Machine
(9)

Anilox Roller Cleaning Equipment
(31)

Mechanical Ultrasonic Cleaner
(57)

Best Products

Compressor Parts Industrial Ultrasonic Cleaner

2400W FCC 175L Double Tanks Ultrasonic Cleaner For Electronic Parts industrial ultrasonic cleaner

34.2 KW Industrial Ultrasonic Cleaning machine

Certification

Customer Reviews

I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Laboratory Chemical Industrial Ultrasonic Cleaning Machine 135 liters Explosion Proof

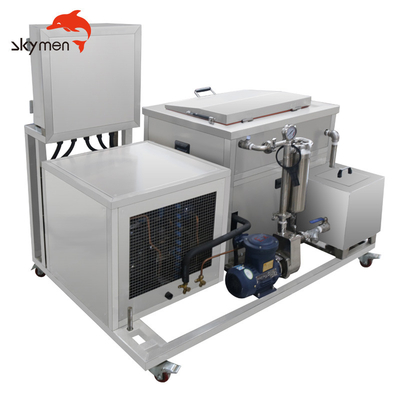

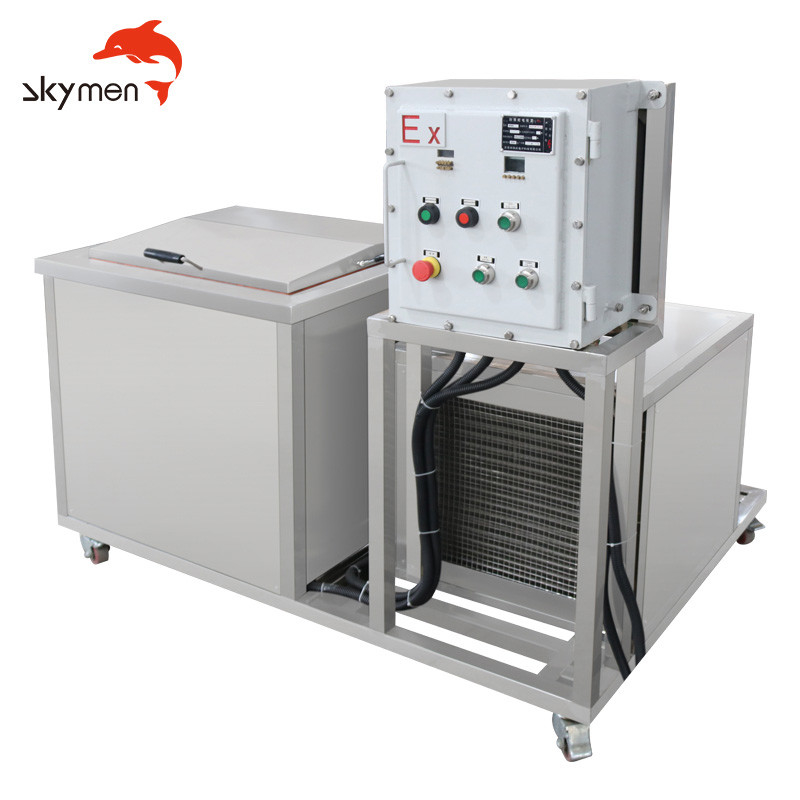

Large Image : Laboratory Chemical Industrial Ultrasonic Cleaning Machine 135 liters Explosion Proof

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Skymen
Certification:	RoHS, CE, FCC, SGS
Model Number:	JTS-1036Z

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1500USD / UNIT
Packaging Details:	Wooden case
Delivery Time:	In Stock
Payment Terms:	T/T
Supply Ability:	800 pcs per month

Contact Now

Laboratory Chemical Industrial Ultrasonic Cleaning Machine 135 liters Explosion Proof

Description

Technology:	T5	Cleaning Media:	Alcohol
Explosion-proof:	Yes	Cooling System:	Option
Oil Skimmer:	Available	Cleaning Tank:	600x500x450mm
Capacity:	135 Liters
High Light:	single tank Industrial Ultrasonic Cleaning Machine , 135 liters industrial ultrasonic cleaning machine , 135 liters Industrial Ultrasonic Cleaner

Laboratory Explosion Proof Chemical Ultrasonic Bath with Cooling System Ultrasonic Cleaning Machine

Skymen industrial single-tank refrigeration explosion-proof ultrasonic cleaning machine equipment uses a combination of air compressor and refrigeration coil to control the temperature, so that the temperature in the ultrasonic cleaning tank is kept within the solvent safety range. Secondly, the installation of explosion-proof electrical cabinets further prevents the ultrasonic cleaning machine from burning or exploding during the cleaning process.

Application for different items

Industry	Cleaning objects
jewelry	Jewelry, diamond, gold, silver products,
machinery	Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
electronics	PCB board, electronic parts, TV parts, computer parts
Auto industry	engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
Dental& Medical	dental tools, medical tools, injector, surgery tools, dropper, glass container
Plating& painting	polishing parts, SUS cutter, tableware, plating
Food industry	Oven tray, boiler, bottles, bottle cap, filters
Optical& watch maker	optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand
textile	spinneret plate, rubber parts, plastic molds, toy
others	seal, flapper, coins, pottery, bank card, IGBT


			Specifications of ultrasonic cleaner

			Model name

			JTS-1030Z

			Working vessel Dimensions

			550x450x400(LxWxH).

			Cleaning tank capacity

			96 liters

			Material

			all-stainless steel 304.

			Total ultrasonic energy

			max. 4.5 kW

			Ultrasonic generator

			1pcs, explosive proof generator

			Ultrasonic technology

			explosive proof

			Transducer frequency

			28 kHz or 40 kHz

			Ultrasonic transducer power

			ultrasonic power 30x50W = 1.5 kW.

			Ultrasonic mode

			Power adjustable

			Heater

			6 kW, constant .temperature approx. 20-95°C, in combination with ultrasonic power

			Oil skimmer and separator

			On behalf of removal of floating contaminants

			Overflow tank

			On behalf of maintaining the right liquid in cleaning vessel

			Cover

			for covering the cleaning tank top, hydraulically operated

			Leveling

			4 manually adjustable legs for system leveling

			Basket

			on behalf of safe positioning of parts; max. permissible weight 15 tonnes

			Generator

			1 set, explosive proof

			Control

			by means of a single electric box.

			Power supply

			3 phase power

			Shipment

			By air, by sea

Characteristics

Ultrasonic activity operates on similar principles to sound waves. As electrical energy is transferred to mechanical energy, it causes positive and negative pressure waves that generate microscopic bubbles that form on all surfaces throughout the component being cleaned. But these are no ordinary bubbles. The air bubbles in the fluid in ultrasonic cleaning equipment implode when they come into contact with a solid surface. This effect is known as cavitation. When the air bubbles implode, a powerful jet of fluid is created which comes into contact with the surfaces of the objects being cleaned at extremely high pressures and temperatures. This dynamic effect separates contaminants from all surfaces without damaging the object in any way. These micro-jet shock waves, combined with special ultrasonic cleaning solvents, remove bitumen, heavy oils, fats lime scale deposits and other (chemical) waste products in refineries much faster and more thoroughly than conventional methods (high pressure,steam, mechanical and chemical cleaning).

Usage: The system is developed to generate a faster and higher cleaning level by means of ultrasonic power, in combination with specialized chemicals (degradable). Due to the microscopic level a perfect inner and outer penetration will be created.

Application
Same Series explosive proof ultrasonic cleaner List











			Model
			Tank size
			Volume
			Transducer
			Ultrasonic Power
			Heating Power
			Explosive proof
			Cooling system


			L*W*H (mm)
			(L)
			(pcs)
			(W)
			(W)
			Yes/no
			Option


			JTS-120Z
			500X300X250
			38
			12
			600
			1500
			Yes
			Availale


			JTS-180Z
			500X350X300
			53
			18
			900
			1500
			Yes
			Availale


			JTS-240Z
			550X400X350
			77
			24
			1200
			3000
			Yes
			Availale


			JTS-300Z
			550X450X400
			99
			30
			1500
			4500
			Yes
			Availale


			JTS-301Z
			800X300X400
			96
			30
			1500
			4500
			Yes
			Availale


			JTS-360Z
			600X500X450
			135
			36
			1800
			4500
			Yes
			Availale


			JTS-480Z
			700X500X500
			175
			48
			2400
			6000
			Yes
			Availale


			JTS-600Z
			800X600X550
			246
			60
			3000
			6000
			Yes
			Availale


			JTS-720Z
			1000X600X600
			360
			72
			3600
			9000
			Yes
			Availale


			JTS-840Z
			1500X700X400
			420
			84
			4200
			15000
			Yes
			Availale


			JTS-960Z
			1200X500X800
			480
			96
			4800
			15000
			Yes
			Availale


			JTS-1108Z
			1000X900X600
			540
			108
			5400
			18000
			Yes
			Availale


			JTS-1120Z
			1000X800X800
			640
			120
			6000
			21000
			Yes
			Availale


			JTS-1132Z
			1000X1000X800
			800
			132
			6600
			24000
			Yes
			Availale


			JTS-1144Z
			1000X900X600
			960
			144
			7200
			24000
			Yes
			Availale


			JTS-1180Z
			1200X1000X1000
			1200
			180
			9000
			36000
			Yes
			Availale


			JTS-1192Z
			1200X1200X1000
			1440
			192
			9600
			36000
			Yes
			Availale


Cleaning Effect




Tag:

Contact Person: Miss. Nikki

Tel: 86-755-27094405

Fax: 86-755-27094405

Other Products

Multi Function Industrial Ultrasonic Cleaner 53L Large Single Tank

Ultrasonic freqquncy: 40khz / 28Khz

Tank Size: 500*350*300mm

Product: Ultrasonic cleaner

Tank capacity: 53 Liter / 14 Gallon

34.2KW Ultrasonic Cleaning Equipment For Turbo Blade Aerospace Component

Application: Clean Car parts

Tank size: 4000*1500*1000 (LxWxH)

ultrasonic max power: 34.2KW

Frequency: 28khz

Adjustable Timer Ultrasonic Washing Machine 360L 3600W For Ejector Pins

Model: JP-2072H

First tank volume: 360L

First tank size: 1000X600X600mm

Transducers: 72pcs; 50W of every transducer

AC220V 380V Ultrasonic Cleaner Washer 135L With Rinsing Filter Dryer

Model: JTS-3072GPH

First tank volume: 135L

First tank size: 600X500X450mm

Transducers: 36pcs in 1st tank; 36pcs in 2nd tank

2mm Heating Ultrasonic Parts Cleaner 99L Four Tanks FCC For Automative

Model: JP-4060GH

Tank Volume: 99L

Ultrasonic Power: 3000W

Heating Power: 9000W

Specifications of ultrasonic cleaner
Model name	JTS-1030Z
Working vessel Dimensions	550x450x400(LxWxH).
Cleaning tank capacity	96 liters
Material	all-stainless steel 304.
Total ultrasonic energy	max. 4.5 kW
Ultrasonic generator	1pcs, explosive proof generator
Ultrasonic technology	explosive proof
Transducer frequency	28 kHz or 40 kHz
Ultrasonic transducer power	ultrasonic power 30x50W = 1.5 kW.
Ultrasonic mode	Power adjustable
Heater	6 kW, constant . temperature approx. 20-95°C, in combination with ultrasonic power
Oil skimmer and separator	On behalf of removal of floating contaminants
Overflow tank	On behalf of maintaining the right liquid in cleaning vessel
Cover	for covering the cleaning tank top, hydraulically operated
Leveling	4 manually adjustable legs for system leveling
Basket	on behalf of safe positioning of parts; max. permissible weight 15 tonnes
Generator	1 set, explosive proof
Control	by means of a single electric box.
Power supply	3 phase power
Shipment	By air, by sea

Model	Tank size	Volume	Transducer	Ultrasonic Power	Heating Power	Explosive proof	Cooling system
Model	LWH (mm)	(L)	(pcs)	(W)	(W)	Yes/no	Option
JTS-120Z	500X300X250	38	12	600	1500	Yes	Availale
JTS-180Z	500X350X300	53	18	900	1500	Yes	Availale
JTS-240Z	550X400X350	77	24	1200	3000	Yes	Availale
JTS-300Z	550X450X400	99	30	1500	4500	Yes	Availale
JTS-301Z	800X300X400	96	30	1500	4500	Yes	Availale
JTS-360Z	600X500X450	135	36	1800	4500	Yes	Availale
JTS-480Z	700X500X500	175	48	2400	6000	Yes	Availale
JTS-600Z	800X600X550	246	60	3000	6000	Yes	Availale
JTS-720Z	1000X600X600	360	72	3600	9000	Yes	Availale
JTS-840Z	1500X700X400	420	84	4200	15000	Yes	Availale
JTS-960Z	1200X500X800	480	96	4800	15000	Yes	Availale
JTS-1108Z	1000X900X600	540	108	5400	18000	Yes	Availale
JTS-1120Z	1000X800X800	640	120	6000	21000	Yes	Availale
JTS-1132Z	1000X1000X800	800	132	6600	24000	Yes	Availale
JTS-1144Z	1000X900X600	960	144	7200	24000	Yes	Availale
JTS-1180Z	1200X1000X1000	1200	180	9000	36000	Yes	Availale
JTS-1192Z	1200X1200X1000	1440	192	9600	36000	Yes	Availale
