Product Details:
|
| Material: | SUS 304/316 | Tank Capacity: | 2400Liter |
|---|---|---|---|
| Tank Size: | 2000X1200X1000 Mm | Frequency: | 28/40KHz |
| Power Supply: | 380V / 220V 3 Phase | Max Power: | 72000W |
| High Light: | SUS304 Housing Industrial Ultrasonic Cleaner,Petroleum Extraction Machine Industrial Ultrasonic Cleaner,2400L large industrial ultrasonic cleaner |
||

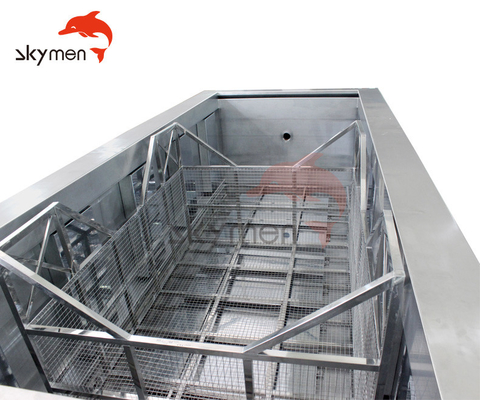

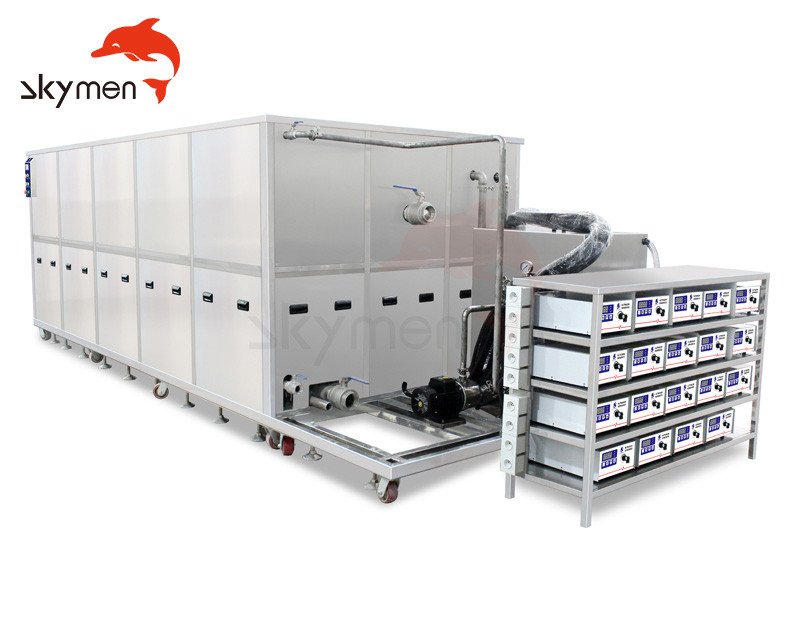

2400L JP-1360S Industrial Ultrasonic Cleaner for Petroleum Extraction
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-100S |
| Ultrasonic power | 0-18000W Adjustable power |
| Frequency | 28/40KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Heating power | 54000W |
| Tank capacity | 2400L |
| Timer | 0-99hours adjustable |
| Heater | Room temperature~95℃ |
| Voltage | 380V / 220V 3 phase |
| Tank size | 2000X1200X1000mm |
| Certificate | ISO9001:2008|CE & RoHS |
Size could be customized
Similar models with different tank volume:
| Model | Tank Size | Volume | Ultrasonic Power |
Heating Power |
Time Control |
| L*W*H (mm) | (L) | (W) | (W) | (min) | |
| JP-1216ST | 1500X1000X1000 | 1500L | 10800W | 36000W | 0-99h |
| JP-1288ST | 2000X1200X800 | 1920L | 14400W | 45000W | 0-99h |
| JP-1360ST | 2000X1200X1000 | 2400L | 18000W | 54000W | 0-99h |
| JP-1432ST | 2000X1500X1200 | 3000L | 21600W | 63000W | 0-99h |
| JP-1576ST | 2500X1500X1200 | 4500L | 28800W | 63000W | 0-99h |
| JP-1648ST | 3000X1500X1200 | 5400L | 32400W | 63000W | 0-99h |
| JP-1720ST | 4000X1600X1000 | 6400L | 36000W | 66000W | 0-99h |
| JP-1936ST | 3500X1600X1300 | 7280L | 46800W | 66000W | 0-99h |
| JP-11152ST | 2500X2000X1700 | 8500L | 57600W | 69000W | 0-99h |
| JP-11224ST | 3200X2000X1500 | 9600L | 61200W | 69000W | 0-99h |
| JP-11368ST | 8000X1200X1200 | 11520L | 68400W | 69000W | 0-99h |
| JP-11512ST | 8000X1600X1600 | 75600L | 72000W | 72000W | 0-99h |
How does Ultrasonic Cleaner work?
Before and after :
How do you clean an oil extractor pump?
“how to clean petroleum extraction machine
You need to clean the outer part of the oil extractor rubbing thoroughly with it. After that flow alcohol deeply through the internal systems of the oil extractor and the hoses. Alcohol would dissolve those substances that water, even hot water cannot remove. Then, apply hot water.
