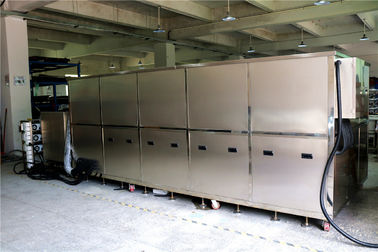

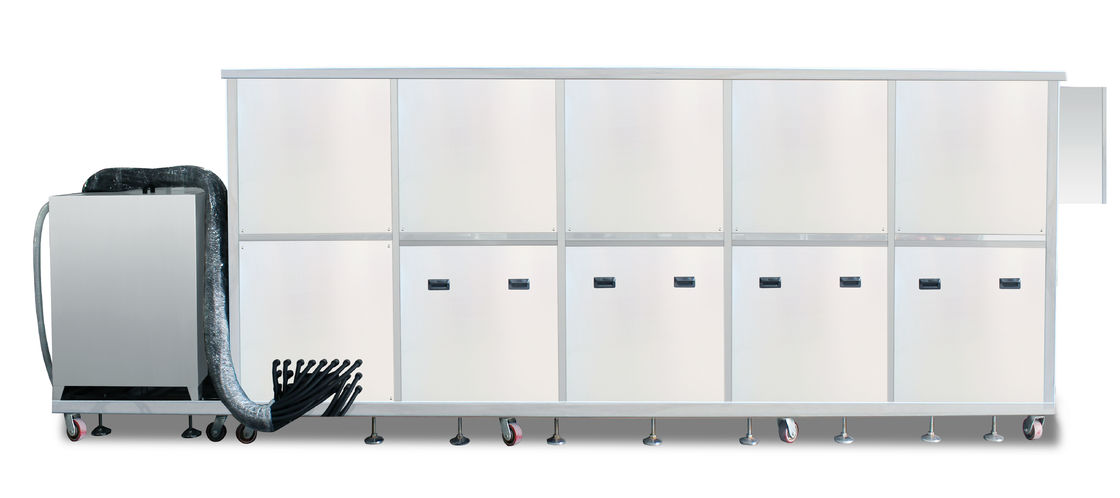

1500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block

1500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block
1500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block 1500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block

Large Image :  1500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-1216ST
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

1500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block

Description
Model: JP-1216ST Tank Volume: 1500L
Ultrasonic Power: 10800W Heating Power: 36000W
Frequency: 40KHz/28KHz Internal Tank Size: 1500X1000X1000mm (L*W*H)
Filter Cycle System: 1 Set Gross Weight: 1200KG
High Light:

1500L Tank Ultrasonic Cleaning Machine

,

Ultrasonic Cleaning Machine 28KHz

,

Heavy Block Ultrasonic Engine Cleaner

1500L Painting and Vacuum Coating Pretreatment 10800W Ultrasonic Cleaner 28/40KHz
Temperature choose:
The most suitable cleaning temperature for the water cleaning solution is 50-60 ° C. Especially in the case of cold weather, if the temperature of the cleaning solution is low, the cavitation effect is poor, and the cleaning effect is also poor. Therefore, some washing machines are wound around the heating cylinder to heat the heating wire for temperature control. When the temperature rises, cavitation is easy to occur, so the cleaning effect is good. When the temperature continues to rise, the gas pressure in the bubble increases, causing the impact sound pressure to drop, reflecting the multiplication of the two factors.
Specification

ModelJP-1216G
Tank Volume1500L
Internal tank size1500X1000X1000mm
Transducers216pcs  50W of every transducer
Ultrasonic Power10800W
Heating Power36000W
Frenquency28KHz/40KHz
Filtration Cycle System1 set
Generator6 set
Unit size1900*2150*1550mm
Packing size2100*2450*1850mm
Timer0~99 hours adjustable
HeaterRoom temperature~99℃ adjustable
MaterialSUS 304 default, can be SUS 316
Power SupplyAC 220V 3 phase ; AC 380V 3 phase
N.W.1200KG
G.W.1400KG Wrapped by film in wooden case
Lead time12 working days
Warranty1 year warranty period, technique support all time
CertificatesCE, RoHS, FCC, SGS
AdvantageFilter the dirty water; keep the water clear in tank; lower the frequency of changing water


Images:
Clean effect:
1500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block 01500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block 11500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block 21500L Tank Ultrasonic Cleaning Machine 28KHz For Heavy Engine Block 3

Same series with different size:

ModelTank sizeVolumeUltrasonic
Power
Heating
Power
Transducer
L*W*H (mm)(L)(W)(W)(pcs)
JP-120G500X300X25038L600W1500W12pcs
JP-180G500X350X30053L900W1500W18pcs
JP-240G550X400X35077L1200W3000W24pcs
JP-300G550X450X40099L1500W3000W30pcs
JP-301G800X300X40096L1500W3000W30pcs
JP-360G600X500X450135L1800W4500W36pcs
JP-480G700X500X500175L2400W6000W48pcs
JP-600G800X600X550246L3000W6000W60pcs
JP-720G1000X600X600360L3600W9000W72pcs
JP-1108G1000X900X600540L5400W18000W108pcs
JP-1144G1200X1000X800960L7200W27000W144pcs


How to Use an Ultrasonic Cleaner for Medical & Surgical Instruments?
Medical and surgical instruments in a variety of sizes and complexity can pose challenges when it comes to cleaning, disinfecting and sterilizing them after use. An ultrasonic cleaner is an ideal tool for the first step in this three step process to protect medical personnel and patients from possible infection due to pathogens that remain on the instruments after a procedure.

Why we use filter(filtration cycle system)
Cleaning of the manufacturing industry Cleaning of the manufacturing industry usually requires a large amount of solvent to remove grease and dust on the surface of the part. Usually, a large amount of solvent and detergent are used to remove the grease and dust on the surface of the part. However, the use of solvents and detergents inevitably increases the amount of water, which increases the cost of cleaning and is not environmentally friendly.
The circulation filtration system effectively reduces the cleaning cost, greatly reduces the discharge of wastewater, and achieves the purpose of sustainable recycling of cleaning water.
