Product Details:
|
| Frequency: | 40Hz | Material: | Stainless Steel SUS304/SUS316 |
|---|---|---|---|
| Tank Thickness: | 2mm | Tank Capacity: | 53L |
| Timer: | 1-99min | Heater: | Room Temp~80℃ Adjustable |
| Ultrasonic Power: | 900W | Heating Power: | 1500W |
| Voltage: | 110V/220V | G.W: | 70kg |
| Include: | With Casters | Solvent: | SUS304 For Strong Acid And Alkaline |
| Transducers: | 18 | ||
| High Light: | Industrial Ultrasonic Bath SUS304 Tank,1500W Industrial Ultrasonic Bath,adjustable Heater Industrial Ultrasonic Bath |
||

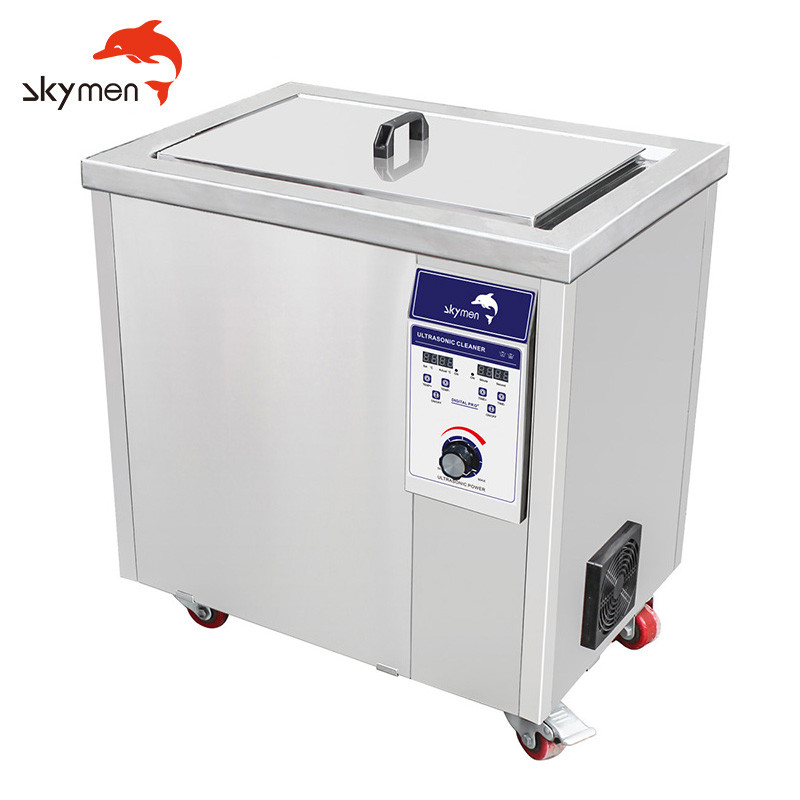

Industrial Ultrasonic Cleaner 28/40KHZ High Power 1500W 53L Ultrasonic Bath
Description:
Ultrasonic cleaners are highly effective, intense cleaning systems that can be used to effectively clean tools and equipment in many industries. The automotive industry utilizes ultrasonic cleaning methods in many facets of their industry - manufacturing, production, assembly and even in automotive repair. Ultrasonic cleaning provided the best method of cleaning and degreasing for all types of automotive parts and machinery. Unlike other cleaning processes and harsh chemicals, ultrasonic cleaning will not damage intricate, lightweight, or easily damaged parts.
The Benefit of Ultrasonic Cleaners in the Automotive Industry An ultrasonic cleaner can thoroughly removes carbon deposits, grease, and other types of dirt and contaminants from carburetors, exhaust manifolds, cylinder blocks, motorcycle engines, ATV cylinders and more. It can also be used on smaller parts such as plugs, screws, bolts and fixtures. Ultrasonic cleaners can also be used in the marine industry on inboard and outboard motors because the cleaning process is both thorough and gentle on aluminum parts, which reduces the risk of future corrosion.
| Model No. | JP-180ST | |
| Image |  |
|
| Ultrasonic model | Ultrasonic Frequency | 28/40 kHz |
| Material | Stainless Steel SUS304 | |
| Tank Capacity | 53L | |
| Timer | 1~99min adjustable | |
| Heater | 20°C to 95°C adjustable | |
| Degas | Yes | |
| Semiwave | Yes | |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz | |
| AC 220 ~ 240V, 50 / 60 Hz | ||
| Ultrasonic Power | 900 W | |
| Heating Power | 1500W | |
| Basket& cover | Standard equiped | |
| Packing | Tank Size | 500*350*300mm ( L x W x H ) |
| Unit Size | 680*550*735mm ( L x W x H ) | |
| Package Size | 790*620*890mm( L x W x H ) | |
| N.W. / G.W. | 63kg /73 kg | |
| Warranty | 1 year | |
| Features. | Automatic measuring of load - frequency and power regulation Fully digital generator – well-adjusted and energy efficient Advanced diagnostics – performance monitoring and service capabilities Top level of cleanliness Quick wash process Good ergonomics in manual handling of lightweight items A cost-effective solution Compact design, small footprint |
|
| Application. | Garage workshops, commercial vehicle repair workshops, fuel test laboratories, marine engine repair, electrical engineers, aeronautical industry, precision and general engineering, engine rebuilding, turbocharger repair shops, etc. |
|
| Certificates | CE/ROHS/FCC/PSE/ISO9001 | |
| 2. Description: | |||||||||
| A: Material: | |||||||||
| a. Tank thickness: 2.0mm. (Stainless Steel SUS304) | |||||||||
| b. Capacity:53liter | |||||||||
| c. N.W. / G.W.63KG / 73KG | |||||||||
| d. Warranty: 1 Year | |||||||||
| B. Dimension:(L* W*H ) mm | |||||||||
| a. Tank size: 500*350*300mm | |||||||||
| b. Unit size:680*550*735mm | |||||||||
| c. Packing size: 790*620*890mm | |||||||||
| C. Features: | |||||||||
| a. Stainless steel SUS 304 tank and housing. | |||||||||

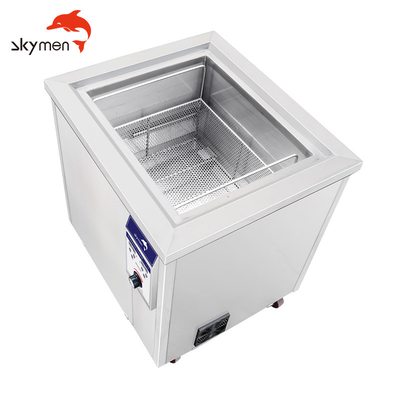

| b. Stainless steel washing basket and Lid, | |||||||||
| c. Full-open lid easy for water filling, drainage valve for dirty water discharge. | |||||||||
| D. Application: | |||||||||
| a. Train bearings, industry intrument, hardware instrument, scientific laboratory, automotive parts, motor, machine tool, etc. | |||||||||
| E. Certificates: CE/ROHS/FCC/PSE/ISO2008 9001 |
Application:
-Scientific Labs:Eyeglass Frames;Lab Glassware;Optical&Contact Lenses;Pipettesscientific Instruments;Test tubes
-Industrial Manufacturing:Assemblies;Gears;Metal&Plastic Parts;Precision Bearings
-Electronic manufacturing:Capacitors;Ceramic Substrates;PC Boards;Packaging Components;Quartz Crystals
-Medical and Dental Lab:Burs;Blood Oxygenators;Dental Instruments;Syringe Parts;Surgical Instruments
-Jewelry Manufacturing:Chains;Charms;Coins;Intricate Settings;Precious Metals&Gemstones;Watches
If your company has other needs, you can choose the size that suits you according to the chart below
How ultrasonic cleaner works:
Electrical energy is cnverted into mechanical vibrations thanks to special elaborated transducers.These vibrations are transferred into the fluid through the walls of stainless steel.This creates tiny microscopic vacuum bubbles, which cause consecutive implosions (cavitation).The high-energy jets that are thus created can efficiently remove dirt from surfaces an materials placed in the cleaning bath.
An ultrasonic cleaner in your kitchen will save time and reduce effort while providing a safe solution for your kitcheware. With the help of oil remove detergent ,the ultrasonic cleaner could fast and efficient take the oil ,polish the kitcheware.
when using an ultrasonic cleaner on glassware, plasticware, and your lab instruments. Whether you are cleaning oven trays, pans. studies have shown that it can be up to 30 times faster while delivering thoroughly clean results.
