Product Details:
|
| Frequency: | 40/28Hz | Material: | Stainless Steel SUS304/SUS316 |
|---|---|---|---|
| Tank Thickness: | 2mm | Tank Capacity: | 53L For Each |
| Timer: | 1-99h | Heater: | 20℃-95℃ Adjustable |
| Ultrasonic Power: | 900W Can Be Custom Made | Heating Power: | 1500W*2 |
| Unit Size: | 1450*550*900mm | Voltage: | 380V 3phases |
| Package: | 1 Set / Wooden Case | Package Size: | 1510*610*1020mm |
| Include: | With Casters | Solvent: | SUS304 For Strong Acid And Alkaline |
| G.W: | 155kg | ||
| High Light: | 2mm Tank Ultrasonic Cleaning Machine,99h Timer Ultrasonic Cleaning Machine,Medical SUS Ultrasonic Parts Cleaner |
||

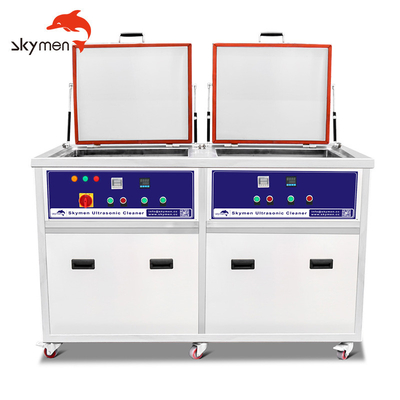

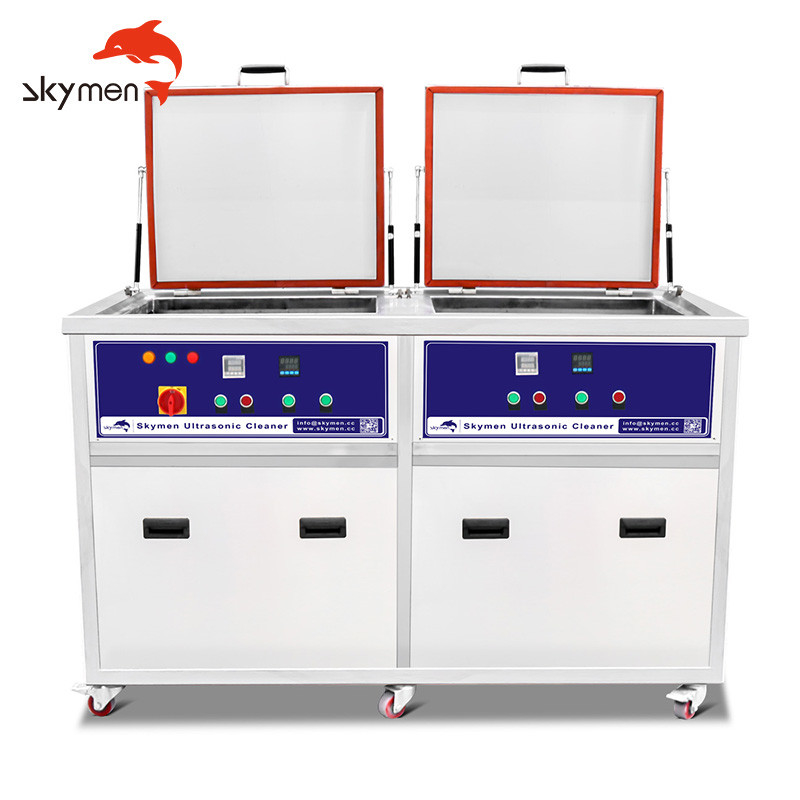

Skymen Hot-sale model dual-tank ultrasonic cleaning machine with cleaning and hot-wind frying for medical 50L
| 1 | Model No. | JP-2018H | |
| 2 | Image |  |
|
| 3 | Ultrasonic model | Ultrasonic Frequency | 28/40 kHz |
| Material | Stainless Steel SUS304 | ||
| Tank Capacity | 53L for each | ||
| Timer | 1~99hours adjustable | ||
| Heater | 20°C to 95°C adjustable | ||
| Degas | Yes | ||
| Semiwave | Yes | ||
| Power Supply | AC 100 ~ 120V, 50 / 60Hz | ||
| AC 220 ~ 240V, 50 / 60 Hz | |||
| Ultrasonic Power | 900 W | ||
| Heating Power | 1500 W*2 | ||
| Basket& cover | Standard equiped | ||
| 4 | Packing | Tank Size | 500*350*300mm ( L x W x H ) |
| Unit Size | 1450*550*900mm ( L x W x H ) | ||
| Package Size | 1510*610*1020mm(L*W*H) | ||
| G.W. | 155 kg | ||
| Warranty | 1 year | ||
| 5 | Features. | 1. stainless steel tank has resistance to wear and long work life. 2. with cleaning and drying stsyem, 3. with stainless steel basket and cover. 4. use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement 5.ultrasonic cleaning solutions penetrate virtually any soil type including: oils, residues, solvents, pastes and chemicals and other contaminants are safely lifted and dispersed, leaving a surface appearance that is clean and free of particulate; even in crevasses and internal bores. |
|
| 6 | Application. | medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university lab, hardware tools shop. | |
| 7 | Certificates | CE/ROHS/FCC/PSE/ISO9001 | |
Features:
Adjustable ultrasonic power
Original BLT type transducer
SUS 304 stainless steel tank
Adaptable for continuous operation
Adjustable thermo controller
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
Sweep mode control available
Digital timer & heating control
Boost mode& oil skimmer upon clients requirement
Application:
- Scientific Labs:Eyeglass Frames;Lab Glassware;Optical&Contact Lenses;Pipettesscientific Instruments;Test tubes
- Industrial Manufacturing:Assemblies;Gears;Metal&Plastic Parts;Precision Bearings
- Electronic manufacturing:Capacitors;Ceramic Substrates;PC Boards;Packaging Components;Quartz Crystals
- Medical and Dental Lab:Burs;Blood Oxygenators;Dental Instruments;Syringe Parts;Surgical Instruments
- Jewelry Manufacturing:Chains;Charms;Coins;Intricate Settings;Precious Metals&Gemstones;Watches
If your company has other needs, you can choose the size that suits you according to the chart below
How ultrasonic cleaner works:
Electrical energy is converted into mechanical vibrations thanks to special elaborated transducers.These vibrations are transferred into the fluid through the walls of stainless steel.This creates tiny microscopic vacuum bubbles, which cause consecutive implosions (cavitation).The high-energy jets that are thus created can efficiently remove dirt from surfaces an materials placed in the cleaning bath.
An ultrasonic cleaner in your kitchen will save time and reduce effort while providing a safe solution for your kitcheware. With the help of oil remove detergent ,the ultrasonic cleaner could fast and efficient take the oil ,polish the kitcheware.
when using an ultrasonic cleaner on glassware, plasticware, and your lab instruments. Whether you are cleaning oven trays, pans. studies have shown that it can be up to 30 times faster while delivering thoroughly clean results.
Company profile
Here are the Skymen company.You can know more about us with the details.
FAQ:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for commen use and 28kHz for heavy duty oil removal
3. Choose tank meterial based on solvent, SUS304 or SUS316L
4. Other function optional,
Ultrasonic cleaning tank + Ultrasonic Rinsing tank
Ultrasonic cleaning tank + Air agitation Rinsing tank
Ultrasonic cleaning tank + Water Rinsing tank
Ultrasonic cleaning tank + Hot air drying tank
Oil filtertation system: detergent recycle use to save much cost
