Product Details:
|
Frequency: | 28 Khz Or 40 Khz | Ultrasonic Power: | 900W |
---|---|---|---|
Voltage: | AC380V ,50HZ | Inner Tank Size: | 500*350*300 Mm |
Heating Power: | 3000 W | Drying Power: | 3000 W |
Certification: | CE | Application: | Auto Parts ,Hardware And So On |
High Light: | 900W Industrial Ultrasonic Cleaning Equipment,AC380V Industrial Ultrasonic Cleaning Equipment,SUS Rising Ultrasonic Cleaning Machine |

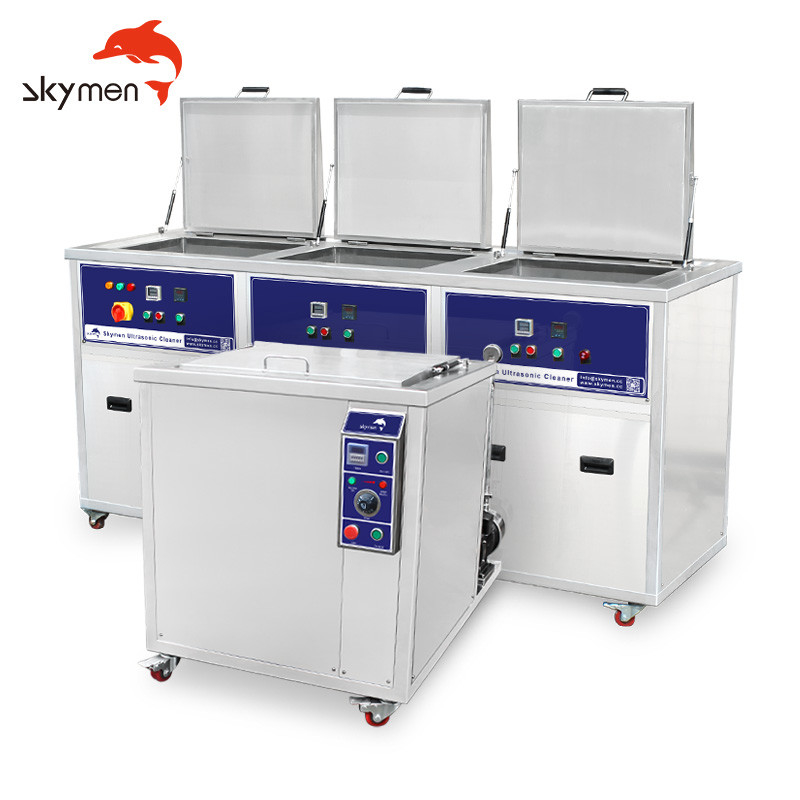

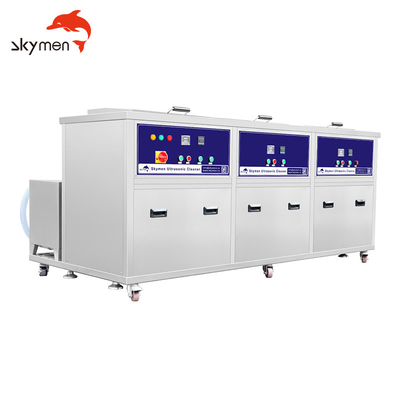

Multi-Tank Industry Ultrasonic Cleaning Equiptment Industrial Machine Chinese Factory
Multi-Tank Industry Ultrasonic Cleaning Equiptment

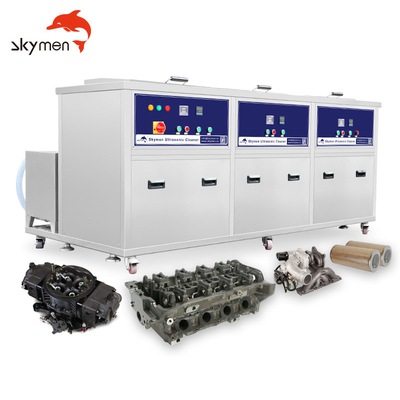

Mechanical parts could be well cleaned by the 3 tank cleaning system!
degreasing, chip removal, rust removal, oxide removal, decontamination, etc.
cleaning of various precision machined metal parts.
1st tank work as ultrasonic cleaning;
2nd work as rinsing parts after cleaning.
3rd dry your parts.
1
|
Model
|
JP-3120GH (Ultrasonic Cleaning + Filter+ Rising+ Hot Air Drying)
|
|
2
|
1st Tank
|
Function
|
Ultrasonic Cleaning + Filter
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
Inner tank dimension
|
800*600*550mm
|
||
Tank Capacity
|
264L
|
||
Transducer96
|
pcs
|
||
Ultrasonic Power
|
3000W
|
||
Heating Power
|
6000W
|
||
Time setting of Ultrasonic
|
0~99 hours
|
||
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
Thickness of tank
|
1mm
|
||
Drain value
|
Yes, in the right side of machine
|
||
Water inlet/outlet
|
Yes
|
||
Filter
|
1 set, connect with 1st tank
|
||
Generator
|
1 set
|
||
Lid
|
Yes, hinged with machine body, with gasket
|
||
Basket load
|
200KG
|
||
3
|
2nd tank
|
Function
|
Ultrasonic Cleaning + Rising
|
Inner tank dimension
|
800*600*550mm
|
||
Ultrasonic Power
|
3000W
|
||
Heating Power
|
6000W
|
||
4
|
3rd tank
|
Function
|
Hot Air Drying
|
Inner tank dimension
|
800*600*550mm
|
||
Dryer Power
|
3000W
|
||
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
Model
|
Tank size
|
Capacity
|
Transducer
|
Ultrasonic power
|
Heating power
|
Frequency
|
Generator
|
(mm)
|
(L)
|
(pcs)
|
(W)
|
(W)
|
(kHz)
|
(set)
|
|
JP-3024GH
|
500*300*250
|
38
|
24
|
600*2
|
1500*2
|
28/40
|
1
|
JP-3036GH
|
500*350*300
|
53
|
36
|
900*2
|
1500*2
|
28/40
|
1
|
JP-3048GH
|
550*400*350
|
77
|
48
|
1200*2
|
3000*2
|
28/40
|
1
|
JP-3060GH
|
550*450*400
|
99
|
60
|
1500*2
|
3000*2
|
28/40
|
1
|
JP-3072GH
|
600*500*450
|
135
|
72
|
1800*2
|
4500*2
|
28/40
|
1
|
JP-3096GH
|
700*500*500
|
175
|
96
|
2400*2
|
6000*2
|
28/40
|
2
|
JP-3120GH
|
800*600*550
|
264
|
120
|
3000*2
|
6000*2
|
28/40
|
2
|
JP-3144GH
|
1000*600*600
|
360
|
144
|
3600*2
|
9000*2
|
28/40
|
2
|
JP-3216GH
|
1000*900*600
|
540
|
216
|
5400*2
|
18000*2
|
28/40
|
3
|
JP-3288GH
|
1200*1000*800
|
960
|
288
|
7200*2
|
24000*2
|
28/40
|
4
|
Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaner with different capacity.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.
Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.
Suggestion and drawing is professional for you.
Welcome to visit our factory, provide your precious guidance and conduct business negotiation.
♦ Payment Methods♦
These payments of T/T,Paypal are accepted. If you have any problem with the payment, please leave a message to us.
♦ Logistics♦
DHL, EMS and Fedex are our choices. If you prefer other reliable shipping company, please leave a message to us.
♦ Tracking Number♦
Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.
Contact Person: Miss. Nikki
Tel: 86-755-27094405
Fax: 86-755-27094405
