Product Details:
|
| Fuel: | Electric | Tank Size: | 500x300x250 Mm |
|---|---|---|---|
| Use: | Degreasing | Heating Power: | 1500W |
| Cleaning Process: | Hot Water Cleaning,Solvent Cleaning | Ultrasonic Power (w): | 600W |
| Frequency: | 28KHz/40KHz | Tank Capacity: | 38L |
| High Light: | 38L Tank Degreasing Ultrasonic Cleaner,AC380V Degreasing Ultrasonic Cleaner,Metal Shell Benchtop Ultrasonic Cleaner |
||

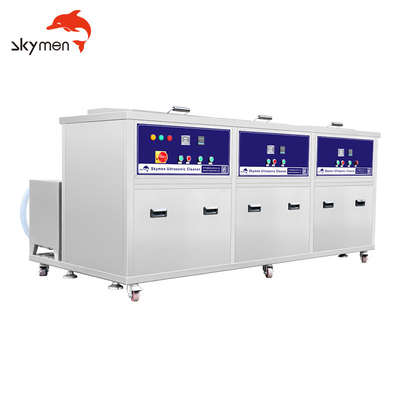

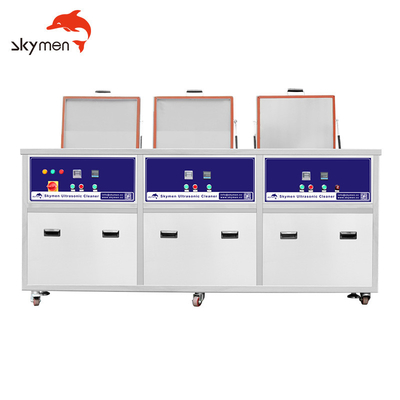

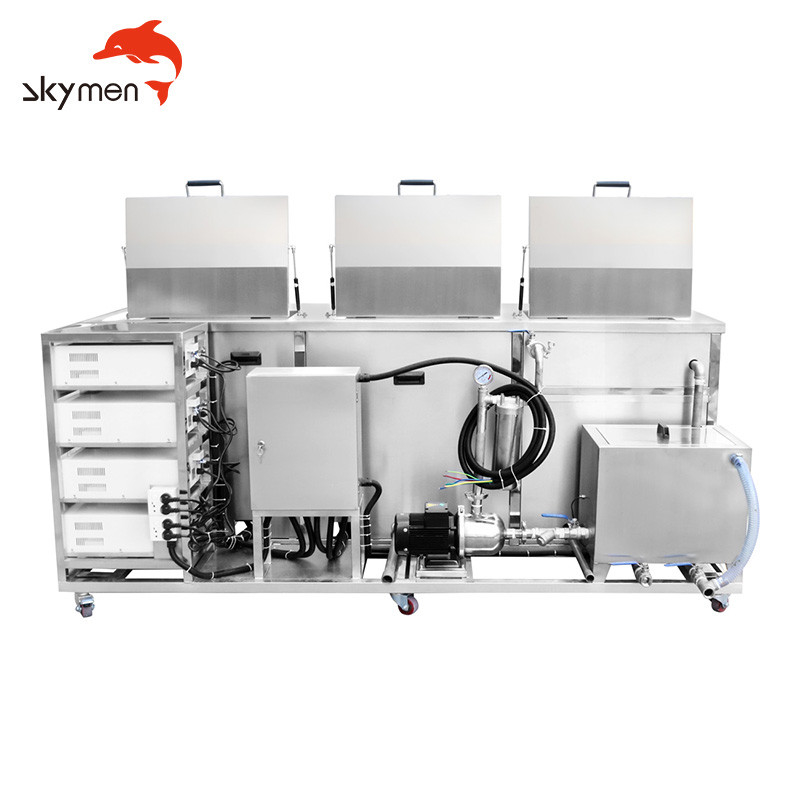

3 Tanks Cleaning Rinsing Drying Function 28Khz 40Khz Ultrasonic Cleaning Machine
Product Description
1.Automatic frequency tracking generator MCU-SWEEP drive, modular design of the whole machine, easy to operation, convenience to maintenance
2.Digital controlled Dispaly, one-button to start degassing, can quick remove the air in water,and have strong ultrasonic effect, 3.20-100 ℃ heating temperature adjustable, 0-100% ultrasonic power adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong,
4.High Q ultrasonic transducers, high strength glue bonding,have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function
5.Pass 2500V high voltage test, strict production process and aging process,have mute cover/ 304 stainless steel washing basket, etc.and certificated by CE/ROSH/FCC
6. Additional flitration and circulation, automatic basket lifting system can be added too.
Product parameters
| Specification | Ultrasonic Frequency | 40K Hz or 28KHz |
| Material | Stainless Steel SUS304 | |
| Tank thickness | 2 mm | |
| Ultrasonc Tank Capacity | 38L | |
| Rinsing Tank Capacity | 38L | |
| Drying tank capacity | 38L | |
| Timer | 1~99Hours adjustable | |
| Heater | 20°C to 95°C adjustable | |
| Machine voltage | AC 220V/380V, 3phases , Or other | |
| Generator voltage | AC 110V/220V, 1phase | |
| cleaning tank ultrasonic | 600W | |
| Rinsing tank ultrasonic | 600W | |
| Drying tank ultrasonic | / | |
| Cleaning tank heater | 1500W | |
| Rinsing tank heater | 1500W | |
| Drying tank heater | 30000W | |
| Drain valve | 1 inch | |
| Packing | Ultrasonic Tank Size | 500*300*250mm ( L x W x H ) |
| Rinsing Tank size | 500*300*250mm ( L x W x H ) | |
| Drying Tank size | 500*300*250mm ( L x W x H ) | |
| Unit Size | 2300*1100*1000mm | |
| Package Size | Wooden case 2650*1350*1250mm | |
| N.W. / G.W. | 324 kg /430 kg | |
| Warranty | 1 year |
