Product Details:
|
Model: | JP-3024GH | Tank Volume: | 38L |
---|---|---|---|
Ultrasonic Power: | 0-600W | Heating Power: | 1500W |
Frequency: | 40KHz/28KHz | Internal Tank Size: | 500X300X250mm (L*W*H) |
Filter Cycle System: | Selectable | Cleaning Process: | Cleaning Rinsing Drying |
Material: | SUS304, SUS316 | Machine Type: | Industrial |
Fuel: | Electric | Condition: | NEW |
Warranty: | 1 Year | Cleaning Type: | Industrial Ultrasonic Cleaner, Immersion / Soak |
Use: | Precision Sheet Metal Hardware Stamping Parts | Timer: | 0-99h |
Heater: | RT-95C | Delivery: | 10-15 Working Days |
High Light: | Stamping Parts Ultrasonic Cleaning Machine,Ultrasonic Cleaning Machine SUS316,Deoxidizing Sonic Wave Ultrasonic Cleaner |

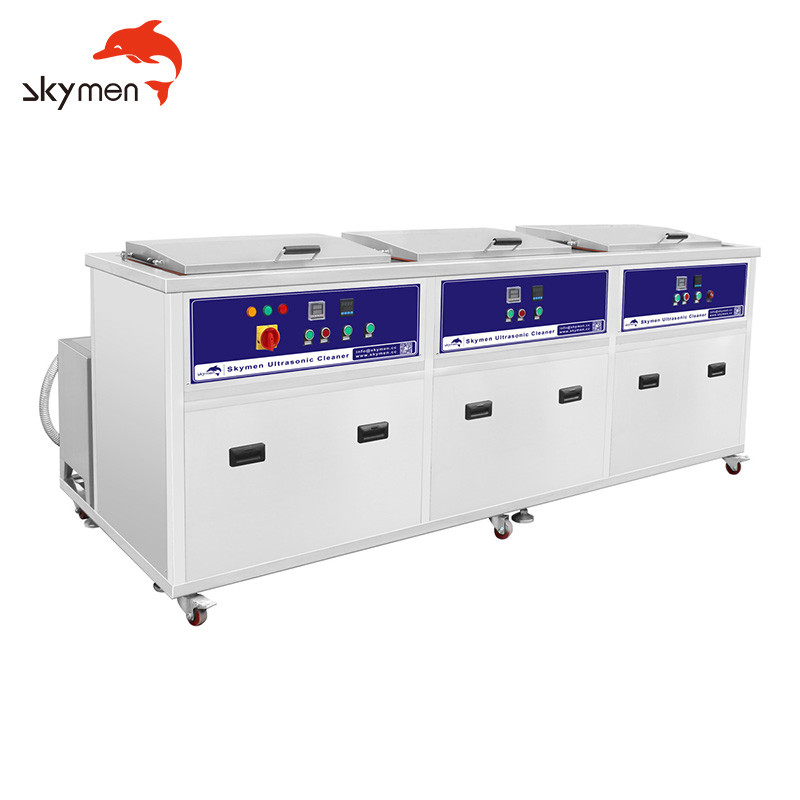

Ultrasonic Cleaning Machine for precision Sheet metal Hardware stamping parts Degreasing Derusting Deoxidizing
Hardware stamping parts-all kinds of hardware products need to be cleaned after stamping, such as degreasing, derusting, deoxidizing, and decontamination.
Sheet metal
precision metal
Metal hardware
Precision hardware
Metal stamping
No
|
|||
1
|
Model
|
JP-3024GH (Ultrasonic Cleaning + Filter+ Rising+ Hot Air Drying)
|
|
2
|
1st Tank
|
Function
|
Ultrasonic Cleaning + Filter
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
Inner tank dimension
|
500*300*250mm
|
||
Tank Capacity
|
38L
|
||
Transducer
|
24pcs
|
||
Ultrasonic Power
|
600W
|
||
Heating Power
|
1500W
|
||
Time setting of Ultrasonic
|
0~99 hours
|
||
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
Thickness of tank
|
1mm
|
||
Drain value
|
Yes, in the right side of machine
|
||
Water inlet/outlet
|
Yes
|
||
Filter
|
1 set, connect with 1st tank
|
||
Generator
|
1 set
|
||
Lid
|
Yes, hinged with machine body, with gasket
|
||
Basket load
|
200KG
|
||
3
|
2nd tank
|
Function
|
Ultrasonic Cleaning + Rising
|
Inner tank dimension
|
500*300*250mm
|
||
Ultrasonic Power
|
600W
|
||
Heating Power
|
1500W
|
||
4
|
3rd tank
|
Function
|
Hot Air Drying
|
Inner tank dimension
|
500*300*250mm
|
||
Dryer Power
|
4500W
|
||
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
Applications:
Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.
Industrial cleaning equipment, ultrasonic cleaning machines are widely used in electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.
Model
|
Tank size
|
Capacity
|
Transducer
|
Ultrasonic power
|
Heating power
|
Frequency
|
Generator
|
(mm)
|
(L)
|
(pcs)
|
(W)
|
(W)
|
(kHz)
|
(set)
|
|
JP-3024GH
|
500*300*250
|
38
|
24
|
600*2
|
1500*2
|
28/40
|
1
|
JP-3036GH
|
500*350*300
|
53
|
36
|
900*2
|
1500*2
|
28/40
|
1
|
JP-3048GH
|
550*400*350
|
77
|
48
|
1200*2
|
3000*2
|
28/40
|
1
|
JP-3060GH
|
550*450*400
|
99
|
60
|
1500*2
|
3000*2
|
28/40
|
1
|
JP-3072GH
|
600*500*450
|
135
|
72
|
1800*2
|
4500*2
|
28/40
|
1
|
JP-3096GH
|
700*500*500
|
175
|
96
|
2400*2
|
6000*2
|
28/40
|
2
|
JP-3120GH
|
800*600*550
|
264
|
120
|
3000*2
|
6000*2
|
28/40
|
2
|
JP-3144GH
|
1000*600*600
|
360
|
144
|
3600*2
|
9000*2
|
28/40
|
2
|
JP-3216GH
|
1000*900*600
|
540
|
216
|
5400*2
|
18000*2
|
28/40
|
3
|
JP-3288GH
|
1200*1000*800
|
960
|
288
|
7200*2
|
24000*2
|
28/40
|
4
|
Q9: How do I get the nice ultrasonic cleaning?
A9: Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, 50~60℃ can achieve best cleaning effect. cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
