Product Details:
|
Model: | JP-3288GH | Tank Volume: | 960L |
---|---|---|---|
Ultrasonic Power: | 7200W*2 | Heating Power: | 27000W*2 |
Frequency: | 40KHz/28KHz Optional | Internal Tank Size: | 1200*1000*800mm (L*W*H) |
Material: | SUS316 304 | Condition: | New |
Highlight: | Three Tank Industrial Ultrasonic Cleaner,960L Dpf Industrial Ultrasonic Cleaner,SUS316 Tank Ultrasonic Cleaner Baths |

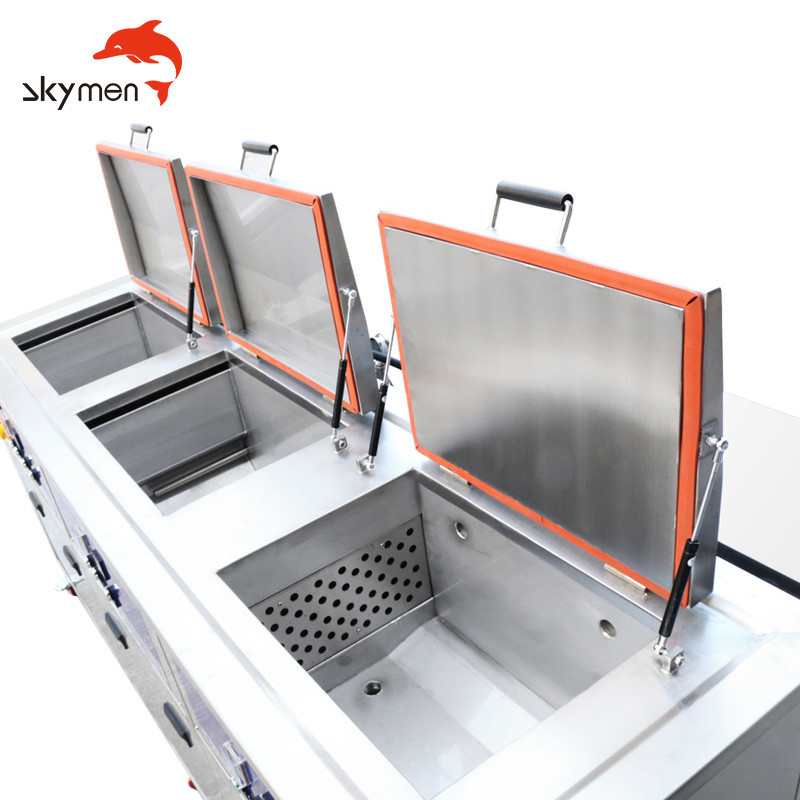

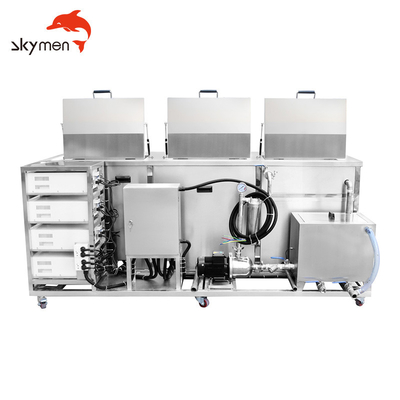

Skymen JP-3288GH 960L Dpf Three Tank Industrial Ultrasonic Cleaner Baths Cleaning
No
|
|||
1
|
Model
|
JP-3288GH (Ultrasonic Cleaning + Filter+ Rising+ Hot Air Drying)
|
|
2
|
1st Tank
|
Function
|
Ultrasonic Cleaning + Filter
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
Tank Material
|
SUS 304 (SUS316 can be customized)
|
||
Inner tank dimension
|
1200*1000*800mm
|
||
Tank Capacity
|
960L
|
||
Transducer96
|
pcs
|
||
Ultrasonic Power
|
7200W
|
||
Heating Power
|
27000W
|
||
Time setting of Ultrasonic
|
0~99 hours
|
||
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
Thickness of tank
|
1mm
|
||
Drain value
|
Yes, in the right side of machine
|
||
Water inlet/outlet
|
Yes
|
||
Filter
|
1 set, connect with 1st tank
|
||
Generator
|
1 set
|
||
Lid
|
Yes, hinged with machine body, with gasket
|
||
Basket load
|
200KG
|
||
3
|
2nd tank
|
Function
|
Ultrasonic Cleaning + Rising
|
Inner tank dimension
|
1200*1000*800mm
|
||
Ultrasonic Power
|
7200W
|
||
Heating Power
|
27000W
|
||
4
|
3rd tank
|
Function
|
Hot Air Drying
|
Inner tank dimension
|
1000*600*600mm
|
||
Dryer Power
|
12000W
|
||
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
Model
|
Tank size
|
Capacity
|
Transducer
|
Ultrasonic power
|
Heating power
|
Frequency
|
Generator
|
(mm)
|
(L)
|
(pcs)
|
(W)
|
(W)
|
(kHz)
|
(set)
|
|
JP-3024GH
|
500*300*250
|
38
|
24
|
600*2
|
1500*2
|
28/40
|
1
|
JP-3036GH
|
500*350*300
|
53
|
36
|
900*2
|
1500*2
|
28/40
|
1
|
JP-3048GH
|
550*400*350
|
77
|
48
|
1200*2
|
3000*2
|
28/40
|
1
|
JP-3060GH
|
550*450*400
|
99
|
60
|
1500*2
|
4500*2
|
28/40
|
1
|
JP-3072GH
|
600*500*450
|
135
|
72
|
1800*2
|
4500*2
|
28/40
|
1
|
JP-3096GH
|
700*500*500
|
175
|
96
|
2400*2
|
6000*2
|
28/40
|
2
|
JP-3120GH
|
800*600*550
|
264
|
120
|
3000*2
|
6000*2
|
28/40
|
2
|
JP-3144GH
|
1000*600*600
|
360
|
144
|
3600*2
|
9000*2
|
28/40
|
2
|
JP-3216GH
|
1000*900*600 |
540
|
216
|
5400*2
|
18000*2
|
28/40
|
3
|
JP-3288GH
|
1200*1000*800
|
960
|
288
|
7200*2
|
24000*2
|
28/40
|
4
|
Operating principle:
The principle of an ultrasonic cleaner is to convert the acoustic energy of a power ultrasonic frequency source into mechanical vibration via a converter and irradiate the cleaning liquid in the tank with ultrasonic waves through the wall of the cleaning tank. The radiation of ultrasonic waves allows the microbubbles in the liquid in the tank to continue to vibrate under the action of the sound waves. It destroys dirt and adsorption on the surface of the cleaning part, eliminates fatigue damage of the dirt layer, and rubs the solid surface with the vibration of bubbles.
