Product Details:
|
| Model: | JP-3144GH | Tank Volume: | 360L |
|---|---|---|---|
| Ultrasonic Power: | 7200W | Heating Power: | 6000W |
| Frequency: | 40KHz/28KHz | Internal Tank Size: | 1000*600*600mm (L*W*H) |
| Filter Cycle System: | 1 Set | ||
| High Light: | Three Tank Ultrasonic Cleaner Equipment,7200W Ultrasonic Cleaner Equipment,360L Heated Ultrasonic Cleaner |
||

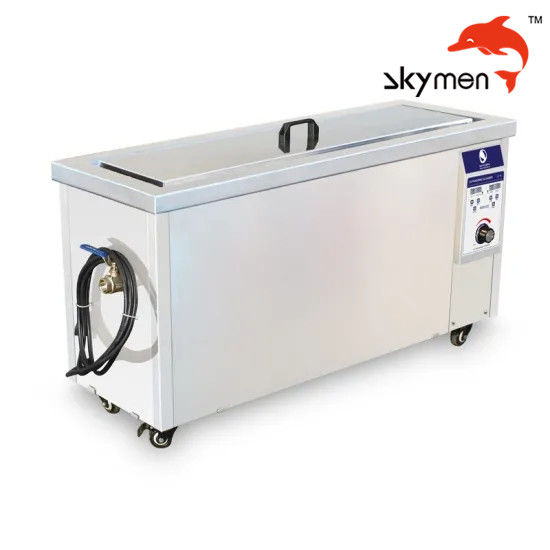

Skymen JP-3144GH 360L 7200W Dpf Three Tank Industrial Ultrasonic Cleaner Baths Cleaning
|
No
|
|||
|
1
|
Model
|
JP-3096GH (Ultrasonic Cleaning + Filter+ Rising+ Hot Air Drying)
|
|
|
2
|
1st Tank
|
Function
|
Ultrasonic Cleaning + Filter
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
|
Inner tank dimension
|
1000*600*600mm
|
||
|
Tank Capacity
|
360L
|
||
|
Transducer96
|
pcs
|
||
|
Ultrasonic Power
|
3600W
|
||
|
Heating Power
|
6000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Thickness of tank
|
1mm
|
||
|
Drain value
|
Yes, in the right side of machine
|
||
|
Water inlet/outlet
|
Yes
|
||
|
Filter
|
1 set, connect with 1st tank
|
||
|
Generator
|
1 set
|
||
|
Lid
|
Yes, hinged with machine body, with gasket
|
||
|
Basket load
|
200KG
|
||
|
3
|
2nd tank
|
Function
|
Ultrasonic Cleaning + Rising
|
|
Inner tank dimension
|
1000*600*600mm
|
||
|
Ultrasonic Power
|
3600W
|
||
|
Heating Power
|
6000W
|
||
|
4
|
3rd tank
|
Function
|
Hot Air Drying
|
|
Inner tank dimension
|
1000*600*600mm
|
||
|
Dryer Power
|
3000W
|
||
|
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
|
Applications:
Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.
Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.Applications
Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.
Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.
|
Model
|
Tank size
|
Capacity
|
Transducer
|
Ultrasonic power
|
Heating power
|
Frequency
|
Generator
|
|
(mm)
|
(L)
|
(pcs)
|
(W)
|
(W)
|
(kHz)
|
(set)
|
|
|
JP-3024GH
|
500*300*250
|
38
|
24
|
600*2
|
1500*2
|
28/40
|
1
|
|
JP-3036GH
|
500*350*300
|
53
|
36
|
900*2
|
1500*2
|
28/40
|
1
|
|
JP-3048GH
|
550*400*350
|
77
|
48
|
1200*2
|
3000*2
|
28/40
|
1
|
|
JP-3060GH
|
550*450*400
|
99
|
60
|
1500*2
|
4500*2
|
28/40
|
1
|
|
JP-3072GH
|
600*500*450
|
135
|
72
|
1800*2
|
4500*2
|
28/40
|
1
|
|
JP-3096GH
|
700*500*500
|
175
|
96
|
2400*2
|
6000*2
|
28/40
|
2
|
|
JP-3120GH
|
800*600*550
|
264
|
120
|
3000*2
|
6000*2
|
28/40
|
2
|
|
JP-3144GH
|
1000*600*600
|
360
|
144
|
3600*2
|
9000*2
|
28/40
|
2
|
|
JP-3216GH
|
1000*900*600
|
540
|
216
|
5400*2
|
18000*2
|
28/40
|
3
|
|
JP-3288GH
|
1200*1000*800
|
960
|
288
|
7200*2
|
24000*2
|
28/40
|
4
|
Q9: How do I get the nice ultrasonic cleaning?
A9: Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, 50~60℃ can achieve best cleaning effect. cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
Features
1. Digital LED screen display
2. Fast and effective cleaning, convenient for users
3. Clean rings, earrings, necklaces, new features of diamonds,
4. Use only tap water or add a small amount of detergent for better cleaning
5. The cleaning effect is obvious
6. Cleaning items shine like new ones
7. Compact cover design to reduce noise
Cleaning Effect show:
Working Principle:
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
