Product Details:
|
| Application: | Clean All Kinds Curtains | Power: | 1800W+ 4500W |
|---|---|---|---|
| Cleaning Tank Sizecontrol: | 2000*200*400mm | Thermal Insulation: | Available |
| Tank Capacity: | 160L | Basket To Hold Curtain: | Available |
| Cleaning Time For 1 Curtain: | 30 Minutes | Detergent: | Need |
| High Light: | 2m Length Blind Ultrasonic Cleaner,4500W Blind Ultrasonic Cleaner,160L Ultrasonic Blind Cleaning Machines |
||

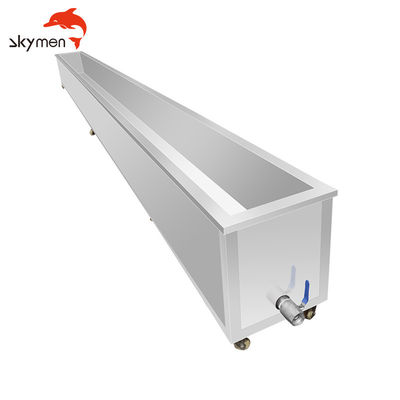

Product Overview
|
Model No.
|
JTS-1036
|
|
Function
|
Ultrasonic cleaning + Hot water cleaning
|
|
Application
|
Clean all kinds of curtain/drape/blind
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized 68KHz, 80KHz, 132KHz)
|
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
|
Thickness of tank
|
2mm
|
|
Ultrasonic tank dimension
|
2000*200*400mm (Length*width*deep)
|
|
Whole Machine dimension
|
2700*600*900mm (Length*width*deep)
|
|
Packing dimension
|
2800*700*1100mm (Length*width*deep)
|
|
Gross weight of machine
|
150KG
|
|
Tank Capacity
|
160 Liter
|
|
Transducer of Ultrasonic Bath
|
36pcs
|
|
Ultrasonic Power
|
1800W
|
|
Heating Power
|
4500W
|
|
Time setting of Ultrasonic
|
0~99 hours
|
|
Temperature setting
|
Room temperature ~ 95°C / 203°F adjustable
|
|
Drain hole
|
On the bottom of inner tank
|
|
Water inlet/outlet
|
Yes; 1 inch
|
|
Generator
|
1pcs
|
|
Generator power control
|
1800W
|
|
Basket
|
Available
|
|
Length of power line
|
3 meters
|
|
Power supply
|
380V/220V 3 Phase; 400V; 415V; 600V is also available
|
|
Warranty
|
1 year
|
|
Certificate
|
CE; RoHS; FCC; REACH
|
|
Lead time
|
20 Working days
|
Industrial ultrasonic cleaner Timer: 0-99 hours adjustable timer
Industrial ultrasonic cleaner Heating temperature: 20-95℃ digital adjustable
Industrial ultrasonic cleaner Voltage: AC 100-120V, 50/60Hz or AC 220-240V, 50/60Hz
|
Model
|
Tank Size
|
Capacity
|
Transducers
|
Ultrasonic Power
|
Heating Power
|
|
(mm)
|
(Liters)
|
(pcs)
|
(W)
|
(W)
|
|
|
JTS-1036
|
2000×200×400
|
160
|
36
|
0-1800
|
4500
|
|
JTS-1060
|
2400×220×500
|
264
|
60
|
0-3000
|
6000
|
|
JTS-1072
|
3000×220×500
|
330
|
72
|
0-3600
|
9000
|
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007. With factory of a 6 floors building (10,000 square meters), Skymen owns a professional R&D team to keep the pace with international ultrasonic technology. In order to make sure the molding quality control, Skymen established its own mold injection department as well.
Ultrosonic Cleaner Production capactiy :
30000pcs /month for household ultrasonic bath;
10000pcs / month for stainless steel Industrial ultrasonic cleaner
Our Devices:
Sub-contract SMT factory, including Bending machine, Cutting plate maching, Turning machine, Milling machine, Grinding machine, EDM machine, Oven machine, Sand blaster, Injection Machine, Punching machine etc.
Test equipment : Hi pot tester Oscillometer , Dynamometer etc.
QUESTION: When should I consider adding ultrasonics to a cleaning process?
ANSWER: Usually, the answer is whenever parts are not getting clean enough using the current method. Ultrasonics become a MUST when cleaning issues are negatively impacting productivity, quality and/or the bottom line. Effective cleaning with ultrasonics has been proven in a wide range of industries ranging from microscopic medical devices to reconditioned locomotive shafts, from aerospace parts to parts prior to coating, and more.
Ultrasonics can be included in a new cleaning process or sometimes can be retrofitted into an existing process. In many cases, rejects due to residue on parts can be virtually eliminated with the addition of ultrasonics into clean and/or rinse stations in a properly-configured parts cleaning line.
QUESTION: What's advantage of Skymen industrial ultrasonic cleaner?
ANSWER: Skymen industrial ultrasonic cleaner is the best method to have thorough cleaning without damaging objects. It helps to remove stubborn dirt and oil from almost anything, make them look new once again. It's very safe and easy to operate, proves to be a best helping hand for you.
QUESTION: What is the optimized frenquency for cleaning our parts? ANSWER: Frequency is suggested based on contaminants in the objects. 28 KHz is stronger, better for car, motor, vessel parts cleaning(for removal of oil, grease,pastes) 40 KHz is better for main board and other electronic parts cleaning. The higher precision the cleaning object has, the higher frequency should be choosed.
QUESTION: How often should I change the cleaning fluid in my tank?
ANSWER: Changed whenever it becomes visibly too contaminated, or when the cleaning process is not as effective.
QUESTION: Why do I need to use a basket?
ANSWER: Basket would help to load objects together, and get better cleaning effect.
QUESTION: Will industrial ultrasonic cleaner damage parts?
ANSWER: Although the effect of thousands of implosions per second is powerful, the cleaning process is safe.
No damage to your daily objects.
QUESTION: What about the warranty and after sales service?
ANSWER: 1 Year warranty for Skymen industrial heat exchanger ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
