Product Details:
|
| Transducer: | 1152pcs | Ultrasonic Power: | 57600W |
|---|---|---|---|
| Heating Power: | 69000W | Chamber Capacity: | 8500L |
| Power Supply: | 380V 3 Phase | Generator: | 32pcs |
| High Light: | 8500L Ultrasonic Cleaning Machine,3mm Thickness Ultrasonic Cleaning Machine,SUS304 Heat Exchanger Ultrasonic Cleaner |
||
8500L Ultrasonic Cleaning Machine For Plate Heat Exchanger SUS304 Material
Ultrasonic cleaning of metal heat exchanger
It is well known that after the metal bar is extruded into a wire, the outer part of the wire often has a layer of carbonized film and oil. It is difficult to remove the dirt (especially the whole wire) by acid cleaning or other cleaning methods. The ultrasonic wire washing machine is According to the actual production needs, a continuous wire-cutting and high-efficiency cleaning equipment is used. The rough washing part is composed of a cleaning liquid storage tank, a transducer, a circulation pump, a filter and a matching piping system. After the wire is ultrasonically washed and washed, And then blow dry to complete the entire cleaning process. The integrated control of the whole set of equipment is simple, convenient and effective. It is widely used in other wires such as silk, tungsten wire, molybdenum wire, silk wire and copper wire (before the coating of insulating paint).
Detailed Specification of this machine:
|
1
|
Model
|
JP-11152ST
|
|
|
2
|
Parameter
|
Function
|
Ultrasonic cleaning
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
| Thickness of tank | 3mm | ||
|
Inner tank dimension
|
2500*2000*1700mm
|
||
|
Tank Capacity
|
8500L
|
||
|
Transducer
|
1152pcs
|
||
|
Ultrasonic Power
|
57600W
|
||
|
Heating Power
|
69000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Drain value
|
Available
|
||
|
Water inlet/outlet
|
Available
|
||
|
Generator
|
32 sets
|
||
| Generator power control | 1800W | ||
| Generator shelf | Available | ||
| Basket | Available | ||
|
Basket load
|
2000KG
|
||
|
3
|
Packing
|
Overall size
|
300*250*240cm
|
|
Packing size
|
310*260*250cm
|
||
| Packing detail | By wooden case(No logs, free of fumigation) | ||
|
N.W/G.W
|
5000KG/5300KG
|
||
| 4 | Power supply | 380V 3 phase; 220V 3 pahse; 415V; 600V | |
| 5 |
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Lead time
|
20~30 working days after deposit
|
|
| 7 | Optional functions | Filtration cycle system | Available; capture dirty water, recycle clean water |
| Lifting system for basket | Available; take the basket up and down | ||
| Dunking system | Available; Speed up cleaning | ||
| Bubbling | Available; need to connect air compressor | ||
| Electrolysis | Available; For cleaning more complex structure mold | ||
| Cooling system | Available; To cool down inflammable and explosive | ||
| Constant temperature | Available; | ||
| Roller barrel | Available; for clean coins and big quantity parts | ||
| Anti-explosion electric box | Available; | ||
| Deionized(DI) water | Available | ||
| Double/Multi frequency | Available; 28/40/20/68/80/132KHz | ||
| Other funtions | Negotiate via email |
Other size and capacity for reference:

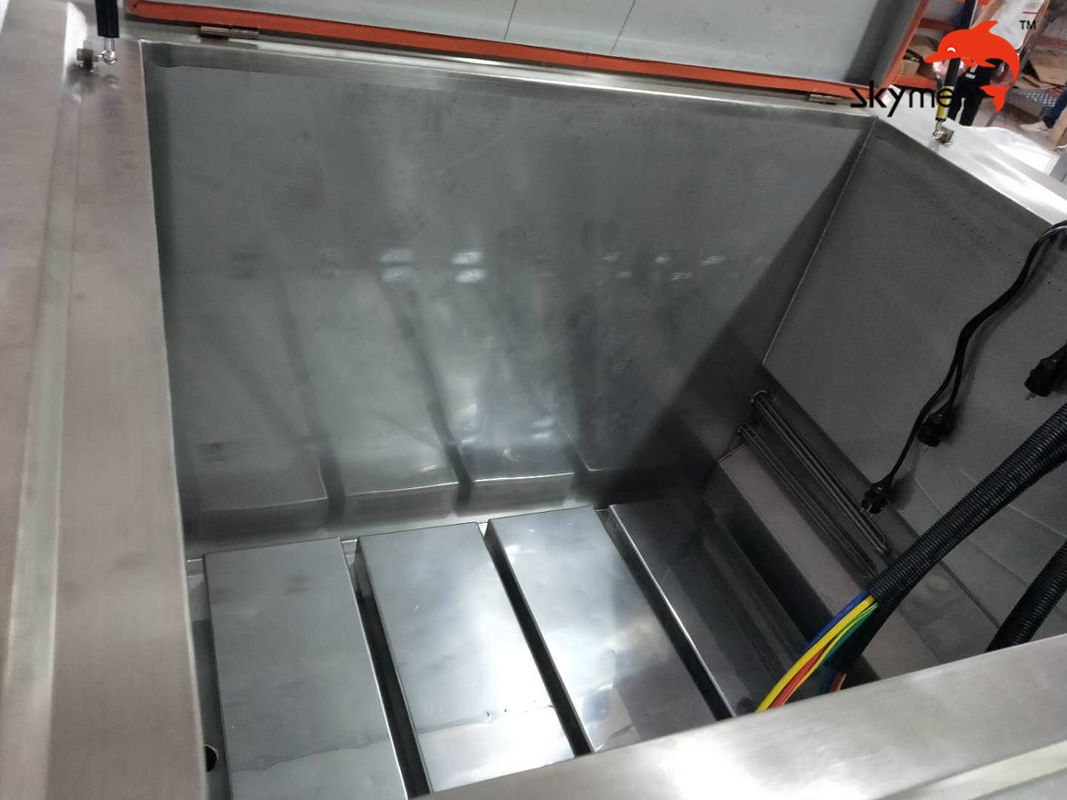

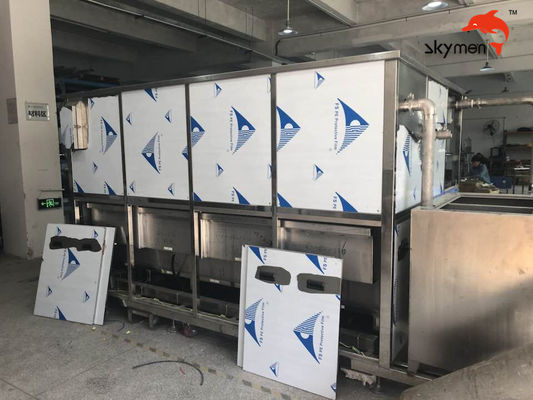

Product show:
Cleaning effect show:
