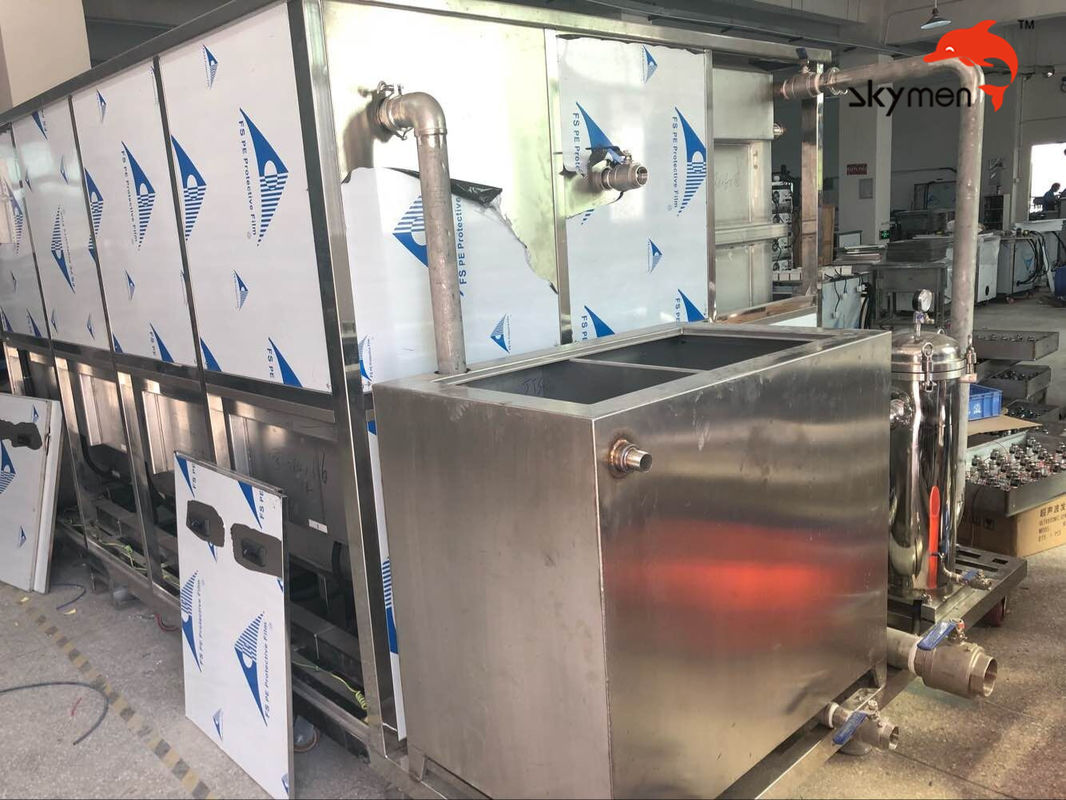

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser
2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser

Large Image :  2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser

Product Details:

Place of Origin: China
Brand Name: SKYMEN
Certification: CE, RoHs, FCC
Model Number: JP-1936ST

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 20~30 working days
Supply Ability: 100 pcs per month
Detailed Product Description
Tank Volume: 1923 Gallon Temperature Control: 20~95℃
Time Setting: 0~99 Hours Generator: 26pcs
Transducer: 936pcs Ultrasonic Power: 46800W
Heating Power: 66000W Caster: Yes
High Light:

2000 Gallon Ultrasonic Cleaning Bath

,

Large Condenser Ultrasonic Cleaning Bath

,

28KHz Ultrasonic Cleaner Machine

2000 Gallon Ultrasonic Bath For Large Condenser With Heating Power 28KHz





Detailed Specification of this machine:

1
Model
JP-1923ST
2
Parameter

Function
Ultrasonic cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)
Tank Material
SUS 304 (SUS 316 can be customized)
Thickness of tank 3mm
Inner tank dimension
3500*1600*1300mm
Tank Capacity
7280L
Transducer
936pcs
Ultrasonic Power
46800W
Heating Power
66000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Drain value
Available
Water inlet/outlet
Available
Generator
26 sets
Generator power control 1800W
Generator shelf Available
Basket Available
Basket load
2000KG
3
Packing
Overall size
390*200*200cm
Packing size
400*210*210cm
Packing detail By wooden case(No logs, free of fumigation)
N.W/G.W
4000KG/4300KG
4 Power supply 380V 3 phase; 220V 3 pahse; 415V; 600V
5
Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Lead time
20~30 working days after deposit
7 Optional functions Filtration cycle system Available; capture dirty water, recycle clean water
Lifting system for basket Available; take the basket up and down
Dunking system Available; Speed up cleaning
Bubbling Available; need to connect air compressor
Electrolysis Available; For cleaning more complex structure mold
Cooling system Available; To cool down inflammable and explosive
Constant temperature Available;
Roller barrel Available; for clean coins and big quantity parts
Anti-explosion electric box Available;
Deionized(DI) water Available
Double/Multi frequency Available; 28/40/20/68/80/132KHz
Other funtions Negotiate via email





2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 0


Other size and capacity for reference:

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 1


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 2


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 3


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 4


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 5


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 6


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 7


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 8


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 9


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 10


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 11


2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 12


Product show:

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 132000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 142000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 15


Cleaning effect show:

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 16

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 17


Skymen Cleaning Equipment Shenzhen CO., Ltd.

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 18

2000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 192000 Gallon Ultrasonic Cleaning Bath 28KHz For Large Condenser 20


Ultrasonic Cleaning Machine for Condenser

The water chiller is prone to scale formation in the condenser pipe after long-term use. If it is not treated in time, the scale will affect the heat exchange effect and cause the condensing temperature of the unit to increase, which in turn leads to a decrease in the cooling capacity and an increase in the power consumption of the unit. .
In general, the condenser of an industrial chiller should be cleaned frequently.
Chemical cleaning method:
Chemical cleaning mainly uses cleaning fluid for cleaning. Firstly, acid solution is used for cleaning, then alkaline solution is used for neutralization and cleaning, and finally clean water is used to rinse off acid and alkaline solutions.
1. A circulating pump and pipeline can be connected between the cleaning liquid storage tank and the condenser to form a closed loop, so that the cleaning liquid can be circulated continuously for 12-24 hours to dissolve and fall off the sediment.
2. The cleaning fluid can be added to the cooling water system in a certain proportion, and the cooling pump is turned on for 12-24 hours. The sediment layer is continuously dissolved and peeled off by the chemical action and scouring action of the cleaning fluid. However, this method requires a lot of cleaning potions, and the cost is high.
3. Mix the cleaning liquid in a certain proportion, add it to the condenser and let it stand for 5-10 hours to soften and dissolve the sediment, drain the cleaning liquid, and rinse with clean water.
The advantage of chemical cleaning is thorough descaling, reducing the workload of workers, but the disadvantage is that the cleaning liquid may cause corrosion to the condenser copper pipe, the waste liquid discharge problem after cleaning, and the price of the cleaning liquid is relatively expensive.
Physical cleaning method:
Physical cleaning mainly uses flexible shaft brush cleaning. The flexible shaft is driven by the motor of the washing machine to rotate. There is a nylon brush at the front of the flexible shaft. When in use, the flexible shaft and brush are extended into the copper tube of the condenser, and the brush is rotated at high speed to remove the inside of the copper tube. The dirt is finally rinsed with clean water. This kind of machine is called a gun machine.
The advantage of physical cleaning is that it saves the cost of chemical cleaning liquid, avoids the disposal of waste liquid after chemical cleaning, and is not easy to cause corrosion of the condenser copper pipe. The disadvantage is that the cleaning effect is not good for hard scale and corrosion products with strong adhesion. Good, and the cleaning operation is time-consuming and laborious.
Two common methods for removing condenser scale in water chillers

Ultrasonic cleaning uses a combination of chemical cleaning and physical cleaning
Inject water into the ultrasonic tank, add a certain proportion of mild chemical cleaning agent, and immerse the entire condenser in the ultrasonic cleaning tank. The ultrasonic high-frequency oscillation can quickly peel off the dirt on the condenser without causing any damage to the condenser
