32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe

China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe

32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe
32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe

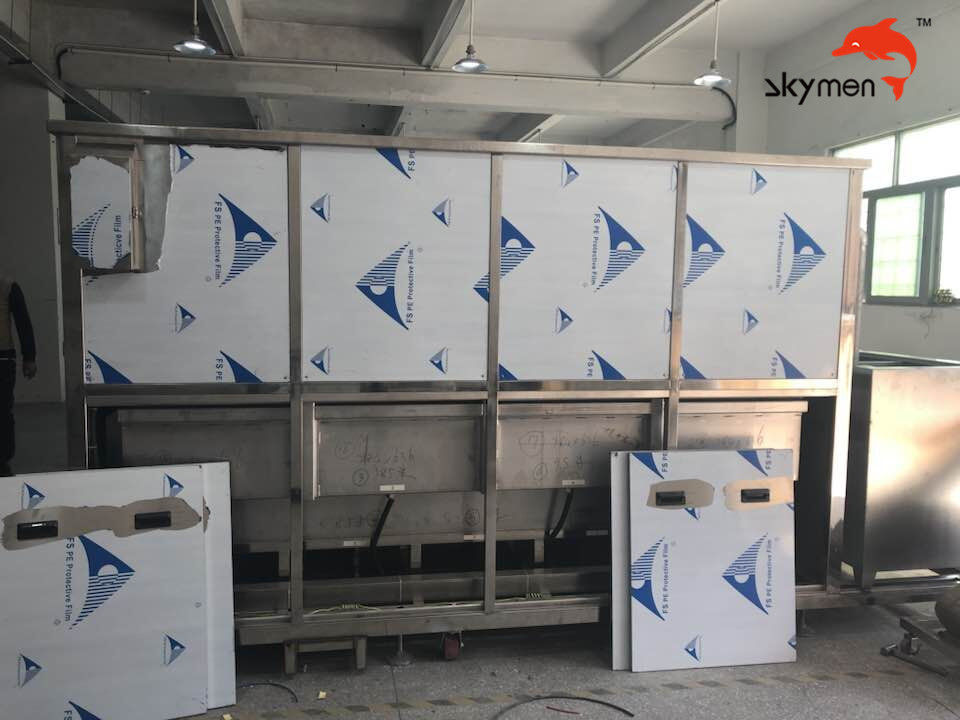

Large Image :  32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe

Product Details:

Place of Origin: China
Brand Name: SKYMEN
Certification: CE, RoHs, FCC
Model Number: JP-1648ST

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 20~30 working days
Supply Ability: 100 pcs per month
Detailed Product Description
Machine Tank Capacity: 5400L Ultrasonic Frequency: 28/40KHz
Tank Size: 3000*1500*1200mm Transducer: 648pcs
Ultrasonic Power: 32400W Heating Power: 6300W
High Light:

Carbon Steel Pipe Ultrasonic Washing Machine

,

5500L Ultrasonic Washing Machine

,

32400W Stainless Steel Ultrasonic Cleaner

5500L Ultrasonic Washing Machine For Carbon Steel Pipe 32400W


Ultrasonic Cleaning Machine for Carbon Steel Pipe

After the carbon steel pipeline is used for a long time, the oil, dust, acid, alkali, and salt attached to the inner wall and standard surface of the pipeline are transformed into corrosive media under certain conditions, and chemically reacts with certain components in the carbon steel, resulting in chemical corrosion While rusty
When ultrasonic cleaning carbon steel pipes, the entire pipe needs to be immersed in the ultrasonic tank, and water and a certain proportion of chemical cleaning agent are added as the cleaning medium, so that the cleaning fluid can contact all corners of the inner wall of the pipe. Peel off the attached rust and dirt, so as to achieve the cleaning effect. There is no damage to the carbon steel pipes. The cleaning time is about 10~30 minutes. Multiple pipes can be cleaned at one time. The size of the ultrasonic cleaning tank is determined by the length of the pipe and the cleaning volume at one time.




Detailed Specification of this machine:

1
Model
JP-1648ST
2
Parameter

Function
Ultrasonic cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)
Tank Material
SUS 304 (SUS 316 can be customized)
Thickness of tank 3mm
Inner tank dimension
3000*1500*1200mm
Tank Capacity
5400L
Transducer
648pcs
Ultrasonic Power
32400W
Heating Power
63000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Drain value
Available
Water inlet/outlet
Available
Generator
18 sets
Generator power control 1800W
Generator shelf Available
Basket Available
Basket load
900KG
3
Packing
Overall size
350*170*210cm
Packing size
360*190*230cm
Packing detail By wooden case(No logs, free of fumigation)
N.W/G.W
1500KG/1600KG
4 Power supply 380V 3 phase; 220V 3 pahse; 415V; 600V
5
Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Lead time
20~30 working days after deposit
7 Optional functions Filtration cycle system Available; capture dirty water, recycle clean water
Lifting system for basket Available; take the basket up and down
Dunking system Available; Speed up cleaning
Bubbling Available; need to connect air compressor
Electrolysis Available; For cleaning more complex structure mold
Cooling system Available; To cool down inflammable and explosive
Constant temperature Available;
Roller barrel Available; for clean coins and big quantity parts
Anti-explosion electric box Available;
Deionized(DI) water Available
Double/Multi frequency Available; 28/40/20/68/80/132KHz
Other funtions Negotiate via email





32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 0


Other size and capacity for reference:

32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 1


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 2


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 3


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 4


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 5


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 6


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 7


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 8


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 9


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 10


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 11


32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 12


Product show:

32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 1332400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 1432400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 1532400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 1632400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 1732400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 1832400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 19


Cleaning effect show:

32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 20

32400W 5500L Ultrasonic Washing Machine For Carbon Steel Pipe 21
