Product Details:
|
| Machine Tank Capacity: | 4500L | Frequenncy: | 28KHz |
|---|---|---|---|
| Tank Size: | 2500*1500*1200mm | Transducer: | 576pcs |
| Ultrasonic Power: | 28800W | Heating Power: | 6300W |
| High Light: | Graphite Crucible Ultrasonic Washing Machine,4500L Ultrasonic Washing Machine,FCC Ultrasonic Cleaner Machine |
||
4500L Ultrasonic Washing Machine For graphite crucible with Heating Power
Ultrasonic Cleaning Machine For graphite crucible
Although graphite crucible has the characteristics of high bulk density, high temperature resistance, fast heat transfer, acid and alkali corrosion resistance, high temperature resistance, oxidation resistance, etc., for the refining of a single raw material, the cleaning work after using the crucible is very troublesome.
Ultrasonic cleaning + cleaning agent cleaning
The first task of cleaning the graphite crucible is to remove the chemicals in the crucible and then clean it. We need to decide what to clean based on what remains in the graphite crucible. Generally speaking, the binder on the graphite crucible is the residue of inorganic combustion. We can clean with hydrochloric acid, most of which are soluble, and some carbon-containing residues cannot be dissolved with hydrochloric acid. Nitric acid is highly oxidizing, it can be heated appropriately during cleaning, and ultrasonic cavitation can quickly peel off dirt
Graphite crucibles need to be kept clean and bright inside and out. After a long period of burn, the appearance of the crucible may be blurred, and the inside will go deep into the inside, causing the crucible to be fragile and cracked, so the unclean materials must be removed. If the surface is still stained or black, use fine sand with no edges and corners and gently wipe with water to restore the surface gloss.
Detailed Specification of this machine:
|
1
|
Model
|
JP-1576ST
|
|
|
2
|
Parameter
|
Function
|
Ultrasonic cleaning
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
| Thickness of tank | 3mm | ||
|
Inner tank dimension
|
2500*1500*1200mm
|
||
|
Tank Capacity
|
4500L
|
||
|
Transducer
|
576pcs
|
||
|
Ultrasonic Power
|
28800W
|
||
|
Heating Power
|
63000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Drain value
|
Available
|
||
|
Water inlet/outlet
|
Available
|
||
|
Generator
|
16 sets
|
||
| Generator power control | 1800W | ||
| Generator shelf | Available | ||
| Basket | Available | ||
|
Basket load
|
700KG
|
||
|
3
|
Packing
|
Overall size
|
290*170*210cm
|
|
Packing size
|
300*190*230cm
|
||
| Packing detail | By wooden case(No logs, free of fumigation) | ||
|
N.W/G.W
|
1200KG/1400KG
|
||
| 4 | Power supply | 380V 3 phase; 220V 3 pahse; 415V; 600V | |
| 5 |
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Lead time
|
20~30 working days after deposit
|
|
| 7 | Optional functions | Filtration cycle system | Available; capture dirty water, recycle clean water |
| Lifting system for basket | Available; take the basket up and down | ||
| Dunking system | Available; Speed up cleaning | ||
| Bubbling | Available; need to connect air compressor | ||
| Electrolysis | Available; For cleaning more complex structure mold | ||
| Cooling system | Available; To cool down inflammable and explosive | ||
| Constant temperature | Available; | ||
| Roller barrel | Available; for clean coins and big quantity parts | ||
| Anti-explosion electric box | Available; | ||
| Deionized(DI) water | Available | ||
| Double/Multi frequency | Available; 28/40/20/68/80/132KHz | ||
| Other funtions | Negotiate via email |
Other size and capacity for reference:

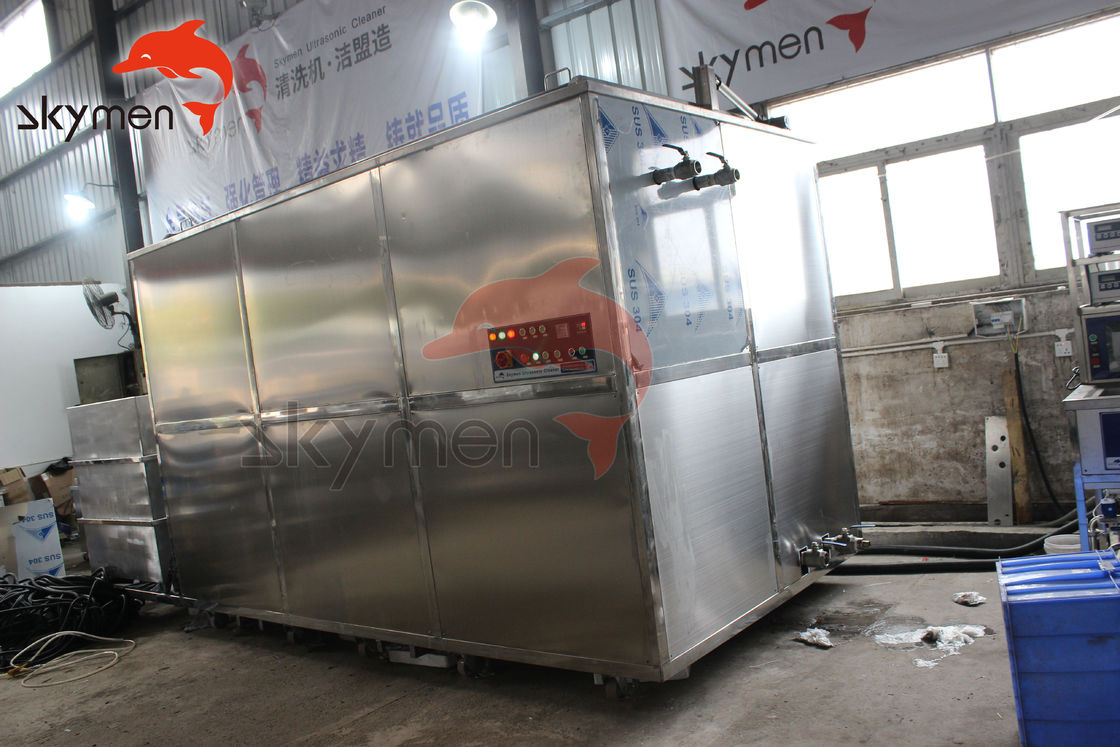

Product show:
Cleaning effect show:
