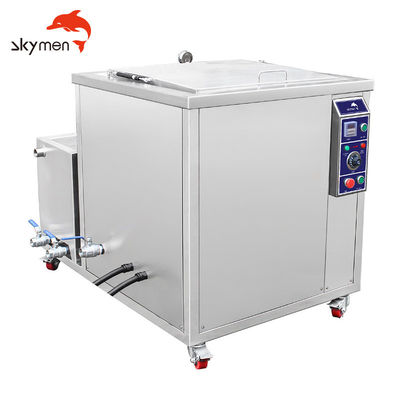

Ultrsonic Cleaning Machine 264L For Rubber Molds with 6000W Heating
Specification:
| Model |
JP-600G |
| Tank Volume |
264L |
| Internal tank size |
800X600X550mm |
| Transducers |
60pcs 50W of every transducer |
| Ultrasonic Power |
3000W |
| Heating Power |
6000W |
| Frenquency |
28KHz/40KHz |

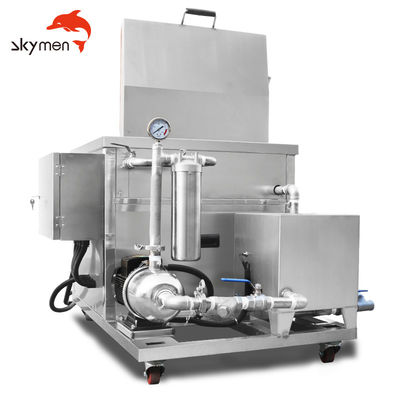

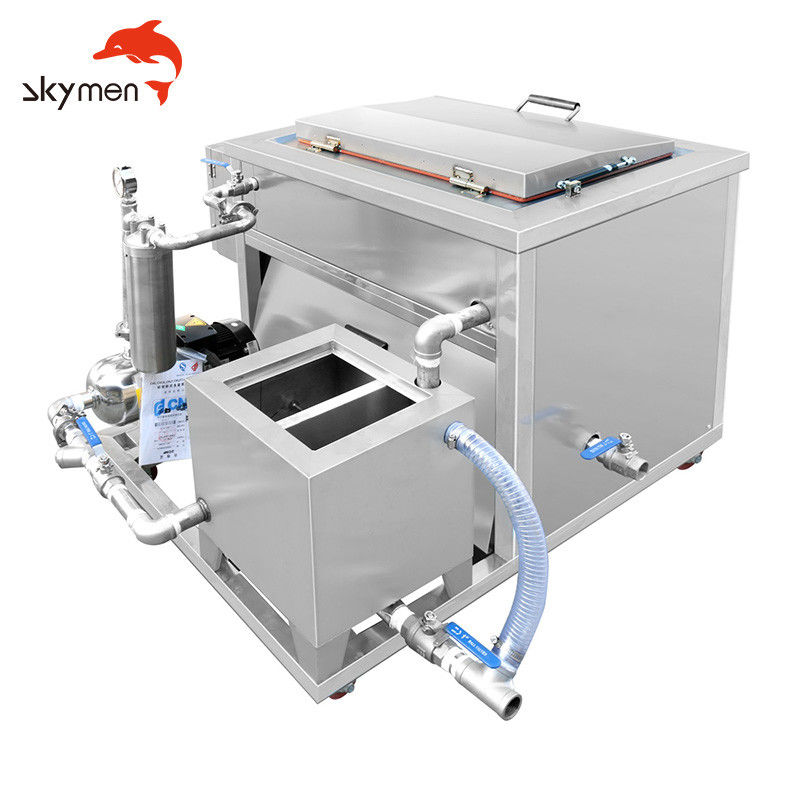

| Filtration Cycle System |
1 set |
| Unit size |
1100*1250*950mm |
| Packing size |
1180*1350*1100mm |
| Timer |
0~99 minutes adjustable |
| Heater |
Room temperature~99℃ adjustable |
| Shell material |
SUS 201 |
| Shell thickness |
1mm |
| Tank thickness |
2mm |
| Tank Material |
SUS304 default, can be SUS316 |
| Power Supply |
AC 110V ; AC 220V |
| N.W. |
280KG |
| G.W. |
300KG Wrapped by film in wooden case |
| Lead time |
12 working days |
| Warranty |
1 year warranty period, technique support all time |
| Certificates |
CE, RoHS, FCC, SGS |
| Advantage |
Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Same series with different size:
| Model |
Tank size |
Volume |
Ultrasonic
Power |
Heating
Power |
Transducer |
| L*W*H (mm) |
(L) |
(W) |
(W) |
(pcs) |
| JP-120G |
500X300X250 |
38L |
600W |
1500W |
12pcs |
| JP-180G |
500X350X300 |
53L |
900W |
1500W |
18pcs |
| JP-240G |
550X400X350 |
77L |
1200W |
3000W |
24pcs |
| JP-300G |
550X450X400 |
99L |
1500W |
3000W |
30pcs |
| JP-301G |
800X300X400 |
96L |
1500W |
3000W |
30pcs |
| JP-360G |
600X500X450 |
135L |
1800W |
4500W |
36pcs |
| JP-480G |
700X500X500 |
175L |
2400W |
6000W |
48pcs |
| JP-600G |
800X600X550 |
246L |
3000W |
6000W |
60pcs |
| JP-720G |
1000X600X600 |
360L |
3600W |
9000W |
72pcs |
| JP-1108G |
1000X900X600 |
540L |
5400W |
18000W |
108pcs |
| JP-1144G |
1200X1000X800 |
960L |
7200W |
27000W |
144pcs |
Features
1. Digital LED screen display
2. Fast and effective cleaning, convenient for users
3. Clean rings, earrings, necklaces, new features of diamonds,
4. Use only tap water or add a small amount of detergent for better cleaning
5. The cleaning effect is obvious
6. Cleaning items shine like new ones
7. Compact cover design to reduce noise
Cleaning Effect show:
Working Principle:
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
Remark:
1. tank size and other functions can be custom made
2. customer logo is acceptable
3. packing by wooden case
4. lead time is negotiable according to qty. and custom made requirements
FAQ
Q: What's the advantage of Skymen ultrasonic cleaner?
A: Skymen ultrasonic cleaner is the best way to have thorough cleaning without damaging objects. It helps to remove stubborn dirt and dust from the watch, eyeglasses, jewelry, etc, make them look new once again. It's very safe and easy to operate, proves to be the best helping hand for you at home.
Q: How often should I change the cleaning fluid in my tank?
A: Changed whenever it becomes visibly too contaminated, or when the cleaning process is not as effective.
Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get a better cleaning effect.
Q:Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What about the warranty?
A: 1 Year warranty for Skymen ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
