FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB

FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB
FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB

Large Image :  FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-080S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 1unit per box
Delivery Time: In Stock
Supply Ability: 8000 pcs per month

FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB

Description
Model: JP-080S Frequency: 40KHz
Capacity: 5.81 Gallon, 22L Tank Size: 12*9*6 Inch, 500*300*150mm
Ultrasonic Power: 480W/240W Adjustable Heating Power: 500W
Material: SUS304 G.W: 14KG
Degas Function: Yes Semi-wave: Yes
Use: Degreasing, Critical Cleaning / Residue Free, Dental, Sterilizing / Disinfecting, Descaling / Stripping Condition: New
Cleaning Process: Solvent Cleaning, Hot Water Cleaning, Cold Water Cleaning, Multiple Cleaning Media, Alcohol Or Solvent As Cleaning Liquid.
High Light:

22L Portable Ultrasonic Cleaner

,

5.81 Gallon Portable Ultrasonic Cleaner

,

FCC Printing Screen Ultrasonic Cleaner

5.81 Gallon 22L Portable Ultrasonic Cleaner For Printing Screen Stencil



Model of Portable Ultrasonic Cleaner JP-080S
Ultrasonic Frequency 40KHz
Transducer Quantity 8pcs
Ultrasonic Power 480/240W
Heating Power 500W
Tank Capacity Portable Ultrasonic Cleaner 22L/5.81Gallon
Tank Size 500*300*150mm
Machine size 585*330*280mm
Packing size 690*460*360mm
Net weight 14KG
Gross weight 15KG

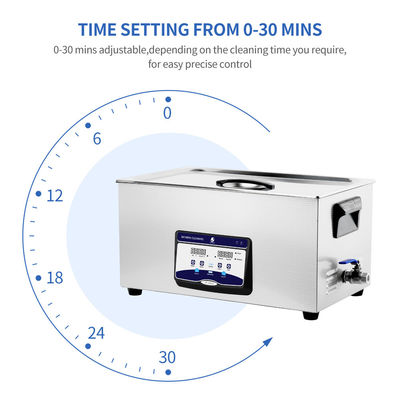

Time Range Portable Ultrasonic Cleaner 0~30 minutes
Temperature Range Room temperature~80℃/176℉
Tank material SUS304
Tank thickness 1.1mm
Shell thickness 0.8mm

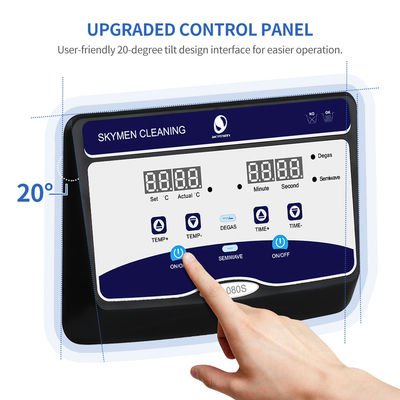

Slope panel degree 20°
Noisy of Portable Ultrasonic Cleaner Slight
Drain Valve
General switch
Degas
Semi-wave
Lid
Basket
Voltage 110V; 220V
Plug European Plug; US plug; Austrslian Plug; British Plu
Detergent suggestion No stronger acid or alkali
OEM Yes
OEM MOQ 20pcs
Origin of Portable Ultrasonic Cleaner Guangdong China
Business category Manufacturer
Lead time 7 days after payment if order quantity is below 20pcs
Payment term By cash; by credit card; by Paypal
Warranty of Portable Ultrasonic Cleaner 1 year

(1) Machinery industry: removal of anti-rust grease; cleaning of measuring tools; degreasing and rust removal of mechanical parts; cleaning of engines, carburetors and auto parts; dredging and cleaning of filters and screens, etc.
(2) Surface treatment industry: degreasing and rust removal before electroplating; cleaning before ion plating; phosphating treatment; removing carbon deposits; removing oxide scale; removing polishing paste; surface activation treatment of metal workpieces, etc.
(3) Instrumentation industry: high cleanliness of precision parts, cleaning before assembly, etc.
(4) Electronic industry: Removal of rosin and solder spots on printed circuit boards; cleaning of mechanical and electronic parts such as high voltage contacts.
(5) Medical industry: cleaning, disinfection, sterilization of medical equipment, cleaning of laboratory utensils, etc.
(6) Semiconductor industry: high cleanliness cleaning of semiconductor wafers.
(7) Watch first and decoration industry: remove sludge, dust, oxide layer, polishing paste, etc.
(8) Chemical and biological industries: cleaning and descaling of laboratory utensils.
(9) Optical industry: degreasing, sweating and dust removal of optical devices.
(10) Textile printing and dyeing industry: cleaning textile spindles, spinnerets, etc.
(11) Petrochemical industry: cleaning and dredging of metal filters, cleaning of chemical containers, exchangers, etc.

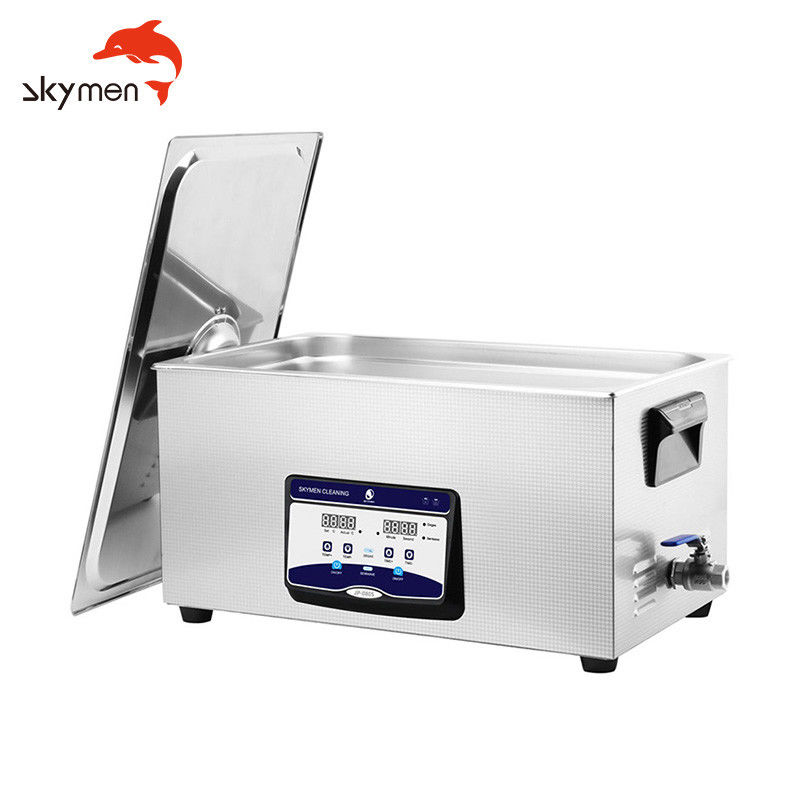

Product Show of Portable Ultrasonic Cleaner:

FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 0



Application Area:

FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 1FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 2FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 3



Stainless Bench Top
FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 4
Model Capacity Tank Size Ultrasonic Power Heating Power Frequency Tank thickness Material
(L) (L*W*H)mm (W) (W) (KHz) (mm) SUS304
JP-008 0.8 150*85*65 35 0 40 1 SUS304
JP-009 0.9 150*135*65 60 100 40 1 SUS304
JP-010T 2 150*165*100 60 100 40 1 SUS304
JP-020S 3.2 240*135*100 120 100 40 1 SUS304
JP-030S 4.5 300*150*100 180 200 40 1 SUS304
JP-031S 6.5 300*150*150 180 200 40 1 SUS304
JP-040S 10 300*240*150 240 200 40 1 SUS304
JP-060S 15 330*300*150 360 300 40 1 SUS304
JP-080S 22 500*300*150 480 500 40 1 SUS304
JP-100S 30 500*300*200 600 500 40 1 SUS304



Industrial Ultrasonic Cleaning Machine
FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 5
Model Capacity Tank Size Transducers Ultrasonic Power Heating Power Tank thickness Frequency
(L) (L*W*H)mm (pcs) (W) (W) (mm) (KHz)
JP-120ST 38 500X300X250 12 600 1500 2 28/40
JP-180ST 53 500X350X300 18 900 1500 2 28/40
JP-240ST 77 550X400X350 24 120 3000 2 28/40
JP-300ST 99 550X450X400 30 1500 3000 2 28/40
JP-301ST 99 800X300X400 30 1500 3000 2 28/40
JP-360ST 135 600X500X450 36 1800 4500 2 28/40
JP-480ST 175 700X500X500 48 2400 6000 2 28/40
JP-600ST 264 800X600X550 60 3000 6000 2 28/40
JP-720ST 360 1000X600X600 72 3600 9000 2 28/40
JP-1108ST 540 1000X900X600 108 5400 18000 2 28/40
JP-1144ST 960 1200X1000X800 144 7200 27000 2 28/40

Immersible Transducer Plate
Image:
FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 6FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 7
Model Plate Size Transducers Ultrasonic Power Generator Suitable tank
(L*W*H)mm (pcs) (W) (set) (L)
JP-1006I 305*205*100 6 300 1 10~15
JP-1012I 355*305*100 12 600 1 30~40
JP-1018I 340*280*100 18 900 1 60~70
JP-1024I 430*280*100 24 1200 1 70~80
JP-1030I 460*370*100 30 1500 1 90~100
JP-1036I 550*450*100 36 1800 1 130~140
JP-1048I 600*450*100 48 2400 2 170~180

Immersible Transducer Tube
Image:
FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 8FCC 5.81 Gallon 22L Portable Ultrasonic Cleaner for PCB 9
Model Tube Size Transducers Ultrasonic Power Generator Length of wire
(D*H)mm (pcs) (W) (set) (M)
JM-1003 57*180 3 150 1 1.5
JM-1006 57*300 6 300 1 1.5
JM-1012 57*550 12 600 1 1.5
JM-1018 57*750 18 900 1 1.5
JM-1024 57*1000 24 1200 1 1.5
JM-1036 57*1520 36 1800 1
Immersible Transducer Plate/tube can be put in any tank, but it doesn't have heating function.
The price of tube is much higher than plate, Ultrasonic Tube is only used for special purpose, such as in Lab.
Portable Ultrasonic Cleaner
