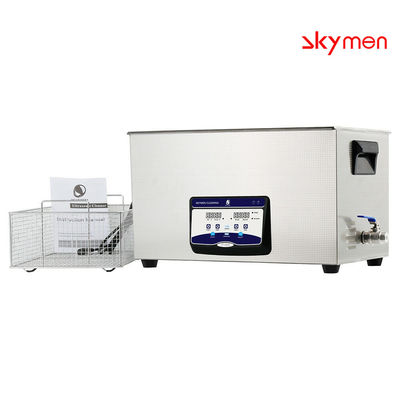

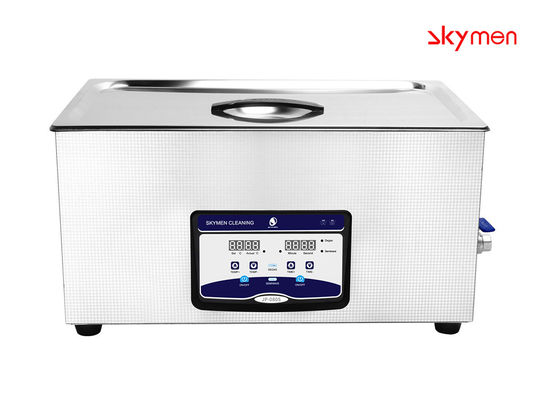

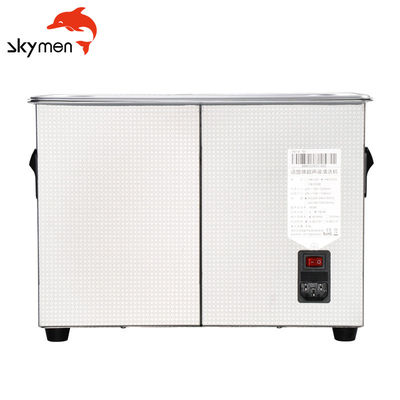

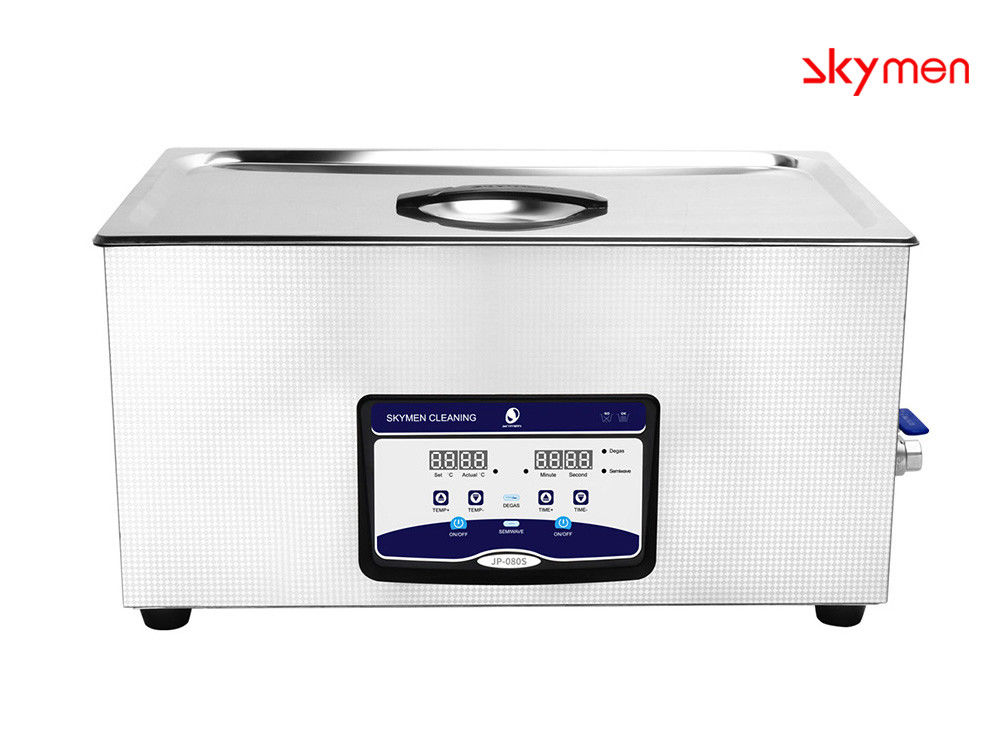

US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB

US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB
US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB

Large Image :  US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-080S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 1unit per box
Delivery Time: In Stock
Supply Ability: 8000 pcs per month
Contact Now

US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB

Description
Frequency: 40KHz Capacity: 5.81 Gallon
Tank Size: 12*9*6 Inch Ultrasonic Power: 480W/240W
Heating Power: 500W Material: SUS304
G.W: 14KG Temperature Control: 20~80℃
High Light:

Benchtop Ultrasonic Cleaner 0.8mm Shell

,

US Plug Benchtop Ultrasonic Cleaner

,

480W PCB Ultrasonic Cleaner

480W 20L Ultrasonic Cleaner For Welding Spot of PCB With 500W Heating Power

Model JP-080S
Ultrasonic Frequency 40KHz
Transducer Quantity 8pcs
Ultrasonic Power 480/240W
Heating Power 500W
Tank Capacity 22L/5.81Gallon

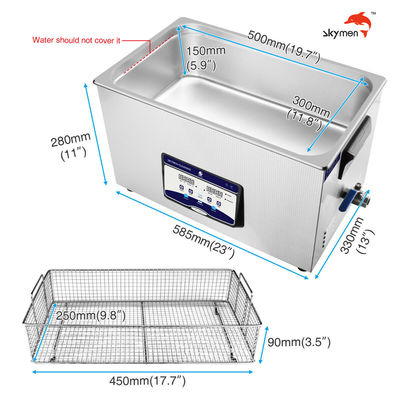

Tank Size 500*300*150mm
Machine size 585*330*280mm
Packing size 690*460*360mm
Net weight 14KG
Gross weight 15KG
Time Range 0~30 minutes
Temperature Range Room temperature~80℃/176℉
Tank material SUS304
Tank thickness 1.1mm
Shell thickness 0.8mm
Slope panel degree 20°
Noisy Slight
Drain Valve ✓
General switch ✓
Degas ✓
Semi-wave ✓
Lid ✓
Basket ✓
Voltage 110V; 220V
Plug European Plug; US plug; Austrslian Plug; British Plu
Detergent suggestion No stronger acid or alkali
OEM Yes
OEM MOQ 20pcs
Origin Guangdong China
Business category Manufacturer
Lead time 7 days after payment if order quantity is below 20pcs
Payment term By cash; by credit card; by Paypal
Warranty 1 year



The composition of the ultrasonic cleaning machine: The ultrasonic cleaning machine is mainly composed of an ultrasonic cleaning tank and an ultrasonic generator. The ultrasonic cleaning tank is made of high-quality stainless steel with strong elasticity and corrosion resistance. The bottom is equipped with an ultrasonic transducer vibrator; the ultrasonic generator generates high frequency and high voltage, which is transmitted to the transducer through the cable connection line, and the transducer and the vibration plate are together Generate high-frequency resonance, so that the solvent in the cleaning tank will be cleaned of dirt by ultrasonic action.

US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 0



Product Show:



US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 1US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 2US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 3US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 4

US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 5

Application Area:

US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 6US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 7US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 8US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 9US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 10

US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 11

Stainless Bench Top
US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 12
Model Capacity Tank Size Ultrasonic Power Heating Power Frequency Tank thickness Material
(L) (L*W*H)mm (W) (W) (KHz) (mm) SUS304
JP-008 0.8 150*85*65 35 0 40 1 SUS304
JP-009 0.9 150*135*65 60 100 40 1 SUS304
JP-010T 2 150*165*100 60 100 40 1 SUS304
JP-020S 3.2 240*135*100 120 100 40 1 SUS304
JP-030S 4.5 300*150*100 180 200 40 1 SUS304
JP-031S 6.5 300*150*150 180 200 40 1 SUS304
JP-040S 10 300*240*150 240 200 40 1 SUS304
JP-060S 15 330*300*150 360 300 40 1 SUS304
JP-080S 22 500*300*150 480 500 40 1 SUS304
JP-100S 30 500*300*200 600 500 40 1 SUS304



Industrial Ultrasonic Cleaning Machine
US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 13
Model Capacity Tank Size Transducers Ultrasonic Power Heating Power Tank thickness Frequency
(L) (L*W*H)mm (pcs) (W) (W) (mm) (KHz)
JP-120ST 38 500X300X250 12 600 1500 2 28/40
JP-180ST 53 500X350X300 18 900 1500 2 28/40
JP-240ST 77 550X400X350 24 120 3000 2 28/40
JP-300ST 99 550X450X400 30 1500 3000 2 28/40
JP-301ST 99 800X300X400 30 1500 3000 2 28/40
JP-360ST 135 600X500X450 36 1800 4500 2 28/40
JP-480ST 175 700X500X500 48 2400 6000 2 28/40
JP-600ST 264 800X600X550 60 3000 6000 2 28/40
JP-720ST 360 1000X600X600 72 3600 9000 2 28/40
JP-1108ST 540 1000X900X600 108 5400 18000 2 28/40
JP-1144ST 960 1200X1000X800 144 7200 27000 2 28/40

Immersible Transducer Plate
Image:
US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 14US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 15
Model Plate Size Transducers Ultrasonic Power Generator Suitable tank
(L*W*H)mm (pcs) (W) (set) (L)
JP-1006I 305*205*100 6 300 1 10~15
JP-1012I 355*305*100 12 600 1 30~40
JP-1018I 340*280*100 18 900 1 60~70
JP-1024I 430*280*100 24 1200 1 70~80
JP-1030I 460*370*100 30 1500 1 90~100
JP-1036I 550*450*100 36 1800 1 130~140
JP-1048I 600*450*100 48 2400 2 170~180

Immersible Transducer Tube
Image:
US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 16US Plug Benchtop Ultrasonic Cleaner 0.8mm Shell 480W For PCB 17
Model Tube Size Transducers Ultrasonic Power Generator Length of wire
(D*H)mm (pcs) (W) (set) (M)
JM-1003 57*180 3 150 1 1.5
JM-1006 57*300 6 300 1 1.5
JM-1012 57*550 12 600 1 1.5
JM-1018 57*750 18 900 1 1.5
JM-1024 57*1000 24 1200 1 1.5
JM-1036 57*1520 36 1800 1
Immersible Transducer Plate/tube can be put in any tank, but it doesn't have heating function.
The price of tube is much higher than plate, Ultrasonic Tube is only used for special purpose, such as in Lab.
