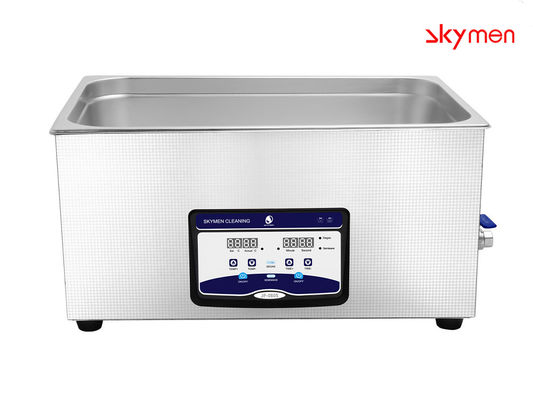

480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit

480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit
480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit

Large Image :  480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-080S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 1unit per box
Delivery Time: In Stock
Supply Ability: 8000 pcs per month

480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit

Description
Model: JP-080S Frequency: 40KHz
Capacity: 5.81 Gallon Tank Size: 12*9*6 Inch
Ultrasonic Power: 480W/240W Heating Power: 500W
Material: SUS304 G.W: 14KG
High Light:

20L Table Top Ultrasonic Cleaner

,

480W Table Top Ultrasonic Cleaner

,

SUS304 Integrated Circuit Ultrasonic Cleaner

20L Ultrasonic Cleaning Machine For Integrated Circuit 50*30*15cm Size

Model JP-080S
Ultrasonic Frequency 40KHz

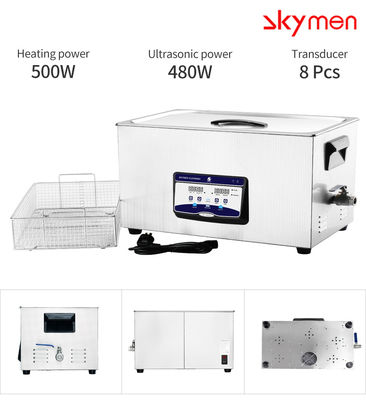

Transducer Quantity 8pcs
Ultrasonic Power 480/240W
Heating Power 500W
Tank Capacity 22L/5.81Gallon

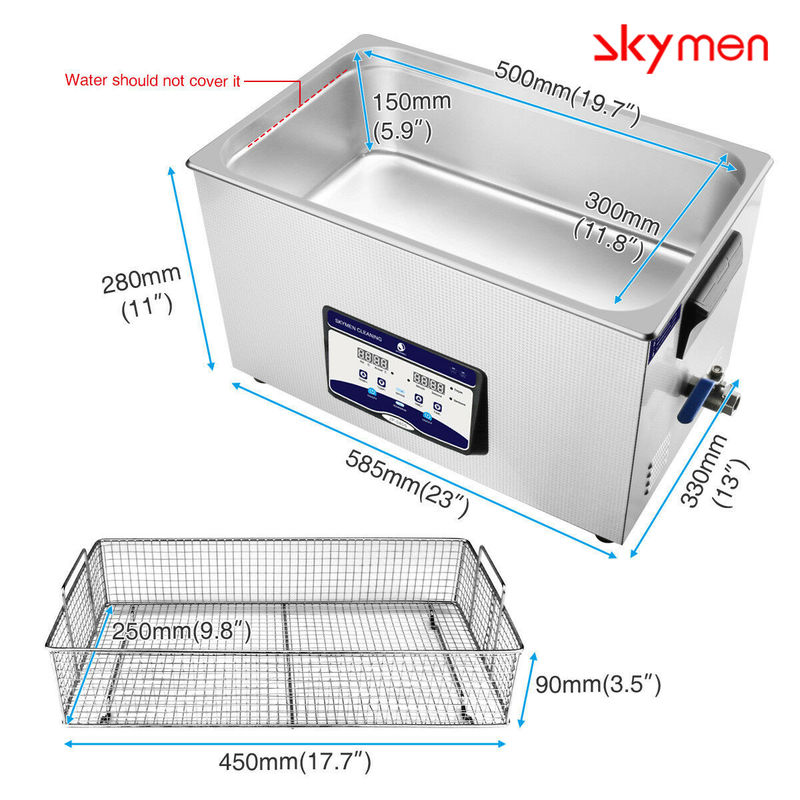

Tank Size 500*300*150mm
Machine size 585*330*280mm
Packing size 690*460*360mm
Net weight 14KG
Gross weight 15KG
Time Range 0~30 minutes
Temperature Range Room temperature~80℃/176℉
Tank material SUS304
Tank thickness 1.1mm
Shell thickness 0.8mm
Slope panel degree 20°
Noisy Slight

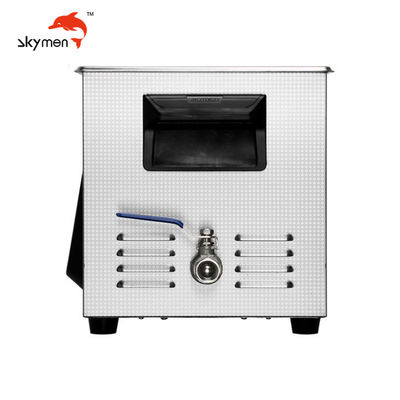

Drain Valve
General switch
Degas
Semi-wave
Lid
Basket
Voltage 110V; 220V
Plug European Plug; US plug; Austrslian Plug; British Plu
Detergent suggestion No stronger acid or alkali
OEM Yes
OEM MOQ 20pcs
Origin Guangdong China
Business category Manufacturer
Lead time 7 days after payment if order quantity is below 20pcs
Payment term By cash; by credit card; by Paypal
Warranty 1 year

 Some methods of ultrasonic cleaning machine cleaning circuit boards, and some skills. Some things to pay attention to when cleaning, as well as the maintenance methods of the later machine.
Tools/materials: a stainless steel ultrasonic cleaning machine, washing water, dirty circuit boards, a cleaning basket
1. Prepare an ultrasonic cleaning machine. The machine must be made of all stainless steel. Washing water will be a bit corrosive when cleaning the circuit boards. If the machine with a plastic shell is used, it will be corroded and the manufacturer will not give it. Warranty.
2. Prepare a dirty circuit board with rosin and flux on it. In addition: Put the cleaning basket into the inner tank of the machine, and some washing water will drop from the machine. Then proceed to the next step
3. Put the circuit board into the installed ultrasonic cleaning machine with washing water. Generally, it only takes 5 seconds to clean the circuit board one by one.
4. After 5 seconds, let's take a look at the effect and see if the previous dirt is gone. The biggest advantage of ultrasonic cleaning is its good effect and high efficiency.
Ultrasonic cleaning is currently the best cleaning method and effect. Save time, effort, and cost.

480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 0



Product Show:



480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 1480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 2480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 3480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 4480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 5480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 6

480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 7

Application Area:

480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 8480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 9480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 10480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 11480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 12

480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 13

Stainless Bench Top
480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 14
Model Capacity Tank Size Ultrasonic Power Heating Power Frequency Tank thickness Material
(L) (L*W*H)mm (W) (W) (KHz) (mm) SUS304
JP-008 0.8 150*85*65 35 0 40 1 SUS304
JP-009 0.9 150*135*65 60 100 40 1 SUS304
JP-010T 2 150*165*100 60 100 40 1 SUS304
JP-020S 3.2 240*135*100 120 100 40 1 SUS304
JP-030S 4.5 300*150*100 180 200 40 1 SUS304
JP-031S 6.5 300*150*150 180 200 40 1 SUS304
JP-040S 10 300*240*150 240 200 40 1 SUS304
JP-060S 15 330*300*150 360 300 40 1 SUS304
JP-080S 22 500*300*150 480 500 40 1 SUS304
JP-100S 30 500*300*200 600 500 40 1 SUS304



Industrial Ultrasonic Cleaning Machine
480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 15
Model Capacity Tank Size Transducers Ultrasonic Power Heating Power Tank thickness Frequency
(L) (L*W*H)mm (pcs) (W) (W) (mm) (KHz)
JP-120ST 38 500X300X250 12 600 1500 2 28/40
JP-180ST 53 500X350X300 18 900 1500 2 28/40
JP-240ST 77 550X400X350 24 120 3000 2 28/40
JP-300ST 99 550X450X400 30 1500 3000 2 28/40
JP-301ST 99 800X300X400 30 1500 3000 2 28/40
JP-360ST 135 600X500X450 36 1800 4500 2 28/40
JP-480ST 175 700X500X500 48 2400 6000 2 28/40
JP-600ST 264 800X600X550 60 3000 6000 2 28/40
JP-720ST 360 1000X600X600 72 3600 9000 2 28/40
JP-1108ST 540 1000X900X600 108 5400 18000 2 28/40
JP-1144ST 960 1200X1000X800 144 7200 27000 2 28/40

Immersible Transducer Plate
Image:
480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 16480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 17
Model Plate Size Transducers Ultrasonic Power Generator Suitable tank
(L*W*H)mm (pcs) (W) (set) (L)
JP-1006I 305*205*100 6 300 1 10~15
JP-1012I 355*305*100 12 600 1 30~40
JP-1018I 340*280*100 18 900 1 60~70
JP-1024I 430*280*100 24 1200 1 70~80
JP-1030I 460*370*100 30 1500 1 90~100
JP-1036I 550*450*100 36 1800 1 130~140
JP-1048I 600*450*100 48 2400 2 170~180

Immersible Transducer Tube
Image:
480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 18480W 20L Table Top Ultrasonic Cleaner For Integrated Circuit 19
Model Tube Size Transducers Ultrasonic Power Generator Length of wire
(D*H)mm (pcs) (W) (set) (M)
JM-1003 57*180 3 150 1 1.5
JM-1006 57*300 6 300 1 1.5
JM-1012 57*550 12 600 1 1.5
JM-1018 57*750 18 900 1 1.5
JM-1024 57*1000 24 1200 1 1.5
JM-1036 57*1520 36 1800 1
Immersible Transducer Plate/tube can be put in any tank, but it doesn't have heating function.
The price of tube is much higher than plate, Ultrasonic Tube is only used for special purpose, such as in Lab.
