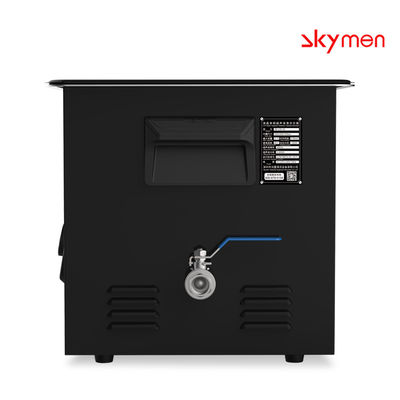

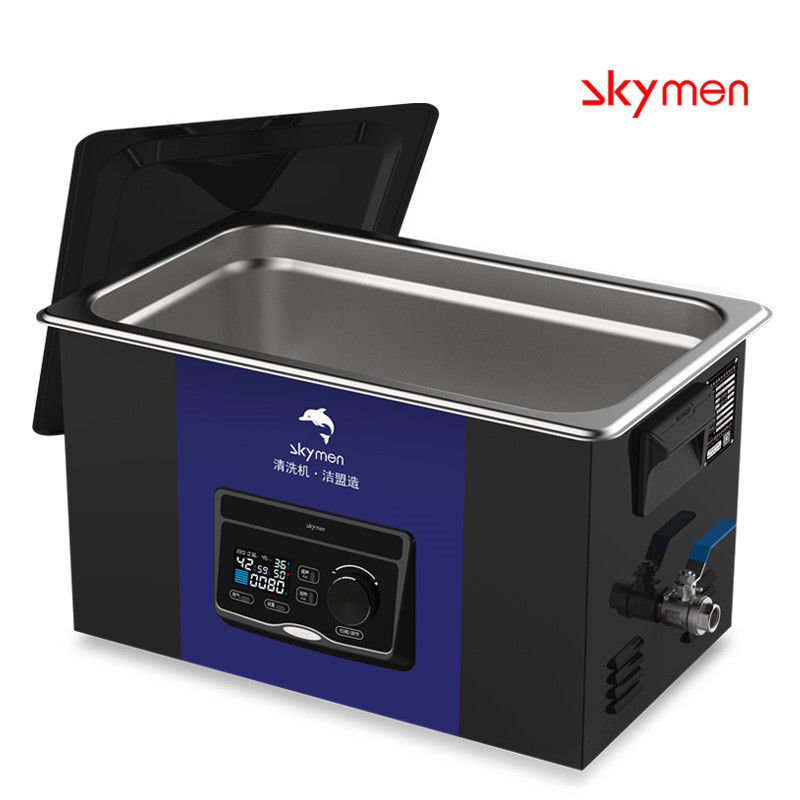

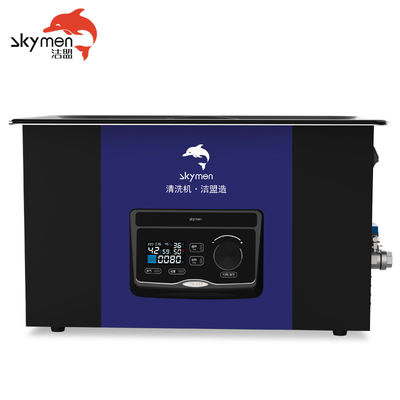

5.81 Gallon 45KHz Mute Ultrasonic Cleaner 800W For Semiconductor

Sweep Frenquncy 45/80KHz Mute Ultrasonic Cleaner For Semiconductor 5.81 Gallon

Feature:

1. Exclusive ergonomic design tilts 20°, wide field of view, and convenient operation;
2. LED visual LCD digital display, LOGO, time, power 0-100% of various parameters are clearly displayed, users are clear at a glance;
3. Ultrasonic working time (0-99 hours/normally open) can be adjusted freely to adapt to long-term use;
4. The liquid crystal display can be digitally displayed, the power can be adjusted without limit from 0-100%, and the 360° free adjustment;
5. Degassing function, extracting liquid air to prevent oxidation of cleaning objects, experimental ultrasonic vacuum cleaning, cleaning is more clean and thorough;
6. The use of silent design makes cleaning and dispersion more quiet and more comfortable to use;
7. Independent research and development of transducers and chips, the ultrasonic power conversion efficiency is high, the power is strong, the cleaning and dispersion effect is good, the output power of the ultrasonic transducer is 60W;
8. The use of chip with memory function and automatic frequency sweep function greatly reduces the data error of the analyzed object, improves the efficiency of cleaning the object, and the cleaning effect is more thorough;
9. The shell is made of black titanium stainless steel, anti-fingerprint treatment, acid and alkali resistance; beautiful and generous, with a sense of science and technology;
10. Exclusive 3D three-dimensional heat dissipation system, the components are durable;
11. AUTO one-key automatic button design, minimalist operation, using Fahrenheit and Celsius synchronized temperature display;
12. Room temperature is adjustable within the range of 80℃, automatically detects the body temperature, adopts PT100 high-precision thermostat, accurate temperature, real-time water temperature display, adopts ceramic heating plate, and heats up quickly and evenly;
13. The inner tank is made of high-quality SUS304 stainless steel, which is stamped and formed at one time, without welding, and has good waterproof performance;
14. The cleaning basket is formed by argon arc welding with stainless steel SUS304 mesh screen;
15. 6.5L and above are equipped with exclusive customized drainage device, humanized invisible design, convenient and fast automatic drainage;
16. Main application scope: University scientific research laboratories, medical equipment, biopharmaceuticals, hardware industry, aviation railway, semiconductor microelectronics and other fields, ultrasonic cleaning, dispersion, extraction, mixing, defoaming, emulsification, sample pre- and post-processing.

Product Show:

Application Area:

Industrial Ultrasonic Cleaning Machine



Immersible Transducer Plate

Image:

Model	Plate Size	Transducers	Ultrasonic Power	Generator	Suitable tank
	(L*W*H)mm	(pcs)	(W)	(set)	(L)
JP-1006I	305*205*100	6	300	1	10~15
JP-1012I	355*305*100	12	600	1	30~40
JP-1018I	340*280*100	18	900	1	60~70
JP-1024I	430*280*100	24	1200	1	70~80
JP-1030I	460*370*100	30	1500	1	90~100
JP-1036I	550*450*100	36	1800	1	130~140
JP-1048I	600*450*100	48	2400	2	170~180

Immersible Transducer Tube

Image:

Model	Tube Size	Transducers	Ultrasonic Power	Generator	Length of wire
	(D*H)mm	(pcs)	(W)	(set)	(M)
JM-1003	57*180	3	150	1	1.5
JM-1006	57*300	6	300	1	1.5
JM-1012	57*550	12	600	1	1.5
JM-1018	57*750	18	900	1	1.5
JM-1024	57*1000	24	1200	1	1.5
JM-1036	57*1520	36	1800	1

Immersible Transducer Plate/tube can be put in any tank, but it doesn't have heating function.

The price of tube is much higher than plate, Ultrasonic Tube is only used for special purpose, such as in Lab.
