Product Details:
|
Model: | JP-031S | Frequency: | 40KHz |
---|---|---|---|
Capacity: | 1.72 Gallon | Tank Size: | 12*6*6 Inch |
Ultrasonic Power: | 180W/90W | Heating Power: | 200W |
Material: | SUS 304 | G.W: | 6.6KG |
Highlight: | 30min Timer Ultrasonic Parts Cleaners,Bench Top Ultrasonic Cleaner SUS304,SUS304 Ultrasonic Cleaning Equipment |

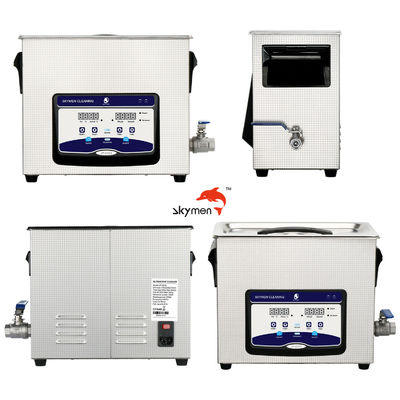

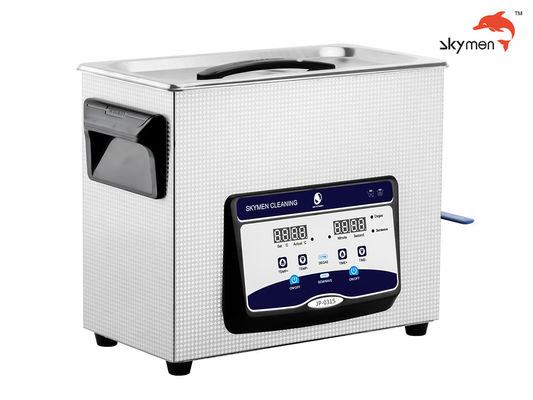

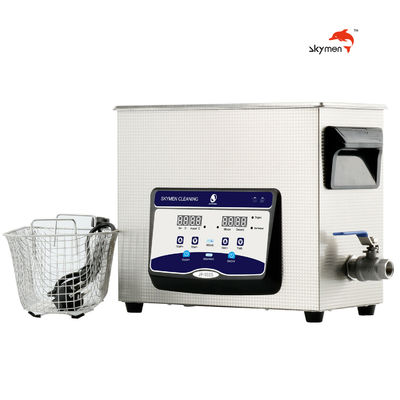

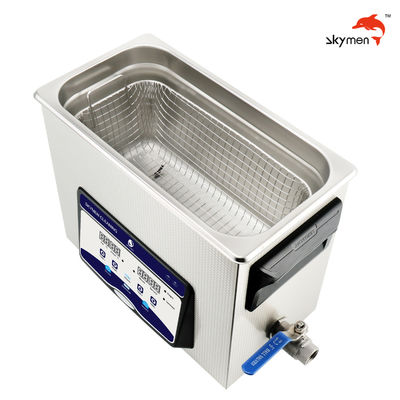

Skymen Ultrasonic Bath For Glass/Steel/Aluminium Pipes With 200W Heater 1.72 Gallon
Stainless Bench Top
Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency | Tank thickness | Material |
(L) | (L*W*H)mm | (W) | (W) | (KHz) | (mm) | SUS304 | |
JP-008 | 0.8 | 150*85*65 | 35 | 0 | 40 | 1 | SUS304 |
JP-009 | 0.9 | 150*135*65 | 60 | 100 | 40 | 1 | SUS304 |
JP-010T | 2 | 150*165*100 | 60 | 100 | 40 | 1 | SUS304 |
JP-020S | 3.2 | 240*135*100 | 120 | 100 | 40 | 1 | SUS304 |
JP-030S | 4.5 | 300*150*100 | 180 | 200 | 40 | 1 | SUS304 |
JP-031S | 6.5 | 300*150*150 | 180 | 200 | 40 | 1 | SUS304 |
JP-040S | 10 | 300*240*150 | 240 | 200 | 40 | 1 | SUS304 |
JP-060S | 15 | 330*300*150 | 360 | 300 | 40 | 1 | SUS304 |
JP-080S | 22 | 500*300*150 | 480 | 500 | 40 | 1 | SUS304 |
JP-100S | 30 | 500*300*200 | 600 | 500 | 40 | 1 | SUS304 |
Product Show:
Application Area:
Industrial Ultrasonic Cleaning Machine
Model | Capacity | Tank Size | Transducers | Ultrasonic Power | Heating Power | Tank thickness | Frequency |
(L) | (L*W*H)mm | (pcs) | (W) | (W) | (mm) | (KHz) | |
JP-120ST | 38 | 500X300X250 | 12 | 600 | 1500 | 2 | 28/40 |
JP-180ST | 53 | 500X350X300 | 18 | 900 | 1500 | 2 | 28/40 |
JP-240ST | 77 | 550X400X350 | 24 | 120 | 3000 | 2 | 28/40 |
JP-300ST | 99 | 550X450X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-301ST | 99 | 800X300X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-360ST | 135 | 600X500X450 | 36 | 1800 | 4500 | 2 | 28/40 |
JP-480ST | 175 | 700X500X500 | 48 | 2400 | 6000 | 2 | 28/40 |
JP-600ST | 264 | 800X600X550 | 60 | 3000 | 6000 | 2 | 28/40 |
JP-720ST | 360 | 1000X600X600 | 72 | 3600 | 9000 | 2 | 28/40 |
JP-1108ST | 540 | 1000X900X600 | 108 | 5400 | 18000 | 2 | 28/40 |
JP-1144ST | 960 | 1200X1000X800 | 144 | 7200 | 27000 | 2 | 28/40 |
Model | Plate Size | Transducers | Ultrasonic Power | Generator | Suitable tank |
(L*W*H)mm | (pcs) | (W) | (set) | (L) | |
JP-1006I | 305*205*100 | 6 | 300 | 1 | 10~15 |
JP-1012I | 355*305*100 | 12 | 600 | 1 | 30~40 |
JP-1018I | 340*280*100 | 18 | 900 | 1 | 60~70 |
JP-1024I | 430*280*100 | 24 | 1200 | 1 | 70~80 |
JP-1030I | 460*370*100 | 30 | 1500 | 1 | 90~100 |
JP-1036I | 550*450*100 | 36 | 1800 | 1 | 130~140 |
JP-1048I | 600*450*100 | 48 | 2400 | 2 | 170~180 |
Model | Tube Size | Transducers | Ultrasonic Power | Generator | Length of wire |
(D*H)mm | (pcs) | (W) | (set) | (M) | |
JM-1003 | 57*180 | 3 | 150 | 1 | 1.5 |
JM-1006 | 57*300 | 6 | 300 | 1 | 1.5 |
JM-1012 | 57*550 | 12 | 600 | 1 | 1.5 |
JM-1018 | 57*750 | 18 | 900 | 1 | 1.5 |
JM-1024 | 57*1000 | 24 | 1200 | 1 | 1.5 |
JM-1036 | 57*1520 | 36 | 1800 | 1 |
Q: Can I use it to clean gold and silver jewelry?
A: Yes. It can be used to clean gold and silver jewelries. However, it is better that there are not poor inlays with the jewelries.
Q: Will this work for surgical instruments? Veterinary?
A: Yes,this kind of ultrasonic cleaner works for surgical instrucments
Q: How exactly does degas function operate? does it make intermittent bursts? i have heard that any us cleaner will degas without function.
A: Ultrasonic will work intermittently with degas function,it means ultrasonic will work 6secs on and 2secs off,in this way when ultrasonic is off with 2secs,the air in the water will squeeze out automatically.
Features of degas function: 1.Squeezing the air out of the liquid to increase its permeability
A: Can I use the heater without ultrasound?
A: Hello,Yes,you can use the heater without ultrasound,they are seperate functions
