Product Details:
|
Model: | JP-031S | Frequency: | 40KHz |
---|---|---|---|

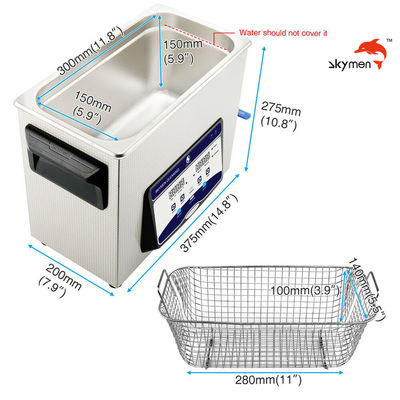

Capacity: | 1.72 Gallon | Tank Size: | 12*6*6 Inch |
Ultrasonic Power: | 180W/90W | Heating Power: | 200W |
Material: | SUS 304 | G.W: | 6.6KG |
Highlight: | 30min Timer Ultrasonic Parts Cleaners,Bench Top Ultrasonic Cleaner SUS304,SUS304 Ultrasonic Cleaning Equipment |

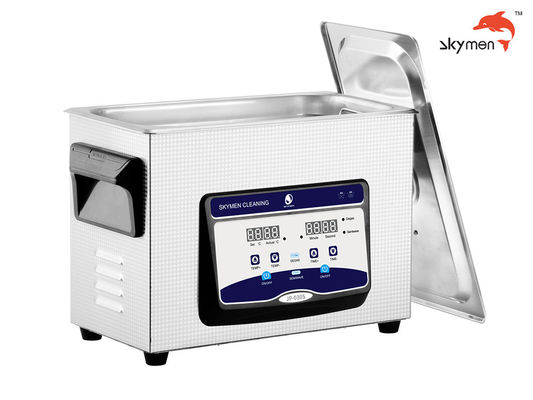

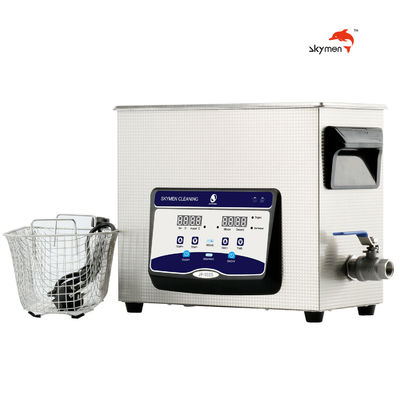

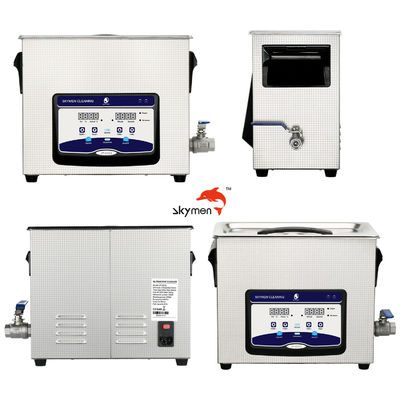

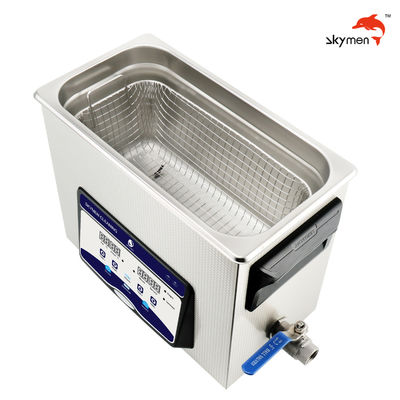

Skymen Ultrasonic Bath For Automizer Of E-Cigarette With 200W Heater 1.72 Gallon
DEGAS mode is an intermittent cleaning mode to remove residual bubbles(no cavitation nucleus) which can increase the loss of ultrasonic transmission and decrease the blast strength of cavitations in the cleaning solution. So it is a cleaning mode for removing ultrasonic fatigue to improve cleaning effect.
Stainless Bench Top
Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency | Tank thickness | Material |
(L) | (L*W*H)mm | (W) | (W) | (KHz) | (mm) | SUS304 | |
JP-008 | 0.8 | 150*85*65 | 35 | 0 | 40 | 1 | SUS304 |
JP-009 | 0.9 | 150*135*65 | 60 | 100 | 40 | 1 | SUS304 |
JP-010T | 2 | 150*165*100 | 60 | 100 | 40 | 1 | SUS304 |
JP-020S | 3.2 | 240*135*100 | 120 | 100 | 40 | 1 | SUS304 |
JP-030S | 4.5 | 300*150*100 | 180 | 200 | 40 | 1 | SUS304 |
JP-031S | 6.5 | 300*150*150 | 180 | 200 | 40 | 1 | SUS304 |
JP-040S | 10 | 300*240*150 | 240 | 200 | 40 | 1 | SUS304 |
JP-060S | 15 | 330*300*150 | 360 | 300 | 40 | 1 | SUS304 |
JP-080S | 22 | 500*300*150 | 480 | 500 | 40 | 1 | SUS304 |
JP-100S | 30 | 500*300*200 | 600 | 500 | 40 | 1 | SUS304 |
Product Show:
Application Area:
Industrial Ultrasonic Cleaning Machine
Model | Capacity | Tank Size | Transducers | Ultrasonic Power | Heating Power | Tank thickness | Frequency |
(L) | (L*W*H)mm | (pcs) | (W) | (W) | (mm) | (KHz) | |
JP-120ST | 38 | 500X300X250 | 12 | 600 | 1500 | 2 | 28/40 |
JP-180ST | 53 | 500X350X300 | 18 | 900 | 1500 | 2 | 28/40 |
JP-240ST | 77 | 550X400X350 | 24 | 120 | 3000 | 2 | 28/40 |
JP-300ST | 99 | 550X450X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-301ST | 99 | 800X300X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-360ST | 135 | 600X500X450 | 36 | 1800 | 4500 | 2 | 28/40 |
JP-480ST | 175 | 700X500X500 | 48 | 2400 | 6000 | 2 | 28/40 |
JP-600ST | 264 | 800X600X550 | 60 | 3000 | 6000 | 2 | 28/40 |
JP-720ST | 360 | 1000X600X600 | 72 | 3600 | 9000 | 2 | 28/40 |
JP-1108ST | 540 | 1000X900X600 | 108 | 5400 | 18000 | 2 | 28/40 |
JP-1144ST | 960 | 1200X1000X800 | 144 | 7200 | 27000 | 2 | 28/40 |
Model | Plate Size | Transducers | Ultrasonic Power | Generator | Suitable tank |
(L*W*H)mm | (pcs) | (W) | (set) | (L) | |
JP-1006I | 305*205*100 | 6 | 300 | 1 | 10~15 |
JP-1012I | 355*305*100 | 12 | 600 | 1 | 30~40 |
JP-1018I | 340*280*100 | 18 | 900 | 1 | 60~70 |
JP-1024I | 430*280*100 | 24 | 1200 | 1 | 70~80 |
JP-1030I | 460*370*100 | 30 | 1500 | 1 | 90~100 |
JP-1036I | 550*450*100 | 36 | 1800 | 1 | 130~140 |
JP-1048I | 600*450*100 | 48 | 2400 | 2 | 170~180 |
Model | Tube Size | Transducers | Ultrasonic Power | Generator | Length of wire |
(D*H)mm | (pcs) | (W) | (set) | (M) | |
JM-1003 | 57*180 | 3 | 150 | 1 | 1.5 |
JM-1006 | 57*300 | 6 | 300 | 1 | 1.5 |
JM-1012 | 57*550 | 12 | 600 | 1 | 1.5 |
JM-1018 | 57*750 | 18 | 900 | 1 | 1.5 |
JM-1024 | 57*1000 | 24 | 1200 | 1 | 1.5 |
JM-1036 | 57*1520 | 36 | 1800 | 1 |
