Product Details:
|
Model: | JP-040S | Frequency: | 40KHz |
---|---|---|---|

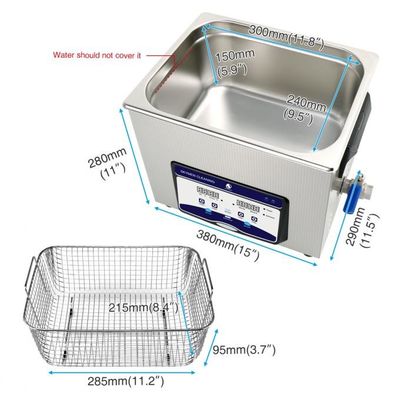

Capacity: | 2.85 Gallon | Tank Size: | 12*9*6 Inch |
Ultrasonic Power: | 120W/240W | Heating Power: | 200W |
Material: | SUS 304 | G.W: | 8.4KG |
Highlight: | 30min Timer Ultrasonic Parts Cleaners,Bench Top Ultrasonic Cleaner SUS304,SUS304 Ultrasonic Cleaning Equipment |
Skymen Ultrasonic Bath For Electronic Cigarette With 200W Heater And Basket 2.85 Gallon
If you want choose other function,please see the buying guide as below:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for common use and 28kHz for heavy duty oil removal
3. Choose tank material based on solvent, SUS304 or SUS316L
4. Other function optional, Ultrasonic cleaning tank + Ultrasonic Rinsing tank; Ultrasonic cleaning tank + Air agitation Rinsing tank; Ultrasonic cleaning tank + Water Rinsing tank; Ultrasonic cleaning tank + Hot air drying tank; Oil filtration system: detergent recycle use to save much cost.
Stainless Bench Top
Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency | Tank thickness | Material |
(L) | (L*W*H)mm | (W) | (W) | (KHz) | (mm) | SUS304 | |
JP-008 | 0.8 | 150*85*65 | 35 | 0 | 40 | 1 | SUS304 |
JP-009 | 0.9 | 150*135*65 | 60 | 100 | 40 | 1 | SUS304 |
JP-010T | 2 | 150*165*100 | 60 | 100 | 40 | 1 | SUS304 |
JP-020S | 3.2 | 240*135*100 | 120 | 100 | 40 | 1 | SUS304 |
JP-030S | 4.5 | 300*150*100 | 180 | 200 | 40 | 1 | SUS304 |
JP-031S | 6.5 | 300*150*150 | 180 | 200 | 40 | 1 | SUS304 |
JP-040S | 10 | 300*240*150 | 240 | 200 | 40 | 1 | SUS304 |
JP-060S | 15 | 330*300*150 | 360 | 300 | 40 | 1 | SUS304 |
JP-080S | 22 | 500*300*150 | 480 | 500 | 40 | 1 | SUS304 |
JP-100S | 30 | 500*300*200 | 600 | 500 | 40 | 1 | SUS304 |

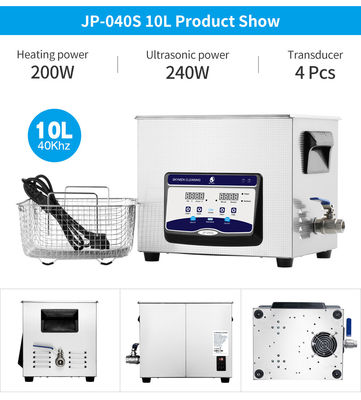

Product Show:
Application Area:
Industrial Ultrasonic Cleaning Machine
Model | Capacity | Tank Size | Transducers | Ultrasonic Power | Heating Power | Tank thickness | Frequency |
(L) | (L*W*H)mm | (pcs) | (W) | (W) | (mm) | (KHz) | |
JP-120ST | 38 | 500X300X250 | 12 | 600 | 1500 | 2 | 28/40 |
JP-180ST | 53 | 500X350X300 | 18 | 900 | 1500 | 2 | 28/40 |
JP-240ST | 77 | 550X400X350 | 24 | 120 | 3000 | 2 | 28/40 |
JP-300ST | 99 | 550X450X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-301ST | 99 | 800X300X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-360ST | 135 | 600X500X450 | 36 | 1800 | 4500 | 2 | 28/40 |
JP-480ST | 175 | 700X500X500 | 48 | 2400 | 6000 | 2 | 28/40 |
JP-600ST | 264 | 800X600X550 | 60 | 3000 | 6000 | 2 | 28/40 |
JP-720ST | 360 | 1000X600X600 | 72 | 3600 | 9000 | 2 | 28/40 |
JP-1108ST | 540 | 1000X900X600 | 108 | 5400 | 18000 | 2 | 28/40 |
JP-1144ST | 960 | 1200X1000X800 | 144 | 7200 | 27000 | 2 | 28/40 |
Model | Plate Size | Transducers | Ultrasonic Power | Generator | Suitable tank |
(L*W*H)mm | (pcs) | (W) | (set) | (L) | |
JP-1006I | 305*205*100 | 6 | 300 | 1 | 10~15 |
JP-1012I | 355*305*100 | 12 | 600 | 1 | 30~40 |
JP-1018I | 340*280*100 | 18 | 900 | 1 | 60~70 |
JP-1024I | 430*280*100 | 24 | 1200 | 1 | 70~80 |
JP-1030I | 460*370*100 | 30 | 1500 | 1 | 90~100 |
JP-1036I | 550*450*100 | 36 | 1800 | 1 | 130~140 |
JP-1048I | 600*450*100 | 48 | 2400 | 2 | 170~180 |
Model | Tube Size | Transducers | Ultrasonic Power | Generator | Length of wire |
(D*H)mm | (pcs) | (W) | (set) | (M) | |
JM-1003 | 57*180 | 3 | 150 | 1 | 1.5 |
JM-1006 | 57*300 | 6 | 300 | 1 | 1.5 |
JM-1012 | 57*550 | 12 | 600 | 1 | 1.5 |
JM-1018 | 57*750 | 18 | 900 | 1 | 1.5 |
JM-1024 | 57*1000 | 24 | 1200 | 1 | 1.5 |
JM-1036 | 57*1520 | 36 | 1800 | 1 |
