Product Details:
|
Model: | JP-040S | Frequency: | 40KHz |
---|---|---|---|

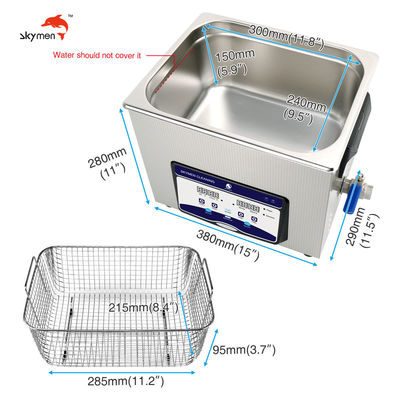

Capacity: | 2.85 Gallon | Tank Size: | 12*9*6 Inch |
Ultrasonic Power: | 120W/240W | Heating Power: | 200W |
Material: | SUS 304 | G.W: | 8.4KG |
Highlight: | 30min Timer Ultrasonic Parts Cleaners,Bench Top Ultrasonic Cleaner SUS304,SUS304 Ultrasonic Cleaning Equipment |

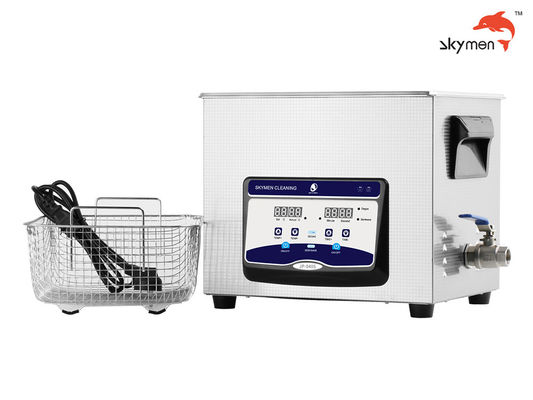

Professional 2.85 Gallon Ultrasonic Cleaner Skymen With Heater And Basket For Denture
Principle
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
Stainless Bench Top
Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency | Tank thickness | Material |
(L) | (L*W*H)mm | (W) | (W) | (KHz) | (mm) | SUS304 | |
JP-008 | 0.8 | 150*85*65 | 35 | 0 | 40 | 1 | SUS304 |
JP-009 | 0.9 | 150*135*65 | 60 | 100 | 40 | 1 | SUS304 |
JP-010T | 2 | 150*165*100 | 60 | 100 | 40 | 1 | SUS304 |
JP-020S | 3.2 | 240*135*100 | 120 | 100 | 40 | 1 | SUS304 |
JP-030S | 4.5 | 300*150*100 | 180 | 200 | 40 | 1 | SUS304 |
JP-031S | 6.5 | 300*150*150 | 180 | 200 | 40 | 1 | SUS304 |
JP-040S | 10 | 300*240*150 | 240 | 200 | 40 | 1 | SUS304 |
JP-060S | 15 | 330*300*150 | 360 | 300 | 40 | 1 | SUS304 |
JP-080S | 22 | 500*300*150 | 480 | 500 | 40 | 1 | SUS304 |
JP-100S | 30 | 500*300*200 | 600 | 500 | 40 | 1 | SUS304 |
Product Show:
Application Area:
Industrial Ultrasonic Cleaning Machine
Model | Capacity | Tank Size | Transducers | Ultrasonic Power | Heating Power | Tank thickness | Frequency |
(L) | (L*W*H)mm | (pcs) | (W) | (W) | (mm) | (KHz) | |
JP-120ST | 38 | 500X300X250 | 12 | 600 | 1500 | 2 | 28/40 |
JP-180ST | 53 | 500X350X300 | 18 | 900 | 1500 | 2 | 28/40 |
JP-240ST | 77 | 550X400X350 | 24 | 120 | 3000 | 2 | 28/40 |
JP-300ST | 99 | 550X450X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-301ST | 99 | 800X300X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-360ST | 135 | 600X500X450 | 36 | 1800 | 4500 | 2 | 28/40 |
JP-480ST | 175 | 700X500X500 | 48 | 2400 | 6000 | 2 | 28/40 |
JP-600ST | 264 | 800X600X550 | 60 | 3000 | 6000 | 2 | 28/40 |
JP-720ST | 360 | 1000X600X600 | 72 | 3600 | 9000 | 2 | 28/40 |
JP-1108ST | 540 | 1000X900X600 | 108 | 5400 | 18000 | 2 | 28/40 |
JP-1144ST | 960 | 1200X1000X800 | 144 | 7200 | 27000 | 2 | 28/40 |
Model | Plate Size | Transducers | Ultrasonic Power | Generator | Suitable tank |
(L*W*H)mm | (pcs) | (W) | (set) | (L) | |
JP-1006I | 305*205*100 | 6 | 300 | 1 | 10~15 |
JP-1012I | 355*305*100 | 12 | 600 | 1 | 30~40 |
JP-1018I | 340*280*100 | 18 | 900 | 1 | 60~70 |
JP-1024I | 430*280*100 | 24 | 1200 | 1 | 70~80 |
JP-1030I | 460*370*100 | 30 | 1500 | 1 | 90~100 |
JP-1036I | 550*450*100 | 36 | 1800 | 1 | 130~140 |
JP-1048I | 600*450*100 | 48 | 2400 | 2 | 170~180 |
1.5
Model | Tube Size | Transducers | Ultrasonic Power | Generator | Length of wire |
(D*H)mm | (pcs) | (W) | (set) | (M) | |
JM-1003 | 57*180 | 3 | 150 | 1 | 1.5 |
JM-1006 | 57*300 | 6 | 300 | 1 | 1.5 |
JM-1012 | 57*550 | 12 | 600 | 1 | 1.5 |
JM-1018 | 57*750 | 18 | 900 | 1 | 1.5 |
JM-1024 | 57*1000 | 24 | 1200 | 1 | 1.5 |
JM-1036 | 57*1520 | 36 | 1800 | 1 |
