Product Details:
|
Model: | JP-040S | Frequency: | 40KHz |
---|---|---|---|
Capacity: | 2.85 Gallon | Tank Size: | 12*9*6 Inch |
Ultrasonic Power: | 120W/240W | Heating Power: | 200W |
Material: | SUS 304 | G.W: | 8.4KG |
Highlight: | 30min Timer Ultrasonic Parts Cleaners,Bench Top Ultrasonic Cleaner SUS304,SUS304 Ultrasonic Cleaning Equipment |

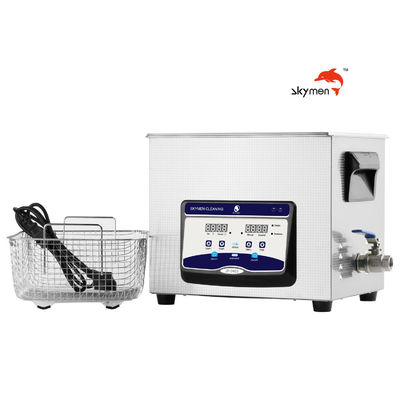

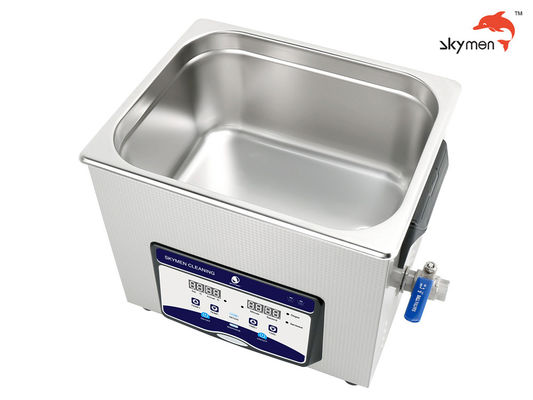

Ultrasonic Bath For Coins With 200W Heating Power For Removing Dirt 2.85 Gallon
Ultrasonic cleaning methods are more common than conventional cleaning methods, especially the surface of the workpiece is complex, such as some surface irregularities, mechanical parts with blind holes, some products that are particularly small and have high requirements for cleanliness such as watches and clocks. Precision mechanical parts, electronic components, circuit board components, etc., can achieve very good results by ultrasonic cleaning.
The cleaning effect is good, the cleanliness is high and the cleanliness of all the workpieces is consistent. The cleaning speed is fast, the production efficiency is improved, and the cleaning liquid is not required to be touched by human hands, which is safe and reliable. Deep holes, slits and hidden parts of the workpiece can also be cleaned. No damage to the surface of the workpiece, saving solvent, heat, work site and labor.
Stainless Bench Top
Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency | Tank thickness | Material |
(L) | (L*W*H)mm | (W) | (W) | (KHz) | (mm) | SUS304 | |
JP-008 | 0.8 | 150*85*65 | 35 | 0 | 40 | 1 | SUS304 |
JP-009 | 0.9 | 150*135*65 | 60 | 100 | 40 | 1 | SUS304 |
JP-010T | 2 | 150*165*100 | 60 | 100 | 40 | 1 | SUS304 |
JP-020S | 3.2 | 240*135*100 | 120 | 100 | 40 | 1 | SUS304 |
JP-030S | 4.5 | 300*150*100 | 180 | 200 | 40 | 1 | SUS304 |
JP-031S | 6.5 | 300*150*150 | 180 | 200 | 40 | 1 | SUS304 |
JP-040S | 10 | 300*240*150 | 240 | 200 | 40 | 1 | SUS304 |
JP-060S | 15 | 330*300*150 | 360 | 300 | 40 | 1 | SUS304 |
JP-080S | 22 | 500*300*150 | 480 | 500 | 40 | 1 | SUS304 |
JP-100S | 30 | 500*300*200 | 600 | 500 | 40 | 1 | SUS304 |
Product Show:
Application Area:
Industrial Ultrasonic Cleaning Machine
Model | Capacity | Tank Size | Transducers | Ultrasonic Power | Heating Power | Tank thickness | Frequency |
(L) | (L*W*H)mm | (pcs) | (W) | (W) | (mm) | (KHz) | |
JP-120ST | 38 | 500X300X250 | 12 | 600 | 1500 | 2 | 28/40 |
JP-180ST | 53 | 500X350X300 | 18 | 900 | 1500 | 2 | 28/40 |
JP-240ST | 77 | 550X400X350 | 24 | 120 | 3000 | 2 | 28/40 |
JP-300ST | 99 | 550X450X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-301ST | 99 | 800X300X400 | 30 | 1500 | 3000 | 2 | 28/40 |
JP-360ST | 135 | 600X500X450 | 36 | 1800 | 4500 | 2 | 28/40 |
JP-480ST | 175 | 700X500X500 | 48 | 2400 | 6000 | 2 | 28/40 |
JP-600ST | 264 | 800X600X550 | 60 | 3000 | 6000 | 2 | 28/40 |
JP-720ST | 360 | 1000X600X600 | 72 | 3600 | 9000 | 2 | 28/40 |
JP-1108ST | 540 | 1000X900X600 | 108 | 5400 | 18000 | 2 | 28/40 |
JP-1144ST | 960 | 1200X1000X800 | 144 | 7200 | 27000 | 2 | 28/40 |
Model | Plate Size | Transducers | Ultrasonic Power | Generator | Suitable tank |
(L*W*H)mm | (pcs) | (W) | (set) | (L) | |
JP-1006I | 305*205*100 | 6 | 300 | 1 | 10~15 |
JP-1012I | 355*305*100 | 12 | 600 | 1 | 30~40 |
JP-1018I | 340*280*100 | 18 | 900 | 1 | 60~70 |
JP-1024I | 430*280*100 | 24 | 1200 | 1 | 70~80 |
JP-1030I | 460*370*100 | 30 | 1500 | 1 | 90~100 |
JP-1036I | 550*450*100 | 36 | 1800 | 1 | 130~140 |
JP-1048I | 600*450*100 | 48 | 2400 | 2 | 170~180 |
1.5
Model | Tube Size | Transducers | Ultrasonic Power | Generator | Length of wire |
(D*H)mm | (pcs) | (W) | (set) | (M) | |
JM-1003 | 57*180 | 3 | 150 | 1 | 1.5 |
JM-1006 | 57*300 | 6 | 300 | 1 | 1.5 |
JM-1012 | 57*550 | 12 | 600 | 1 | 1.5 |
JM-1018 | 57*750 | 18 | 900 | 1 | 1.5 |
JM-1024 | 57*1000 | 24 | 1200 | 1 | 1.5 |
JM-1036 | 57*1520 | 36 | 1800 | 1 |
