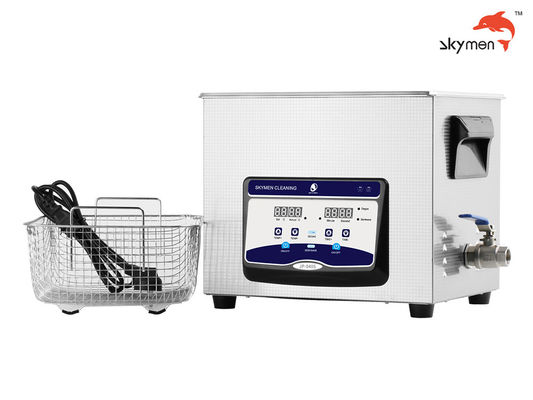

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power
2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power

Large Image :  2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-040S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 1unit per box
Delivery Time: In Stock
Supply Ability: 8000 pcs per month

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power

Description
Model: JP-040S Frequency: 40KHz
Capacity: 2.85 Gallon Tank Size: 12*9*6 Inch
Ultrasonic Power: 120W/240W Heating Power: 200W
Material: SUS 304 G.W: 8.4KG
High Light:

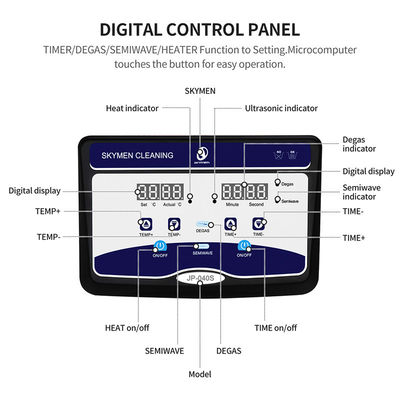

30min Timer Ultrasonic Parts Cleaners

,

Bench Top Ultrasonic Cleaner SUS304

,

SUS304 Ultrasonic Cleaning Equipment

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power


Model JP-040S
Ultrasonic Frequency 40KHz
Transducer Quantity 4pcs
Ultrasonic Power 240W/120W
Heating Power 200W
Tank Capacity 10.8L/2.85Gallon

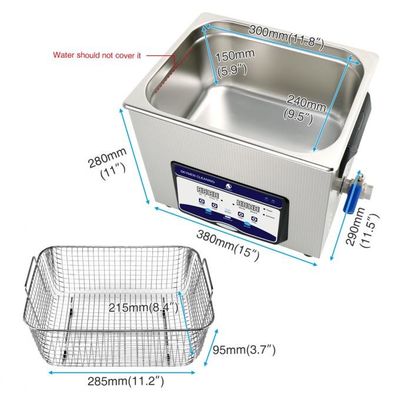

Tank Size 300*240*150mm
Machine size 380*290*280mm
Packing size 440*365*360mm
Net weight 7.6KG
Gross weight 8.6KG
Time Range 1~30 minutes
Temperature Range Room temperature~80℃/176℉
Tank material SUS 304
Tank thickness 1mm
Shell material SUS 201
Shell thickness 0.8mm
Slope panel degree 20°

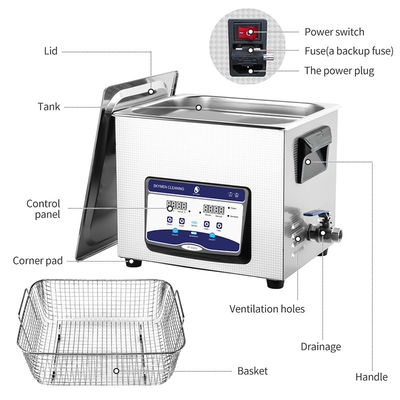

Drain Valve
General switch

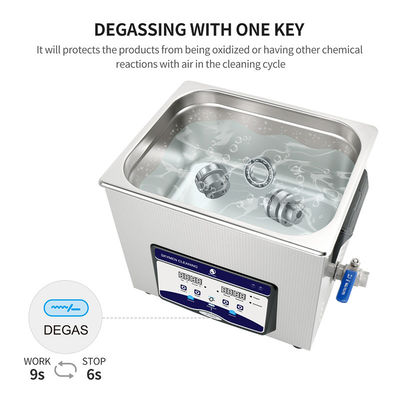

Degas
Semi-wave
Lid
Basket
Voltage 110V; 220V
Plug European Plug; US plug; Austrslian Plug; British Plu
Detergent suggestion No stronger acid or alkali
OEM Yes
OEM MOQ 50pcs
Origin Guangdong China
Business category Manufacturer
Lead time 7 days after payment if order quantity is below 20pcs
Payment term By cash; by credit card; by Paypal
Warranty 1 year

Ultrasonic cleaning of the filter element
We know that no matter what kind of filter or filter of any kind, after a period of use, the permeability will be reduced due to impurities, and the average filter price is lower, but for the chemical fiber industry, Only the imported filter element, the price is nearly 10,000 yuan, it is a pity to abandon it. The ultrasonic filter cleaning machine developed by us in cooperation with other scientific research units uses a concentrating ultrasonic cleaning machine, which can concentrate the energy above 1KW on the radiation surface of 200×20mm2. In addition, the ultrasonic intensity is high, the plug can be quickly removed, and the equipment is equipped with a reverse filter device. As long as you provide the core, we can provide you with a complete cleaning device. (The equipment takes 10-15 minutes to wash a filter). Applicable to PP cotton filter, activated carbon filter, hollow fiber filter ceramic membrane filter.

Stainless Bench Top



2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 0



Model Capacity Tank Size Ultrasonic Power Heating Power Frequency Tank thickness Material
(L) (L*W*H)mm (W) (W) (KHz) (mm) SUS304
JP-008 0.8 150*85*65 35 0 40 1 SUS304
JP-009 0.9 150*135*65 60 100 40 1 SUS304
JP-010T 2 150*165*100 60 100 40 1 SUS304
JP-020S 3.2 240*135*100 120 100 40 1 SUS304
JP-030S 4.5 300*150*100 180 200 40 1 SUS304
JP-031S 6.5 300*150*150 180 200 40 1 SUS304
JP-040S 10 300*240*150 240 200 40 1 SUS304
JP-060S 15 330*300*150 360 300 40 1 SUS304
JP-080S 22 500*300*150 480 500 40 1 SUS304
JP-100S 30 500*300*200 600 500 40 1 SUS304

Product Show:

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 12.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 22.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 32.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 42.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 52.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 6

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 7

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 82.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 92.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 10



Application Area:

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 112.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 122.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 132.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 142.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 15

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 16

Industrial Ultrasonic Cleaning Machine

2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 17
Model Capacity Tank Size Transducers Ultrasonic Power Heating Power Tank thickness Frequency
(L) (L*W*H)mm (pcs) (W) (W) (mm) (KHz)
JP-120ST 38 500X300X250 12 600 1500 2 28/40
JP-180ST 53 500X350X300 18 900 1500 2 28/40
JP-240ST 77 550X400X350 24 120 3000 2 28/40
JP-300ST 99 550X450X400 30 1500 3000 2 28/40
JP-301ST 99 800X300X400 30 1500 3000 2 28/40
JP-360ST 135 600X500X450 36 1800 4500 2 28/40
JP-480ST 175 700X500X500 48 2400 6000 2 28/40
JP-600ST 264 800X600X550 60 3000 6000 2 28/40
JP-720ST 360 1000X600X600 72 3600 9000 2 28/40
JP-1108ST 540 1000X900X600 108 5400 18000 2 28/40
JP-1144ST 960 1200X1000X800 144 7200 27000 2 28/40

Immersible Transducer Plate
Image:
2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 182.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 19
Model Plate Size Transducers Ultrasonic Power Generator Suitable tank
(L*W*H)mm (pcs) (W) (set) (L)
JP-1006I 305*205*100 6 300 1 10~15
JP-1012I 355*305*100 12 600 1 30~40
JP-1018I 340*280*100 18 900 1 60~70
JP-1024I 430*280*100 24 1200 1 70~80
JP-1030I 460*370*100 30 1500 1 90~100
JP-1036I 550*450*100 36 1800 1 130~140
JP-1048I 600*450*100 48 2400 2 170~180

Immersible Transducer Tube
Image:
2.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 202.85 Gallon Ultrasonic Cleaning Mchine For Filter Element With 200w Heating Power 21

1.5

Model Tube Size Transducers Ultrasonic Power Generator Length of wire
(D*H)mm (pcs) (W) (set) (M)
JM-1003 57*180 3 150 1 1.5
JM-1006 57*300 6 300 1 1.5
JM-1012 57*550 12 600 1 1.5
JM-1018 57*750 18 900 1 1.5
JM-1024 57*1000 24 1200 1 1.5
JM-1036 57*1520 36 1800 1
Immersible Transducer Plate/tube can be put in any tank, but it doesn't have heating function.
The price of tube is much higher than plate, Ultrasonic Tube is only used for special purpose, such as in Lab.
