Product Details:
|
| Model: | JP-483 | Tank Volume: | 483L |
|---|---|---|---|
| Heating Power: | 6000W | Internal Tank Size: | 1365*520*680MM |
| Basket Size: | 1315*500*650MM | Gross Weight: | 300KG |
| High Light: | FCC Heated Tank Cleaning Machine,80℃ Heated Tank Cleaning Machine,483L Tea Ware Soak Tank |
||

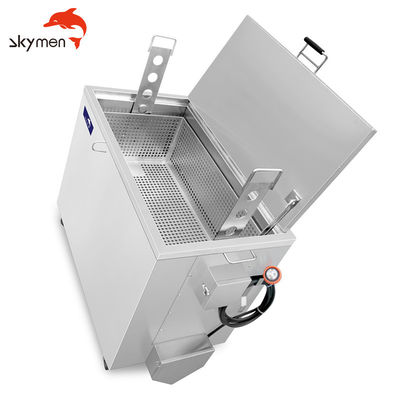

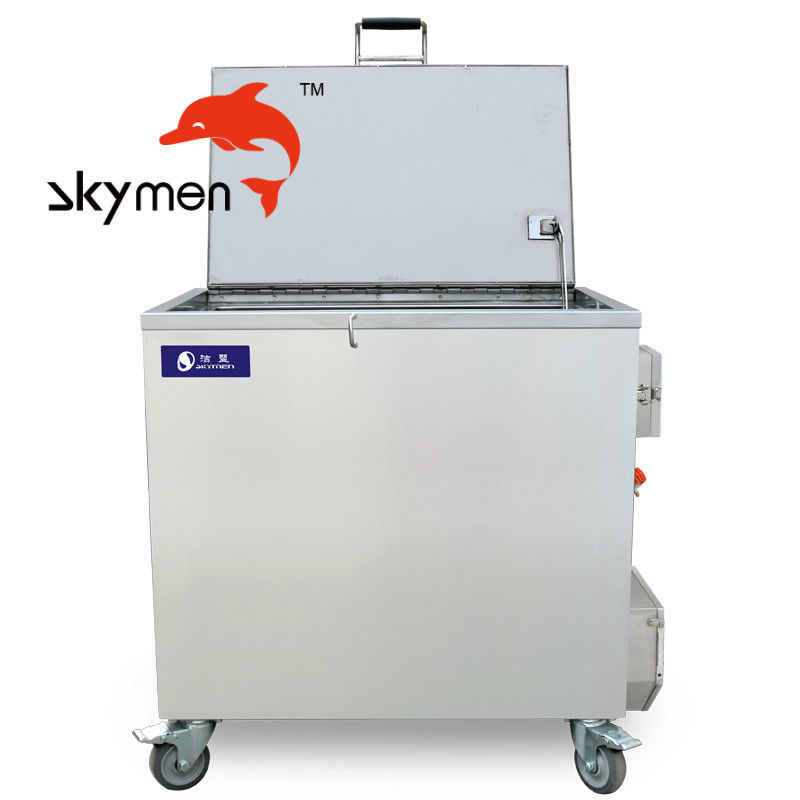

Heated Tank Cleaning Machine For Tea Ware With 80℃ Temperature
BENEFITS
The Skymen Clean Tank System:
1. Will reduce labour costs, save dollars on chemicals and replacement parts,as well as save water. Far surpasses conventional cleaning methods and eliminates the use of caustic, resulting in a safer, more hygienic working environment and therefore better product.
2. Operates 24/7 with a service cycle interval of about 4 weeks.
3. Will not cause damage to the parent material.
4. Cleans range hood/extraction filters removing oil and grease thereby reducing the risk of fire.
5. Features the most user-friendly tank with all safety issues being taken care of, in line with stringent Occupational Health and Safety Standards.
6. Detergents are Biodegradable, Non Toxic, Non Corrosive and Environmentally friendly.
7. Is safe and easy to use.
8. Keeps kitchen equipment and utensils in optimum condition and thus provides for a longer life span.
9. Used to clean grills, stove tops/gas cooking rings, gastronomic trays, as well as pot and pans etc.
10 Eliminates the need for scrubbing, thus allowing staff to concentrate on other chores within the kitchen.
11 Cleans all stainless steel, cast iron and aluminium equipment.
12 Various tank sizes to meet the requirements of all establishments.
PRODUCT SPECIFICATIONS
|
1
|
Model
|
JP-483
|
|
|
2
|
1st Tank
|
Function
|
Hot water cleaning/soaking
|
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
|
Inner tank dimension
|
1365*520*680mm
|
||
|
Tank Capacity
|
483L
|
||
| Heating tube | 2pcs | ||
|
Heating Power
|
6000W
|
||
|
Time setting
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 80°C adjustable
|
||
|
Thickness of tank
|
2mm
|
||
|
Drain value
|
Yes, in the right side of machine
|
||
|
Water inlet/outlet
|
Yes
|
||
|
Lid
|
Yes, hinged with machine body, with gasket
|
||
| Handle of the basket | Yes | ||
|
Basket load
|
300KG
|
||
|
4
|
Packing
|
Overall size
|
1465*620*875mm
|
|
Packing size
|
1565*720*1000cm
|
||
|
Packing detail
|
By wooden case(No logs, free of fumigation)
|
||
|
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
|
TANK DESIGN

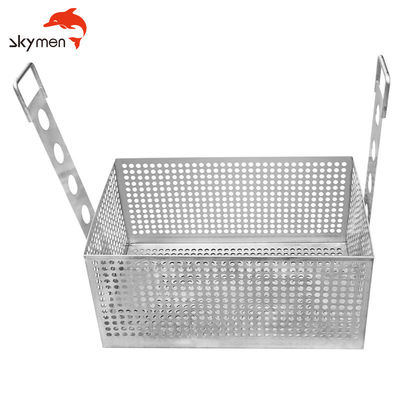

We are an innovative company and our tanks are manufactured to the highest quality standards using food grade Stainless Steel with safety being paramount in our design. We utilise a lid safety locking mechanism which prevents injuries as well as a user friendly load basket designed to make the process of removing heavy equipment (grills/filters etc) an easy one. Our Tanks are double walled fully insulated, thermostatically controlled to use less electricity. All that is required is a standard 240V 10 amp plug point. Our Tanks are on wheels making installation quick and easy.
Soaking tank with different capacity:
| Model | Volume(L) | Internal tank size(MM) | Basket size(MM) | Unit size(MM) | Heating power | Material |
| JP-168 | 168L | 655*410*625 | 605*390*595 | 755*510*785 | 1.5KW | SUS 304 |
| JP-211 | 211L | 750*450*625 | 700*430*595 | 850*550*785 | 1.5KW | SUS 304 |
| JP-258 | 258L | 890*480*605 | 840*460*575 | 990*580*800 | 3KW | |
| JP-274 | 274L | 840*480*680 | 790*460*650 | 940*580*875 | 3KW | SUS 304 |
| JP-388 | 388L | 1080*460*680 | 1060*440*650 | 1480*560*875 | 4.5KW | SUS 304 |
| JP-483 | 483L | 1365*520*680 | 1315*500*650 | 1465*620*875 | 6KW | SUS 304 |
Suggest cleaning time:
| Item | Cleaning time |
| Pot& Pans | Initial soak 12 hours |
| Hot plates & grills | Minimum of 12 hours |
| Deep fry baskets | Minimum 3~4 hours |
| Hood filter | 1 hour |
| Roasting pans | Initial soak 12 hours |
| Gas rings& Cooker tops | Minimum 12 hours |
| Bakery trays and racks | Initial soak 12 hours |
| Serving dishes | 1-2 hours |
| Oven Racks | Initial soak 12 hours |
Cleaning Effect show:
