Product Details:
|
| Model: | JP-388L | Tank Volume: | 388L |
|---|---|---|---|
| Heating Power: | 3000W | Internal Tank Size: | 1080*460*680MM |
| Basket Size: | 1060*440*650MM | Gross Weight: | 250KG |
| High Light: | SUS304 Ultrasonic Soak Tank,3000W Ultrasonic Soak Tank,FCC Spatula Turner Soak Tank |
||

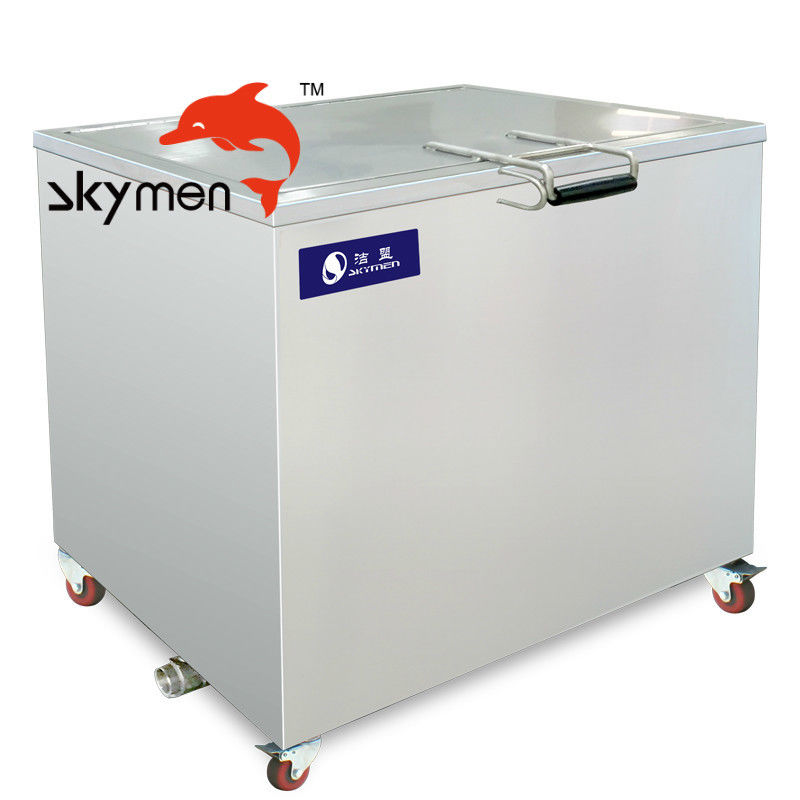

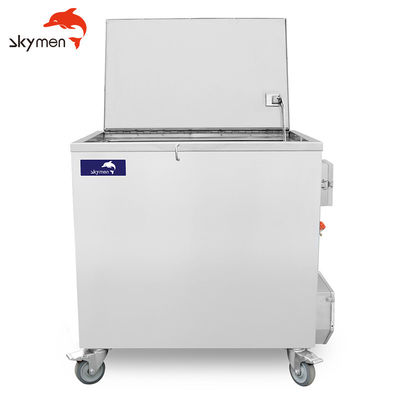

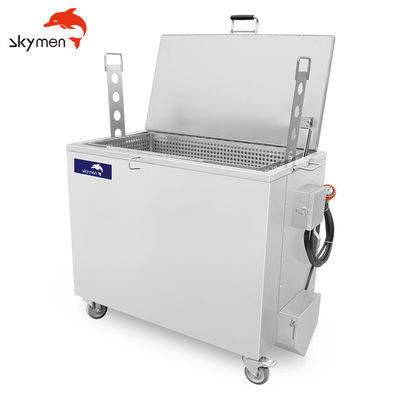

SUS304 Soaking Tank For Spatula Turner In Kitchen With 4500W Heating Power
PRODUCT SPECIFICATIONS
|
1
|
Model
|
JP-388
|
|
|
2
|
1st Tank
|
Function
|
Hot water cleaning/soaking
|
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
|
Inner tank dimension
|
890*480*605mm
|
||
|
Tank Capacity
|
388L
|
||
| Heating tube | 3pcs | ||
|
Heating Power
|
4500W
|
||
|
Time setting
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 80°C adjustable
|
||
|
Thickness of tank
|
2mm
|
||
|
Drain value
|
Yes, in the right side of machine
|
||
|
Water inlet/outlet
|
Yes
|
||
|
Lid
|
Yes, hinged with machine body, with gasket
|
||
| Handle of the basket | Yes | ||
|
Basket load
|
200KG
|
||
|
4
|
Packing
|
Overall size
|
1480*560*875mm
|
|
Packing size
|
1580*660*1000cm
|
||
|
Packing detail
|
By wooden case(No logs, free of fumigation)
|
||
|
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
|
Soaking tank with different capacity:
| Model | Volume(L) | Internal tank size(MM) | Basket size(MM) | Unit size(MM) | Heating power | Material |
| JP-168 | 168L | 655*410*625 | 605*390*595 | 755*510*785 | 1.5KW | SUS 304 |
| JP-211 | 211L | 750*450*625 | 700*430*595 | 850*550*785 | 1.5KW | SUS 304 |
| JP-258 | 258L | 890*480*605 | 840*460*575 | 990*580*800 | 3KW | |
| JP-274 | 274L | 840*480*680 | 790*460*650 | 940*580*875 | 3KW | SUS 304 |
| JP-388 | 388L | 1080*460*680 | 1060*440*650 | 1480*560*875 | 4.5KW | SUS 304 |
| JP-483 | 483L | 1365*520*680 | 1315*500*650 | 1465*620*875 | 6KW | SUS 304 |
WHO USES Skymen CLEAN TANK SYSTEMS
HOTELS
Our Skymen Clean Tank System works well in hectic hotel kitchens, allowing staff to focus on creating quality cuisine with Skymen Clean cooking equipment.
RESTAURANTS PUBS & CLUBS
From independent Restaurants, Restaurant chains to global franchises use Our Skymen Clean Tank system daily to provide Safe and cost-effective cleaning.
BAKERIES
The Skymen Clean Tank is available in multiple sizes to accommodate bakeries’ large pans and kitchen equipment. Our Proprietary Alu – Safe Detergent is safe for use with Aluminium.
FOOD FACTORIES & CATERERS
Skymen Clean Tank allows caterers to maximize staff efficiency, achieve Skymenior cleanliness and sanitation and maintain high kitchen standards from any location.
EDUCATION
From independent Restaurants, Restaurant chains to global franchises use Our Skymen Clean Tank system daily to provide Safe and cost-effective cleaning
Suggest cleaning time:
| Item | Cleaning time |
| Pot& Pans | Initial soak 12 hours |
| Hot plates & grills | Minimum of 12 hours |
| Deep fry baskets | Minimum 3~4 hours |
| Hood filter | 1 hour |
| Roasting pans | Initial soak 12 hours |
| Gas rings& Cooker tops | Minimum 12 hours |
| Bakery trays and racks | Initial soak 12 hours |
| Serving dishes | 1-2 hours |
| Oven Racks | Initial soak 12 hours |
Cleaning Effect show:
