Product Details:
|
| Model: | JP-388L | Tank Volume: | 388L |
|---|---|---|---|
| Heating Power: | 3000W | Internal Tank Size: | 1080*460*680MM |
| Basket Size: | 1060*440*650MM | Gross Weight: | 250KG |
| Highlight: | 4500W Heating Kitchen Soak Tank,Kitchen Soak Tank SUS316,388L Saucepan Soak Tank |
||

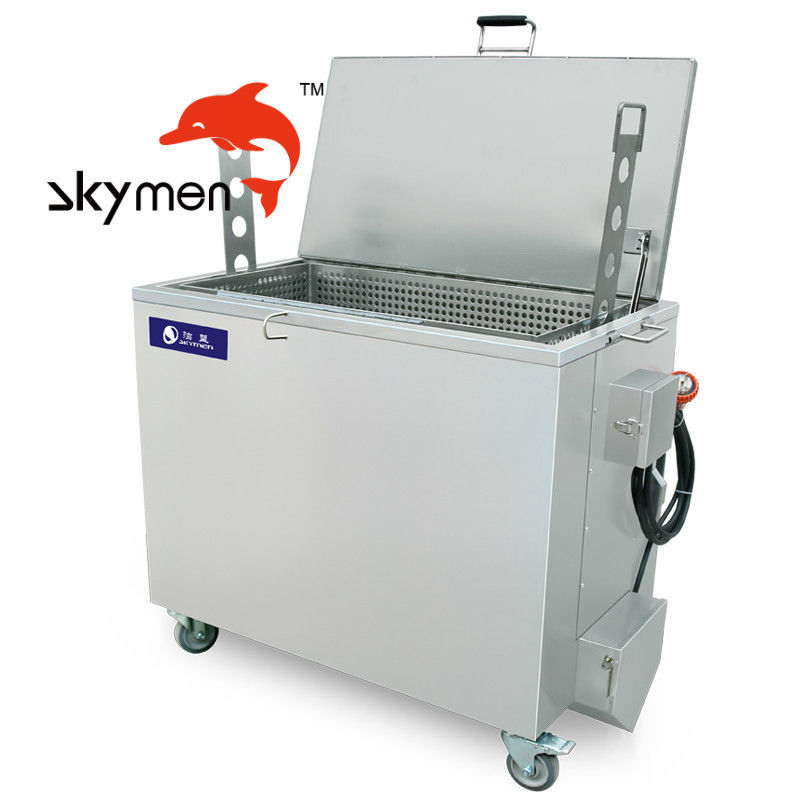

SUS304 Soaking Tank For Saucepan In Kitchen With 4500W Heating Power
Suggest cleaning time:
| Item | Cleaning time |
| Pot& Pans | Initial soak 12 hours |
| Hot plates & grills | Minimum of 12 hours |
| Deep fry baskets | Minimum 3~4 hours |
| Hood filter | 1 hour |
| Roasting pans | Initial soak 12 hours |
| Gas rings& Cooker tops | Minimum 12 hours |
| Bakery trays and racks | Initial soak 12 hours |
| Serving dishes | 1-2 hours |
| Oven Racks | Initial soak 12 hours |
PRODUCT SPECIFICATIONS
|
1
|
Model
|
JP-388
|
|
|
2
|
1st Tank
|
Function
|
Hot water cleaning/soaking
|
|
Tank Material
|
SUS 304 (SUS316 can be customized)
|
||
|
Inner tank dimension
|
890*480*605mm
|
||
|
Tank Capacity
|
388L
|
||
| Heating tube | 3pcs | ||
|
Heating Power
|
4500W
|
||
|
Time setting
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 80°C adjustable
|
||
|
Thickness of tank
|
2mm
|
||
|
Drain value
|
Yes, in the right side of machine
|
||
|
Water inlet/outlet
|
Yes
|
||
|
Lid
|
Yes, hinged with machine body, with gasket
|
||

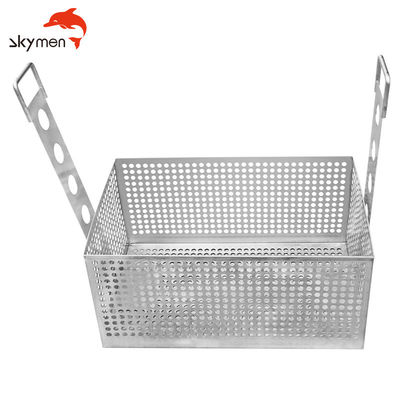

| Handle of the basket | Yes | ||
|
Basket load
|
200KG
|
||
|
4
|
Packing
|
Overall size
|
1480*560*875mm
|
|
Packing size
|
1580*660*1000cm
|
||
|
Packing detail
|
By wooden case(No logs, free of fumigation)
|
||
|
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
|
Soaking tank with different capacity:
| Model | Volume(L) | Internal tank size(MM) | Basket size(MM) | Unit size(MM) | Heating power | Material |
| JP-168 | 168L | 655*410*625 | 605*390*595 | 755*510*785 | 1.5KW | SUS 304 |
| JP-211 | 211L | 750*450*625 | 700*430*595 | 850*550*785 | 1.5KW | SUS 304 |
| JP-258 | 258L | 890*480*605 | 840*460*575 | 990*580*800 | 3KW | |
| JP-274 | 274L | 840*480*680 | 790*460*650 | 940*580*875 | 3KW | SUS 304 |
| JP-388 | 388L | 1080*460*680 | 1060*440*650 | 1480*560*875 | 4.5KW | SUS 304 |
| JP-483 | 483L | 1365*520*680 | 1315*500*650 | 1465*620*875 | 6KW | SUS 304 |
LOWER ENERGY BILLS
The Skymen Clean Tank System can save a single kitchen location thousands of $$ per year in energy costs.
Kitchens can use up to 3 times more energy than other commercial facilities. Much of this energy comes from heating water to clean equipment as well as heating stoves to cook food.
Standard 3-compartment sinks and power sinks must be regularly refilled with hot water to maintain the appropriate sanitary conditions, and dish and pot washer machines dispose of the heated water with each washing cycle.
The equipment cleaned in traditional sinks does not remove the baked on coated carbon crust and that makes them harder to heat on a stovetop, creating an inefficient cooking process that wastes gas and or electricity.
The Skymen Clean Tank System Double walled insulated Tank is Thermostatically controlled so water is kept at a constant 75 degrees and equipment comes out perfectly clean and sanitised. By using The Skymen Clean Tank System you potentially eliminate the need to heat up to Thousands of Litres of running hot water per year and save Kw-hours used per year.
Cleaning Effect show:
Factory and Warehouse
