Product Details:
|
| Model: | 060S | First Tank Volume: | 15L |
|---|---|---|---|
| Tank Size: | 330*300*150mm | Ultrasonic Power: | 360W |
| Heating Power: | 300W | Frequency: | 40KHz |
| Timer: | 0~30 Minutes Adjustable | Temperature: | 20~80℃ Adjustable |
| Material: | SUS304 | ||
| High Light: | 40KHz Benchtop Ultrasonic Cleaning Machine,360W Benchtop Ultrasonic Cleaning Machine,15L Laboratory Ultrasonic Cleaner |
||

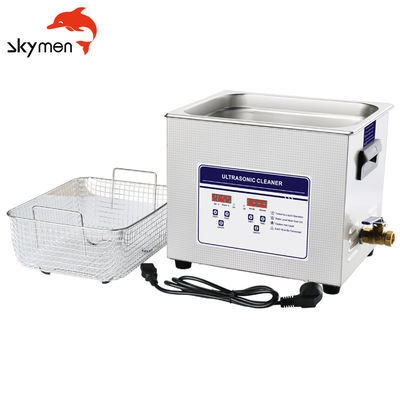

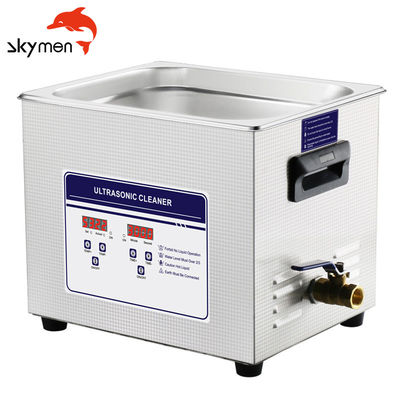

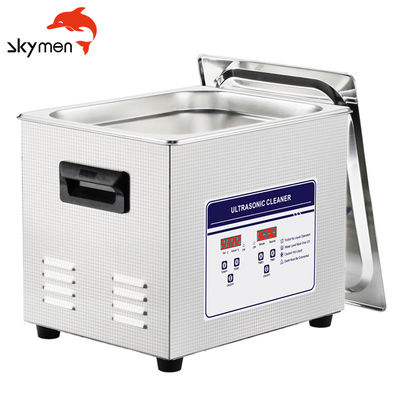

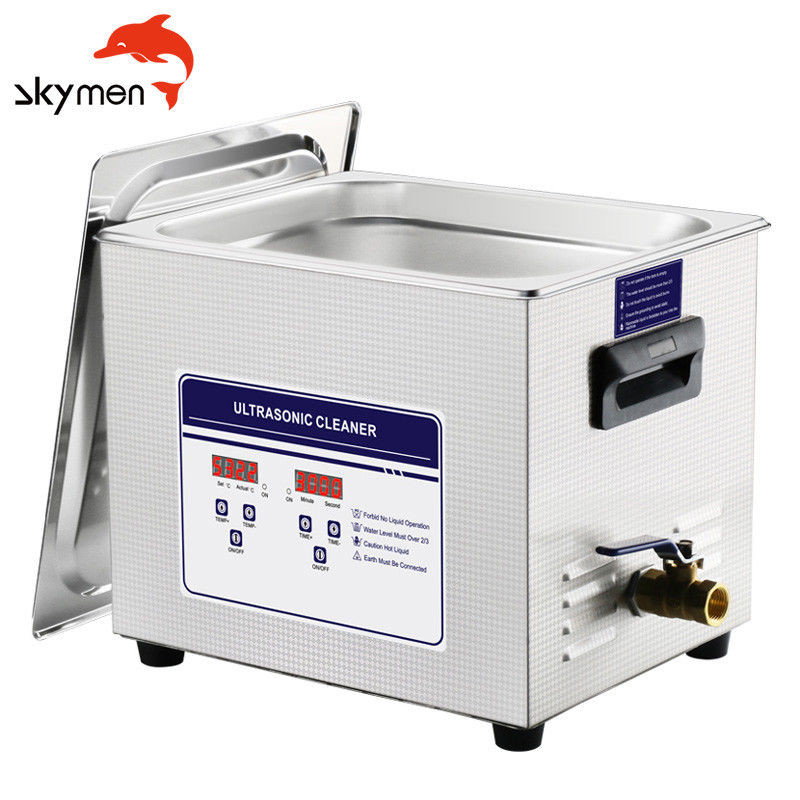

Surgery Tools Ultrasonic Washer for Dropper Glass Container lab tools 40KHz 15L 360W
Specifications:
| Ultrasonic Frequency | 40KHz |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 15L |
| Timer | 1-30minutes , Digital timer |
| Heater | 20°C to 80°C |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz |
| AC 220 ~ 240V, 50 / 60 Hz | |
| Ultrasonic Power | 360W |
| Heating Power | 300W, Digital Heating |
| Tank Size | 330 x 300 x 150 mm ( L x W x H ) |
| Unit Size | 400 x 350 x 280 mm ( L x W x H ) |
| Package Size | 460 x 410 x 340 mm ( L x W x H ) |
| N.W. | 9.5 kg |
| G.W. | 11 kg |
Similar models with different capacity:
| Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency |
| (L) | (L*W*H)mm | (W) | (W) | (KHz) | |
| 008 | 0.8 | 150*85*65 | 35 | 0 | 40 |
| 009 | 0.9 | 150*135*65 | 60 | 100 | 40 |
| 010T | 2 | 150*165*100 | 60 | 100 | 40 |
| 020S | 3.2 | 240*135*100 | 120 | 100 | 40 |
| 030S | 4.5 | 300*150*100 | 180 | 200 | 40 |
| 031S | 6.5 | 300*150*150 | 180 | 200 | 40 |
| 040S | 10 | 300*240*150 | 240 | 200 | 40 |
| 060S | 15 | 330*300*150 | 360 | 300 | 40 |
| 080S | 22 | 500*300*150 | 480 | 500 | 40 |
| 100S | 30 | 500*300*200 | 600 | 500 | 40 |
Details:
1. Lower noise.
2. tank capacity:15L, with Digital timer & heater control
3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6. 1 year warranty and technologe support all life.
If you want choose other function,please see the buying guide as below:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for common use and 28kHz for heavy duty oil removal
3. Choose tank material based on solvent, SUS304 or SUS316L
4. Other function optional, Ultrasonic cleaning tank + Ultrasonic Rinsing tank; Ultrasonic cleaning tank + Air agitation Rinsing tank; Ultrasonic cleaning tank + Water Rinsing tank; Ultrasonic cleaning tank + Hot air drying tank; Oil filtration system: detergent recycle use to save much cost.
Application:
Q. Can ultrasonic cleaning damage my parts?
No damage to your parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. As ultrasonic jewellery cleaner, it is safe for your jewelry, diamond or other expencive goods.
Q. Why is a special solution required for cleaning?
If no special solution,oil or other dirty adhere to the parts would just fall off the parts! The purpose of the solution is to break the bonds between parts and their oil. Water alone has no cleaning properties.
Q. What cleaning solution should I use?
Modern ultrasonic cleaning solutions are compounded from a variety of detergents, including wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. For selecting which one solution, you could consult your local solution company and they can give you more professional advice. strong acid and akali is not allowed as cleaning solution.
