6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

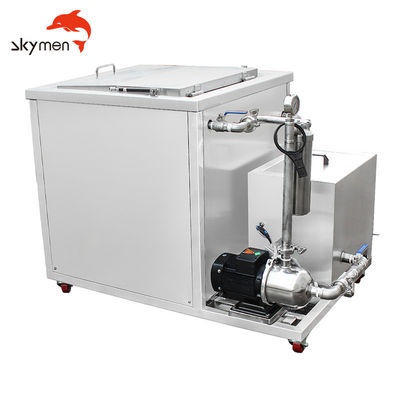

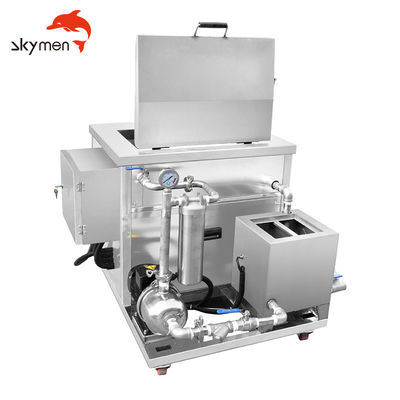

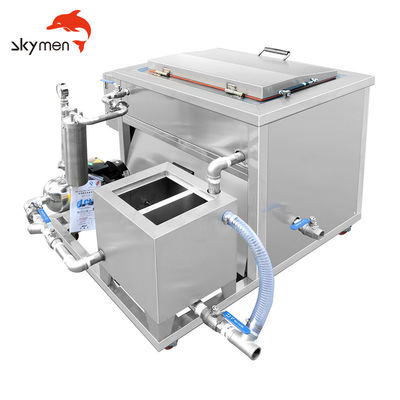

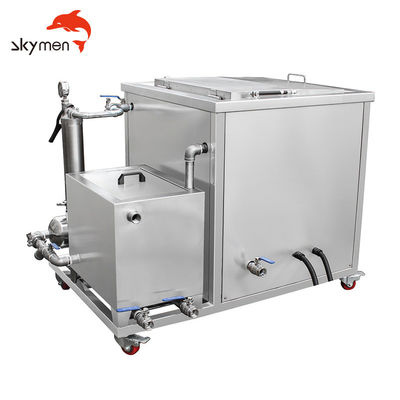

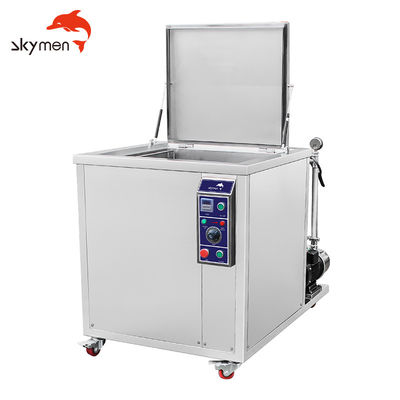

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters
6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters

Large Image :  6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-480G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters

Description
Model: JP-480G Tank Volume: 175L
Ultrasonic Power: 2400W Heating Power: 6000W
Frequency: 40KHz/28KHz Internal Tank Size: 700X500X500mm (L*W*H)
Filter Cycle System: 1 Set Gross Weight: 250KG
High Light:

6000W Heating Ultrsonic Cleaning Machine

,

28KHz Ultrsonic Cleaning Machine

,

175L Ultrasonic Filters Cleaner

Ultrsonic Cleaning Machine 175L For Filters With 6000W heating

Specification:

Model JP-480G
Tank Volume 175L
Internal tank size 700X500X500mm
Transducers 48pcs 50W of every transducer
Ultrasonic Power 2400W
Heating Power 6000W
Frenquency 28KHz/40KHz
Filtration Cycle System 1 set
Unit size 1000*1150*900mm
Packing size 1080*1250*1050mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Shell material SUS 201
Shell thickness 1mm
Tank thickness 2mm
Tank Material SUS 304 default, can be SUS 316
Power Supply AC 110V ; AC 220V
N.W. 230KG
G.W. 260KG Wrapped by film in wooden case
Lead time 12 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Our service:

Pre-sale Service
1. Reply your messages or emails within 12 hours.
2. OEM&ODM acceptable(Custom- made logo or package).
3. Professional solutions are provided.
4. New product recommendation.
5. Drop- shipping available

After- sales Service
Within 12 months, if there will be any problem with the machine, we will allow the professional person to handle it for you or to the site.


 6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 0

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 1

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 2

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 3

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 4

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 5

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 6

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 7

Features
1. Digital LED screen display
2. Fast and effective cleaning, convenient for users
3. Clean rings, earrings, necklaces, new features of diamonds,
4. Use only tap water or add a small amount of detergent for better cleaning
5. The cleaning effect is obvious
6. Cleaning items shine like new ones
7. Compact cover design to reduce noise



Same series with different size:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120G 500X300X250 38L 600W 1500W 12pcs
JP-180G 500X350X300 53L 900W 1500W 18pcs
JP-240G 550X400X350 77L 1200W 3000W 24pcs
JP-300G 550X450X400 99L 1500W 3000W 30pcs
JP-301G 800X300X400 96L 1500W 3000W 30pcs
JP-360G 600X500X450 135L 1800W 4500W 36pcs
JP-480G 700X500X500 175L 2400W 6000W 48pcs
JP-600G 800X600X550 246L 3000W 6000W 60pcs
JP-720G 1000X600X600 360L 3600W 9000W 72pcs
JP-1108G 1000X900X600 540L 5400W 18000W 108pcs
JP-1144G 1200X1000X800 960L 7200W 27000W

144pcs

Cleaning Effect show:

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 8
Working Principle:
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.



6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 9

6000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 106000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 116000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 126000W Heating 28KHz 175L Ultrsonic Cleaning Machine For Filters 13
