Product Details:
|
Model: | JP-240G | Tank Volume: | 77L |
---|---|---|---|
Ultrasonic Power: | 1200W | Heating Power: | 3000W |
Frequency: | 40KHz/28KHz | Internal Tank Size: | 550X400X350mm (L*W*H) |
Filter Cycle System: | 1 Set | Gross Weight: | 160KG |
High Light: | 77L Industrial Ultrasonic Cleaner,SUS201 Industrial Ultrasonic Cleaner,1200W Ultrasonic Instrument Cleaner |

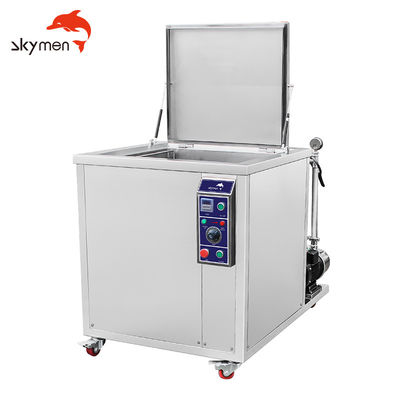

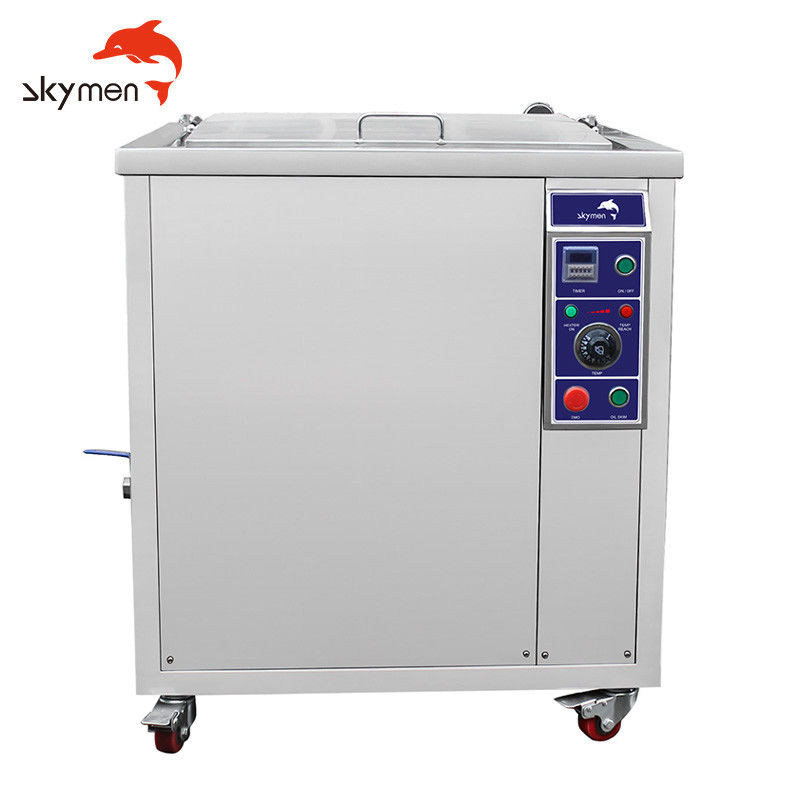

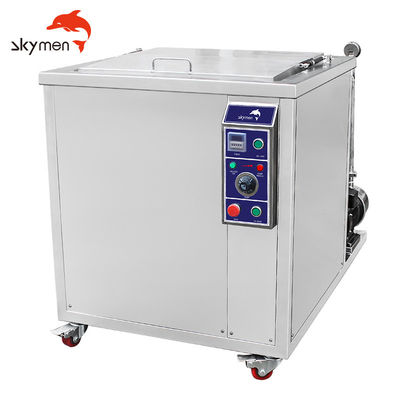

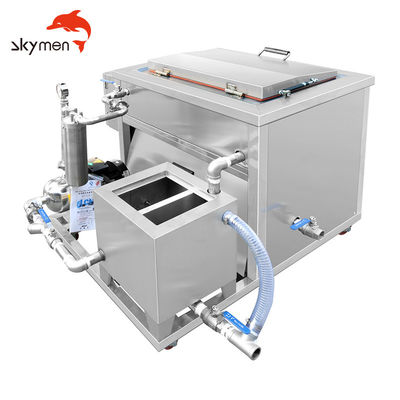

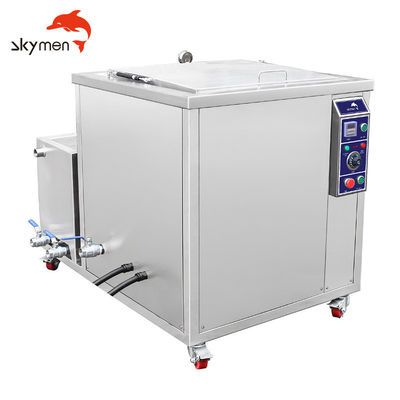

Ultrsonic Cleaning Machine 77L for Printed Board Removing Spot
Specification:
Model | JP-240G |
Tank Volume | 77L |
Internal tank size | 550X400X350mm |
Transducers | 24pcs 50W of every transducer |
Ultrasonic Power | 1200W |
Heating Power | 3000W |
Frenquency | 28KHz/40KHz |
Filtration Cycle System | 1 set |
Unit size | 850*1050*750mm |
Packing size | 920*1150*900mm |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Shell material | SUS201 |
Shell thickness | 1mm |
Tank thickness | 2mm |
Tank Material | SUS 304 default, can be SUS 316 |
Power Supply | AC 110V ; AC 220V |
N.W. | 140KG |
G.W. | 160KG Wrapped by film in wooden case |
Lead time | 12 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS, FCC, SGS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Advantages of ultrasonic cleaners:
1. Convenient and time saving, saving manpower and saving time.
2. The ultrasonic cleaning machine is designed with multiple safety devices, electric drive, no gas generation, and is environmentally friendly. With advanced technology and an experienced design team, the ultrasonic cleaner is able to clean a variety of printheads. Quality assurance CE and ISO9001.
3. With our own design and technology, our machines are designed to be highly efficient and clean, without damaging the cleaning components and for precise items.
4. We have our own independent technology research and development team as well as experienced design teams and skilled workers. We are able to offer the highest quality machines at the factory price.
Features
1. Digital LED screen display
2. Fast and effective cleaning, convenient for users
3. Clean rings, earrings, necklaces, new features of diamonds,
4. Use only tap water or add a small amount of detergent for better cleaning
5. The cleaning effect is obvious
6. Cleaning items shine like new ones
7. Compact cover design to reduce noise
Same series with different size:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-120G | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JP-180G | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JP-240G | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JP-300G | 550X450X400 | 99L | 1500W | 3000W | 30pcs |
JP-301G | 800X300X400 | 96L | 1500W | 3000W | 30pcs |
JP-360G | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JP-480G | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JP-600G | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
JP-720G | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JP-1108G | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JP-1144G | 1200X1000X800 | 960L | 7200W | 27000W |
144pcs |
Cleaning Effect show:
Working Principle:
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
RFQ
Q: How to control the cleaning time?
A: Generally, 3minutes is enough for daily goods clean.
Q: Does ultrasonic cleaner damage the articles?
A: Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
Q: What about after-sale service?
A: our company provides 1 Year warranty. If any technical problem during warranty time, replacement parts will be sent free of charge. After warranty time, technical support is also available for every customer.
Q: What kind of cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece.
