Product Details:
|
Certification: | CE;FCC; ROHS | Material: | Stainless Steel |
---|---|---|---|
Machine Type: | Industrial Ultrasonic Cleaner | Fuel: | Fuel Injector Cleaning Machine |
Condition: | For Cleaning Hardware Parts | After-sales Service Provided: | On Line Vido Support |
Using: | Industrial Using | ||
High Light: | SUS316L Industrial Ultrasonic Cleaner,960L Industrial Ultrasonic Cleaner,900W Car Parts Ultrasonic Cleaner |

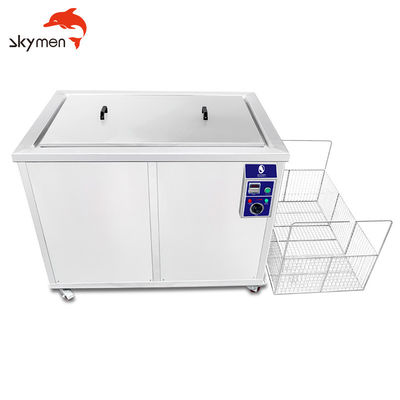

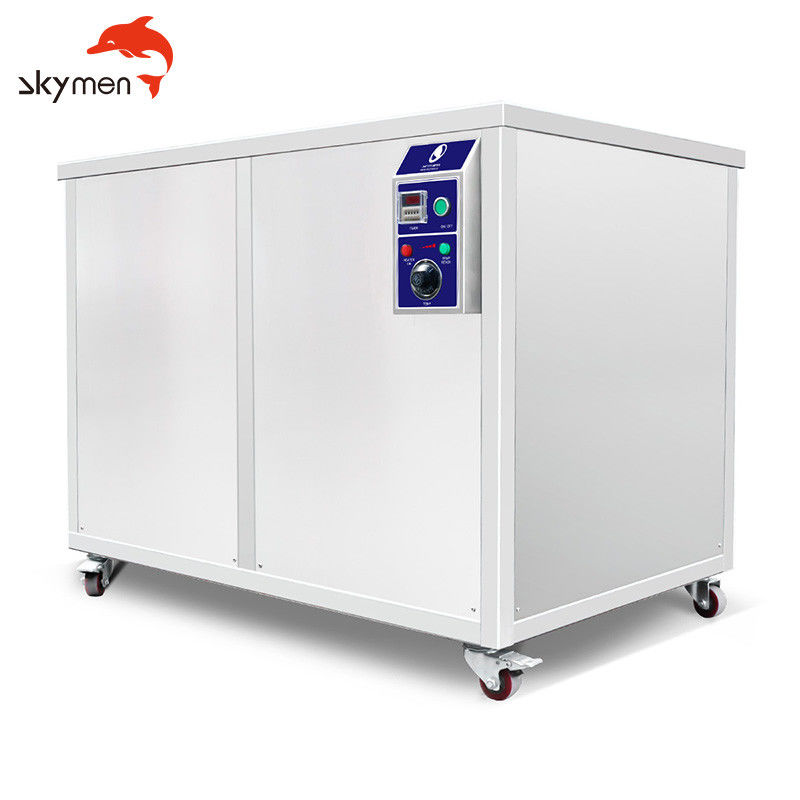

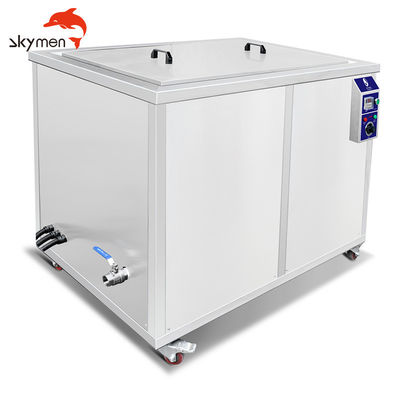

SKYMEN 960L Industrial Ultrasonic Cleaner for Cleaning Car Parts Boat Hardware
Product series | Model | Inner tank size | Outer tank size | Package size | Capacity | Timer | Frequency | Transducer | Ultrasioic Power |
Heating POwer |
Ultrasonic single tank cleaning. | JP-120ST | 500X300X250 | 710*510*745 | 800x570x870 | 38L | 1-99min | 40/28KHz(内) | 12 | 600W | 1.5KW |
JP-180ST | 500X350X300 | 710*560*745 | 800x650x880 | 53L | 1-99min | 40/28KHz(内) | 18 | 900W | 1.5KW | |
JP-240ST | 550X400X350 | 780*610*815 | 860x680x940 | 77L | 1-99min | 40/28KHz(内) | 24 | 1200W | 3KW | |
JP-300ST | 550X450X400 | 830*695*845 | 930x800x980 | 99L | 1-99min | 40/28KHz(内) | 30 | 1500W | 3KW | |
JP-301ST | 800X300X400 | 1000*520*830 | 1100x620x980 | 96L | 1-99min | 40/28KHz(内) | 30 | 1500W | 3kw | |
JP-360ST | 600X500X450 | 870*770*810 | 980x840x960 | 135L | 1-99H | 40/28KHz | 36 | 1800W | 4.5KW | |
JP-480ST | 700X500X500 | 985*765*820 | 1080x850x970 | 175L | 1-99H | 40/28KHz | 48 | 2400W | 6KW | |
JP-600ST | 800X600X550 | 1070*865*1010 | 1190x930x1050 | 264L | 1-99H | 40/28KHz | 60 | 3000W | 6KW | |
JP-720ST | 1000X600X600 | 1290*875*1010 | 1390x930x1150 | 360L | 1-99H | 40/28KHz | 72 | 3600W | 9KW | |
JP-1108ST | 1000*900*600 | 1210*1110*1010 | 1300x1200x1150 | 540L | 1-99H | 40/28KHz | 108 | 5400 | 18KW | |
JP-1144ST | 1200*1000*800 | 1400*1200*1150 | 1550x1400x1200 | 960L | 1-99H | 40/28KHz | 144 | 7200 | 24KW |
Please choose the size fits for you, or cotact for professional suggestions:
Model: Skymen™ | JTS-1012 | JTS-1018 | JTS-1024 | JTS-1030 | JTS-1036 | JTS-1072 | |||
TANK'S WORKING DIMENSION (mm) | L1 | 355 | 406 | 500 | 500 | 500 | 1110 | ||
W1 | 305 | 305 | 355 | 406 | 460 | 600 | |||
H1 | 355 | 460 | 500 | 500 | 550 | 600 | |||
OVERALL DIMENSION (mm) | L2 | 535 | 586 | 680 | 710 | 710 | 1320 | ||
W2 | 485 | 485 | 535 | 586 | 640 | 780 | |||
H2 | 750 | 680 | 720 | 720 | 770 | 820 | |||
TANK'S TOTAL CAPACITY | 38L | 56L | 88L | 101L | 126L | 369L | |||
TANK'S MATERIAL | SUS304 / SUS316L | ||||||||
IN-TANK SURFACE FINISHING | Hard-Cr Plating Treatment ( 20+ microns ) | ||||||||
HOUSING'S MATERIAL | Stainless steel | ||||||||
ULTRASONIC FREQUENCY* | 28kHz / 40kHz | ||||||||
ULTRASONIC TRANSDUCER | 12 | 18 | 24 | 30 | 36 | 72 | |||
ULTRASONIC OUTPUT POWER (MAX.) | 600W | 900W | 1200W | 1500W | 1800W | 3600W | |||
ELECTRONIC GENERATOR | KG600 | KG900 | KG1200 | KG1500 | KG1800 | KG3600 | |||
Build-in | Separate | ||||||||
HEATER'S (HOT PLATE) POWER | 1.5kW | 3kW | 4.5kW | 9KW |
Customized is available
rinse tank drying tank ultrasonic centrifuge oil cleaner effect :
Packing , loading, delivery time | |
Package | 1 unit/wooden case |
Packing way | Polybag + wooden case |
Loading port | Shenzhen |
Delivery time | In 15 working days |
Quality control:
QC would strictly check the raw material step by step to ensure quality product.
We salesman would also trace the production process to ensure machine 100% suit with sample
100% products checking, each unit would test at least 4hours before packed.
Everyone in Skymen would try to solve problems together with you.
Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaner with different capacity.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.
Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.
Suggestion and drawing is professional for you.
Welcome to visit our factory, provide your precious guidance and conduct business negotiation.
Remark:
1. tank size and other functions can be custom made
2. customer logo is acceptable
3. packing by wooden case
4. lead time is negotiable according to qty. and custom made requirements
