Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

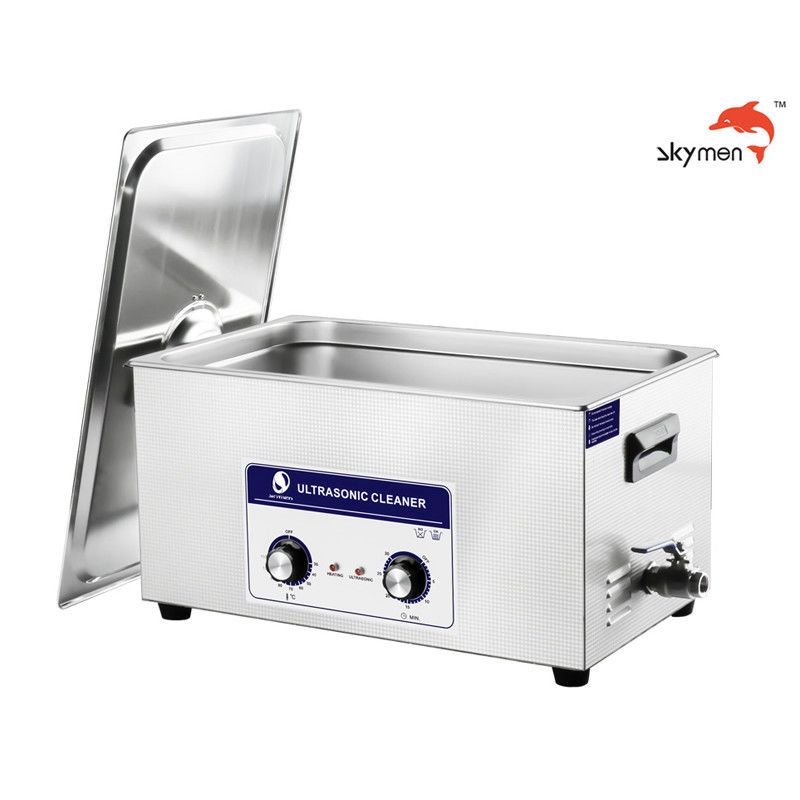

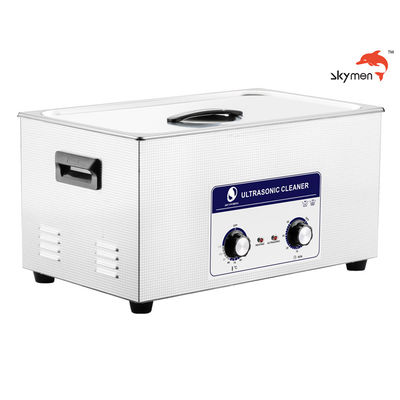

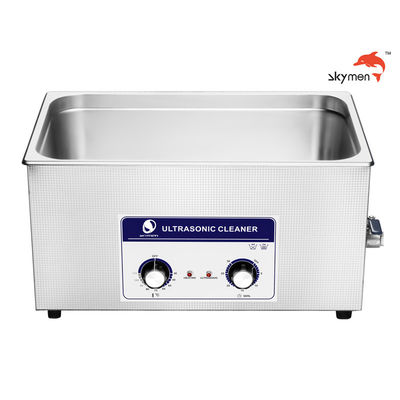

Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment

Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment
Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment

Large Image :  Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-080
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 1unit per carton
Delivery Time: In Stock
Supply Ability: 8000 pcs per month

Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment

Description
Model: JP-080 Capacity: 22L
Tank Size: 500*300*150mm Unit Size: 585*330*280mm
Paking Size: 635*410*335mm Transduces: 8pcs
Ultrasonic Power: 480W Timer: 0-30 Minutes Adjustable
Frequency: 40KHz Material: SUS 304
G.W: 14KG Power Supply: AC 110V ; AC 220V
Heating Power: 500W
High Light:

Rifle Gun Parts Ultrasonic Cleaner

,

22L Ultrasonic Digital Cleaner

Mechanical Knob Ultrasonic Cleaner Ultrasonic Surgical Instrument Cleaning Bath



Features:

  • More convenient for operation
  • Stainless steel tank has resistance to wear and long work life.
  • Tank capacity: 22L
  • With Stainless steel basket
  • Use just tab water, or industrial  solvent cleaner for more higher cleaning requirement
  • Industrial control chip microcontroller.flexible circuit boards control, more secure & stable

JP-080 product specification:

Ultrasonic frequency 40,000Hz
Material of tank SUS304
Material of shell SUS304
Capacity 22L
Timer 0~30 mins
Heater 500W
Power supply type 1 AC 100~120V, 50/60Hz
Power supply type 2 AC 220~240V, 50/60Hz
Ultrasonic power 480W
Tank inner dimension 500*300*150mm
Unit dimension 585*330*280mm
Inner Packing size 635*410*335mm
Transducers 8pcs
N.W. 12.6kg
G.W. 14kg
Certificate ISO9001:2008 & CE & RoHS



Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment 0



Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment 1

How to Use an Ultrasonic Cleaner for Medical & Surgical Instruments


Medical and surgical instruments in a variety of sizes and complexity can pose challenges when it comes to cleaning, disinfecting and sterilizing them after use. An ultrasonic cleaner is an ideal tool for the first step in this three step process to protect medical personnel and patients from possible infection due to pathogens that remain on the instruments after a procedure.





Suggested Ultrasonic Cleaning Procedure

In all cases manufacturers’ instructions should be followed when using an ultrasonic cleaning process. These are representative steps.

Fill the ultrasonic cleaning tank with an approved medical instrument cleaning solution such as CLN-LR012 available from Tovatech following dilution instructions provided. Turn the cleaner on to start the degassing process. This step removes entrained air in new solutions that interferes with the efficiency of cavitation and takes approximately 10 minutes.

In the meantime:

  • Segregate instruments by alloy or composition to avoid potential damage (Chromium plated instruments should not be cleaned ultrasonically)
  • Instruments with movable parts should be disassembled to facilitate cleaning
  • Place the instruments the ultrasonic cleaner’s mesh basket, taking care that they do not come in contact with each other
  • Cannulated or lumened instruments should be positioned to insure interiors are wetted with the cleaning solution. In some instances placing them on an angle will facilitate this
  • Set the control panel per manufacturers’ instructions and start the cleaning process

At the end of the cycle, remove the instruments from the ultrasonic cleaning bath and thoroughly rinse them to remove all traces of the cleaning solution. Deionized water rinses will avoid spotting. If the instruments are not to be immediately disinfected and sterilized be certain that they are thoroughly dried and protected. Part reassembly can occur after sterilization.

Procedures should be in place to guide the replacement of used ultrasonic cleaning solutions. In some instances it is recommended that solution be drained and tanks thoroughly cleaned and dried after each ultrasonic cleaning cycle. Most solutions available today are biodegradable, which facilitates disposal but local authorities should be consulted on proper practices.


The ultrasonic cleaner uses ultrasonic waves (vibration) using water with detergents or enzymatic products to break up soil and organic material on medical instruments/devices. These devices are rinsed then autoclaved (sterilized). The autoclave sterilizer uses heat, steam, and pressure to kill all pathogenic microorganisms and their spores.



Package Includes:
1 x Digital Ultrasonic Cleaner
1 x Cleaning Basket
1 x Manual

Rifle Gun Parts 22L SUS304 Ultrasonic Cleaning Equipment 2
