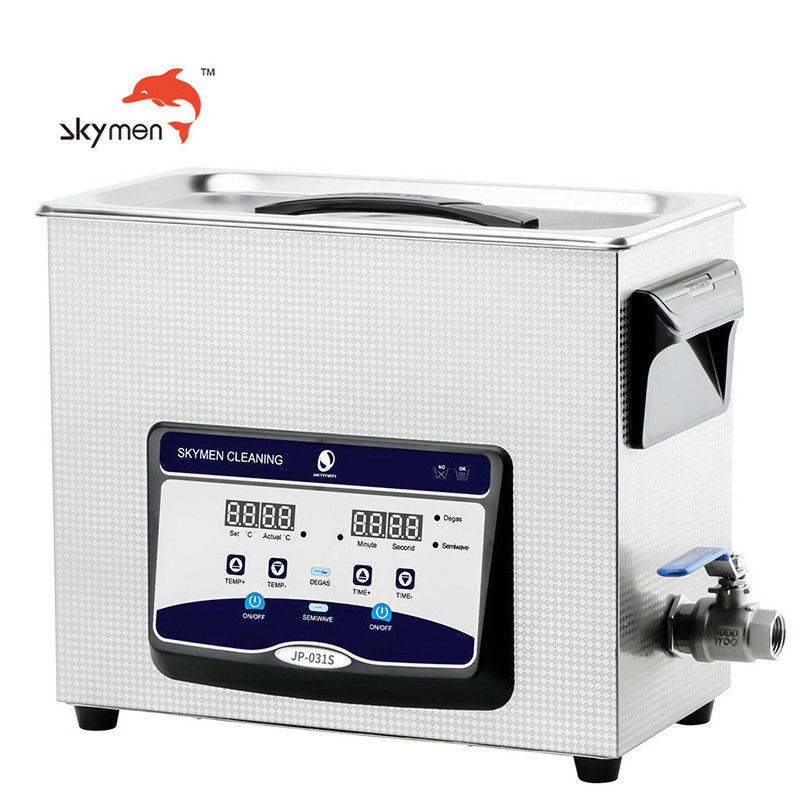

Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner

Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner
Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner
Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner

Large Image :  Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS FCC SGS
Model Number: JP-031S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 1unit per box
Delivery Time: In Stock
Supply Ability: 8000 pcs per month

Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner

Description
Model: JP-031S Capacity: 6.5L
Tank Size: 300*150*150mm Unit Size: 375*200*275mm
Paking Size: 350*260*350mm Ultrasonic Power: 90W/180W
Timer: 0-30 Minutes Adjustable Frequency: 40KHz
Material: SUS 304 G.W: 6.2KG
Power Supply: AC 110V ; AC 220V Heating Power: 200W
High Light:

180W Ultrasonic Parts Cleaner

,

6.5 Industrial Ultrasonic Cleaner

Lab Medical Ultrasonic Cleaner 6.5L 180W High Frequency Ultrasonic Cleaner SUS304 tank



Features:

  • Sensitive touch control panel
  • Digital Control display
  • More convenient for operation
  • Stainless steel tank has resistance to wear and long work life.
  • Tank capacity: 6.5L
  • Digital timer, clear digital LCD display
  • With Stainless steel basket
  • Use just tab water, or industrial  solvent cleaner for more higher cleaning requirement
  • Industrial control chip microcontroller.flexible circuit boards control, more secure & stable

JP-031S product specification:

Ultrasonic frequency 40,000Hz
Material of tank SUS304
Material of shell SUS304
Capacity 6.5L
Timer Digital control, 0~30 mins
Heater 200W
Power supply type 1 AC 100~120V, 50/60Hz
Power supply type 2 AC 220~240V, 50/60Hz
Ultrasonic power 90W /180W
Tank inner dimension 300*150*150mm
Unit dimension 375*200*275mm
Inner Packing size 350*260*350mm
Transducer 3pcs
N.W. 5.4kg
G.W. 6.2kg
Certificate SGS & CE & RoHS & FCC





How to Use an Ultrasonic Cleaner for Medical & Surgical Instruments


Medical and surgical instruments in a variety of sizes and complexity can pose challenges when it comes to cleaning, disinfecting and sterilizing them after use. An ultrasonic cleaner is an ideal tool for the first step in this three step process to protect medical personnel and patients from possible infection due to pathogens that remain on the instruments after a procedure.





Suggested Ultrasonic Cleaning Procedure

In all cases manufacturers’ instructions should be followed when using an ultrasonic cleaning process. These are representative steps.

Fill the ultrasonic cleaning tank with an approved medical instrument cleaning solution such as CLN-LR012 available from Tovatech following dilution instructions provided. Turn the cleaner on to start the degassing process. This step removes entrained air in new solutions that interferes with the efficiency of cavitation and takes approximately 10 minutes.

In the meantime:

  • Segregate instruments by alloy or composition to avoid potential damage (Chromium plated instruments should not be cleaned ultrasonically)
  • Instruments with movable parts should be disassembled to facilitate cleaning
  • Place the instruments the ultrasonic cleaner’s mesh basket, taking care that they do not come in contact with each other
  • Cannulated or lumened instruments should be positioned to insure interiors are wetted with the cleaning solution. In some instances placing them on an angle will facilitate this
  • Set the control panel per manufacturers’ instructions and start the cleaning process

At the end of the cycle, remove the instruments from the ultrasonic cleaning bath and thoroughly rinse them to remove all traces of the cleaning solution. Deionized water rinses will avoid spotting. If the instruments are not to be immediately disinfected and sterilized be certain that they are thoroughly dried and protected. Part reassembly can occur after sterilization.

Procedures should be in place to guide the replacement of used ultrasonic cleaning solutions. In some instances it is recommended that solution be drained and tanks thoroughly cleaned and dried after each ultrasonic cleaning cycle. Most solutions available today are biodegradable, which facilitates disposal but local authorities should be consulted on proper practices.


The ultrasonic cleaner uses ultrasonic waves (vibration) using water with detergents or enzymatic products to break up soil and organic material on medical instruments/devices. These devices are rinsed then autoclaved (sterilized). The autoclave sterilizer uses heat, steam, and pressure to kill all pathogenic microorganisms and their spores.



Control panel:

Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner 0



products details:

Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner 1



Application:

Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop, printing industry.

Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner 2



Working priciple of Ultrasonic Cleaner

Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner 3

Package Includes:
1 x Digital Ultrasonic Cleaner
1 x Cleaning Basket
1 x Manual



Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner 4

Cleaning effect:



Lab SUS304 Tank 6.5L 180W Medical Ultrasonic Cleaner 5
