Product Details:
|
| Function: | Drying | Transfer Way: | Automatic Convey Belt |
|---|---|---|---|
| Speed: | 10~60 Second For 1 Circle | Loading Weight: | Up To 200KG |
| Highlight: | ultrasonic welding equipment,ultrasonic welding generator |
||

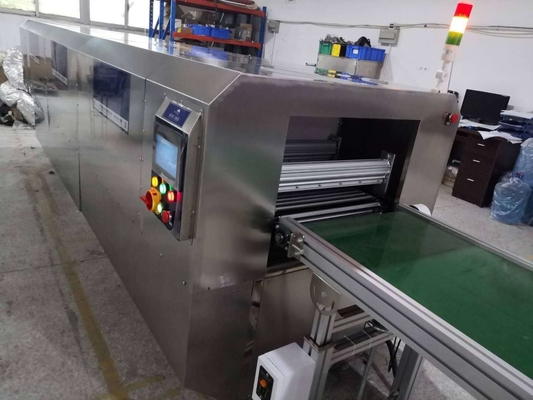

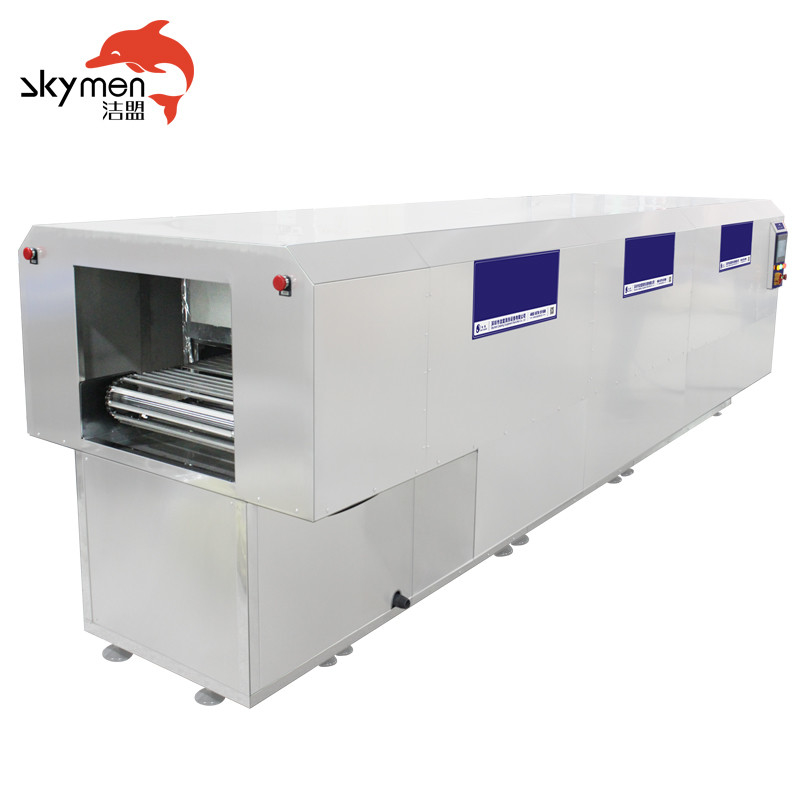

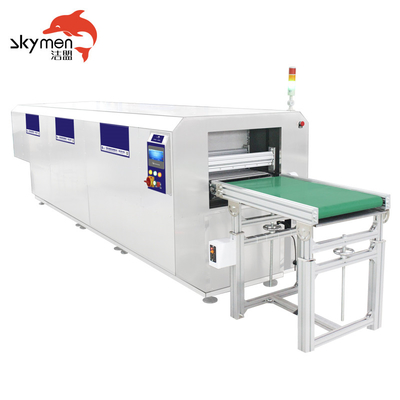

Skymen Printing Tunnel Drying Oven with Automatic Convey Belt 6000W
Range of application:
Hardware,electron,chemical,printing,sports equipment,footwear industry,auto parts and so on.
| Boundary Dimension | L10000*W1200*H1650 (can be customized) |
| Effective Drying Dimension | Total length 6000mm, the height of feed port is 150mm(Adjustable) |
| PVC Belt Transmission | The width of the belt is 980mm, the roller height from ground is 750±30 |
| The Height of Material Area | Upper area 2000mm, down area 2000mm |
| The material of the conveyor | Green PVC belt conveyor |
| The body material | The shell plating is with 1.5mm cold plate coating , the inner plate is with 304 stainless steel pate |
| Temperature range | RT~250℃ (Adjustable) |
| Power source | AC 380V 3 Phrases 50HZ |
| Power | 30KW(According to the equipment size and temperature |
| Heating Tube | Stainless steel U shape electric heating tube with fins |
| Wind Carrying Type |
Horizontal Wind Up and down wind Right and left wind Three sided wind |
![]()
![]()
