Product Details:
|
Model: | JP-180ST | Material: | SUS 304 / 316 |
---|---|---|---|
Frequency: | 40KHz / 28KHz / 68KHz / 132KHz | Tank Capacity: | 53L |
Tank Size: | 500X350X300 Mm | Transducer: | 18pcs |
Ultrasonic Power: | 900W | Heating Power: | 1500W |
Timer: | 1-99 Minutes Adjustable | Heater: | 20~95C Adjustable |
Highlight: | dual frequency ultrasonic cleaner,ultrasonic washing machine |
Automobile Parts Ultrasonic Cleaner Machine 53L With 1500W Heating Power
In automobile maintenance and repair, cleaning of parts is a relatively important task. After each assembly is disassembled into parts, the oil, carbon and scale of the parts must be removed, so that the assembly and vehicle assembly can be smoothly carried out. Remove the dirt, wash the inside of the car and its assembly and parts, you can find problems (such as abnormal wear, cracks, loosening, etc.) in time, and take corresponding measures to prevent hidden dangers.
Automobile parts cleaning methods are divided into washing, ultrasonic cleaning, solvent washing and chemical washing. Contamination of parts includes: external deposits, residues of lubricating materials. As these dirt have different properties and characteristics, and often have high adhesion, the cavitation of ultrasonic waves in water can loosen and peel off these attached oil stains. The use time is short, and the damage to parts is small.
Specificatoin:
Model | JP-180ST |
Frequency | 40KHz / 28KHz |
Housing material | SUS304 |
Tank material | SUS304 / 316 |
Transducer | 18pcs |
Ultrasonic power | 900W (12pcs transducers) |
Heating power | 1500W |
Tank capacity | 53L |
Water inlet / outlet | Yes |
Timer | Digital 1-99 min adjustable |
Heater | 0~80℃ |
Voltage | AC 100~120V, 60Hz AC 220~240V, 50Hz |
Tank size | 500X350X300mm |
Unit size | 735*455*695 mm |
Packing size | Wooden case |
N.W. | 75 Kg |
G.W. | 85 Kg |
Certificate | ISO9001:2008|CE & REACH |
From 10 galles to 200 gallons ,size could be customized

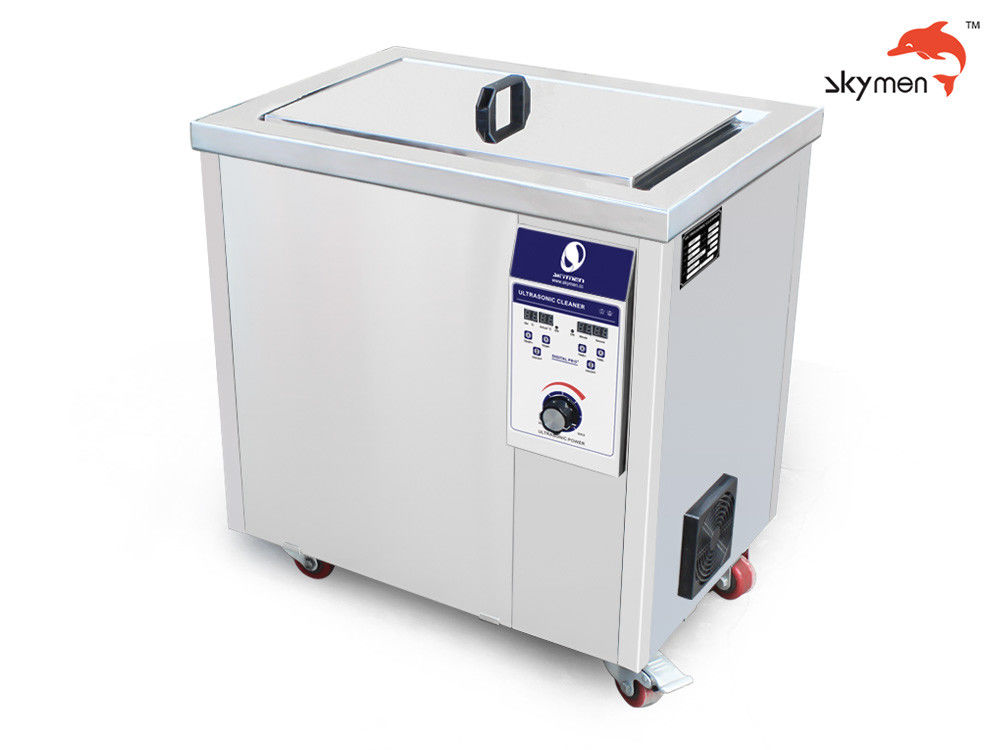

Images of this model:
The whole set machine including:
1* cleaning machine
1* lid
1* basket
Similar models with different tank volume:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-120ST | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JP-180ST | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JP-240ST | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JP-300ST | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
JP-301ST | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
JP-360ST | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JP-480ST | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JP-600ST | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
JP-720ST | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JP-1108ST | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JP-1144ST | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
Cleaning effect contrast:
Allication in Engine
After a long period of use, there will be a lot of oil on the engine surface. If you do not remove these oils, it will affect the use of the car, reduce the service life of the car, and even have certain safety hazards. Therefore, engine cleaning is very necessary.
Traditional cleaning is the use of manual cleaning or high pressure water guns. However, manual cleaning is difficult to clean some blind holes and gaps in the engine; the effect of high-pressure water gun on oil pollution is not very significant.
The effect of ultrasonic cleaning is very remarkable. The oil on the surface and the oil on the gap can be effectively removed under the impact of tens of thousands of ultrasonic waves. And with the application of the filtration circulation system, it can effectively filter out the concentrated treatment of oil, which greatly saves water resources and has negligible impact on the environment.
