Home ProductsUltrasonic Blind Cleaner

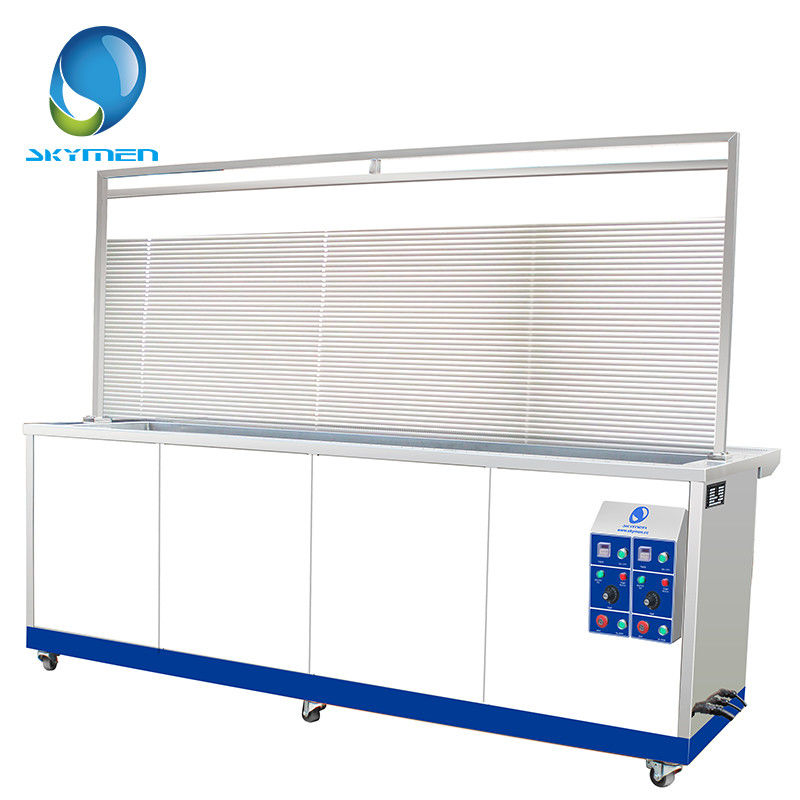

Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz

Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz
Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz

Large Image :  Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-2060T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz

Description
Model: JP-2060T First Tank Volume: 264L
First Tank Size: 2400X220X500mm Transducers: 60cs, 50W Of Every Transducer
Ultrasonic Power: 3000W Heating Power: 6000W
Function: Ultrasonic Clean+rinsing+drying Frequency: 28/40KHz
High Light:

ultrasonic blind cleaning equipment

,

blind cleaning machine

264L Ultrasonic Blind Curtain Cleaner 3000W 28/40KHz With Drain Holder and Rinsing Tank



The advantages of the ultrasonic cleaning machine are: the ultrasonic cleaning effect is good, and the operation is simple. The sound that people hear is the acoustic signal with a frequency of 20-20000 Hz. The sound wave higher than 20000 Hz is called ultrasonic wave. The transmission of sound wave propagates longitudinally according to the sinusoidal curve, generating a large number of small bubbles. One reason is that a tensile stress is locally generated in the liquid to form a negative pressure. The decrease in pressure causes the gas originally dissolved in the liquid to be supersaturated, and escapes from the liquid to become small bubbles; another reason is that the strong tensile stress tears the liquid. "Become a hollow, called cavitation.



Same series with different size for your choice:

Model 1st tank volume 1st tank size Transducers Ultrasonic Power Heating power Frequency
JP-2036T 160L 2000*200*400mm 36pcs 1800W 4500W 28/40KHz
JP-2060T 264L 2400*220*500mm 60pcs 3000W 6000W 28/40KHz
JP-2072T 330L 3000*220*500mm 72pcs 3600W 12000W 28/40KHz

Specification

Model JP-2060T
1st Tank Volume 264L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 264L   Ultrasonic Rinsng tank
1st tank size 2400*220*500mm
2nd tank size 2400*220*500mm
Transducers 60pcs
Ultrasonic Power  3000W
Heating Power of Ultrasonic tank 6000W
Frenquency 28KHz/40KHz
Generator 2pcs
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 300G
G.W.

350KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Feature:

1. It's designed for cleaning blind curtains.
2.There are 2 tanks, one is for Ultrasonic clean with heating function, you
can put chemicals in it to clean, another is rinsing tank for removing the
chemicals from curtain.
3. There is a high holder to support the blind curtain, and a leachate
frame to hold the wet curtain



Ultrasonic waves propagate in the liquid, causing the liquid to vibrate together with the cleaning tank at the ultrasonic frequency. When the liquid and the cleaning tank vibrate, they have their own natural frequencies. This vibration frequency is the acoustic frequency, so people hear the humming sound. With the continuous development of the cleaning industry, more and more industries and enterprises have applied ultrasonic cleaning machines.



The most suitable cleaning temperature for the water cleaning solution is 50-60 ° C. Especially in the case of cold weather, if the temperature of the cleaning solution is low, the cavitation effect is poor, and the cleaning effect is also poor. Therefore, some washing machines are wound around the heating cylinder to heat the heating wire for temperature control. When the temperature rises, cavitation is easy to occur, so the cleaning effect is good. When the temperature continues to rise, the gas pressure in the bubble increases, causing the impact sound pressure to drop, reflecting the multiplication of the two factors.



Images:
Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz 0Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz 1Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz 2

Adjustable Timer Ultrasonic Blind Cleaning Equipment 264L 3000 Watt 28/40KHz 3

Principle

The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
