Product Details:
|
| Model: | JP-2048H | First Tank Volume: | 175L |
|---|---|---|---|
| First Tank Size: | 700X500X500mm | Transducers: | 48pcs; 50W Of Every Transducer |
| Ultrasonic Power: | 2400W | Heating Power: | 6000W |
| Heating Power Of Dryer: | 750W | Frequency: | 28/40KHz |
| High Light: | automotive ultrasonic cleaner,ultrasonic cleaning device |
||

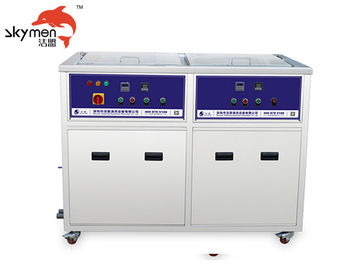

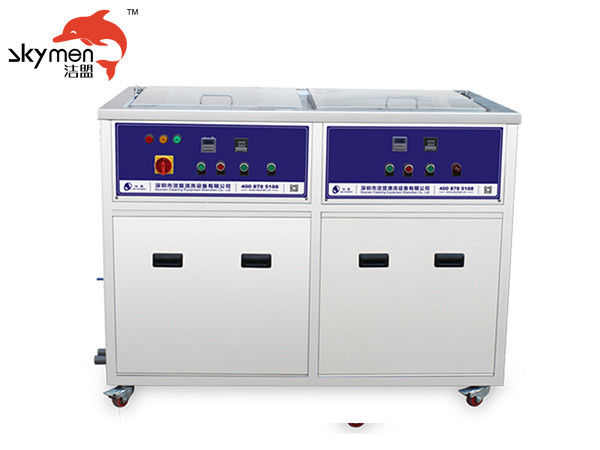

175L Ultrasonic Cleaner 2400W for Iron/titanium with Drying System 28/40KHz
Specification
| Model | JP-2048H |
| 1st Tank Volume | 175L |
| 2nd Tank Volume | 175L |
| First tank size | 700X500X500mm |
| Second tank size | 700X500X500mm |
| Transducers | 48pcs 50W of every transducer |
| Ultrasonic Power | 2400W |
| Heating Power of Ultrasonic tank | 6000W |
| Heating Power of Drying tank | 750W |
| Frenquency | 28KHz/40KHz |
| Drying System | 1 set |
| Unit size | 1940*760*1100mm |
| Packing size | 2000*820*1220mm |
| Timer | 0~99 minutes adjustable |
| Heater | Room temperature~99℃ adjustable |
| Material | SUS 304 default, can be SUS 316 |
| Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
| N.W. | 250G |
| G.W. | 280KG Wrapped by film in wooden case |
| Lead time | 18 working days |
| Warranty | 1 year warranty period, technique support all time |
| Certificates | CE, RoHS, FCC, SGS |
| Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Clean effect:
Same series with different size for your choice:
| Model | Size of every tank | Tank Volume | Ultrasonic Power | Heating Power of Ultrasonic tank | Heating Power of drying tank | Transducer |
| L*W*H (mm) | (L) | (W) | (W) | 750W | (pcs) | |
| JP-2012H | 500X300X250 | 38L*2 | 600W | 1500W | 750W | 12pcs |
| JP-2018H | 500X350X300 | 53L*2 | 900W | 1500W | 750W | 18pcs |
| JP-2024H | 550X400X350 | 77L*2 | 1200W | 3000W | 750W | 24pcs |
| JP-2030H | 550X450X400 | 99L*2 | 1500W | 3000W | 750W | 30pcs |
| JP-2036H | 600X500X450 | 135L*2 | 1800W | 4500W | 750W | 36pcs |
| JP-2048H | 700X500X500 | 175L*2 | 2400W | 6000W | 750W | 48pcs |
| JP-2060H | 800X600X550 | 264L*2 | 3000W | 6000W | 750W | 60pcs |
| JP-2072H | 1000X600X600 | 360L*2 | 3600W | 9000W | 750W | 72cs |
| JP-2108H | 1000X900X600 | 540L*2 | 5400W | 18000W | 1100W | 108pcs |
| JP-2144H | 12000*1000*800 | 960L*2 | 7200W | 24000W | 1500W | 144pcs |
How do I know what size of ultrasonic cleaner is best for my operation?
The two points you should think about,
● How about your cleaning volume? For very little small part, a table top ultrasonic are able to do this job. For large size and huge volume, you should consider industrial ultrasonic cleaner , for highest cleanness level , multi-stage ultrasonic cleaning system are recommend.
● The size of cleaning object, it can fit in the basket fully immersed under water.
Delivery
Usually we ship your cargo by FedEx, DHL, UPS or any other logistic company.
You can also use your own shipping agent.
RFQ
Q: What is your MOQ?
A:1 set.
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
