Product Details:
|
Model: | JP-180ST | Capacity: | 53L |
---|---|---|---|
Ultrasonic Power: | 900W | Heating Power: | 1500W |
Frequency: | 40KHz/28KHz | Internal Tank Size: | 500X350X300mm (L*W*H) |
Unit Size: | 735*455*695mm (L*W*H) | Packing Size: | 795*515*815mm (L*W*H) |
High Light: | ultrasonic cleaning device,ultrasonic washing machine |

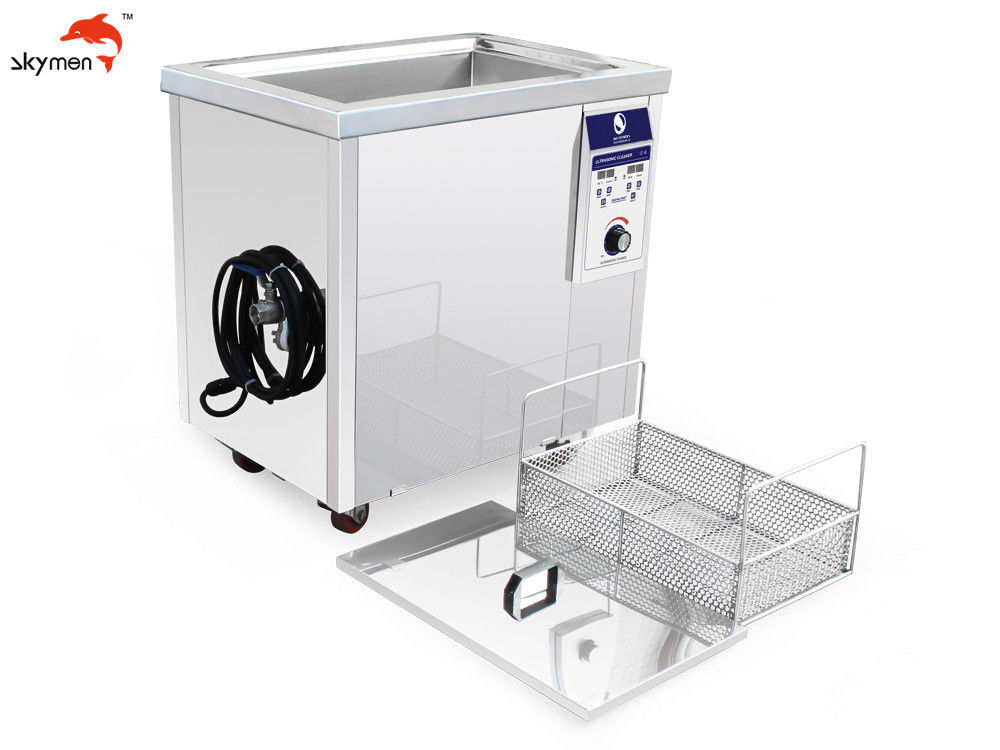

50L Chains, Gears, Value, Ultrasonc Cleaning Machine 28/40KHz Ultrasound
Specification
Model | JP-180ST |
Frequency | 28 / 40KHz |
Internal tank dimension | 500X350X300mm (L*W*H) |
Unit size | 735*455*695mm (L*W*H) |
Packing size | 795*515*815mm (L*W*H) |
Transducers | 18pcs |
Ultrasonic Power | 900W |
Heating Power | 1500W |
History:
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007,which follows the brand development strategy of “based in Shenzhen, radiating throughout the country, expanding overseas”.
Skymen also owns a professional R&D team to keep the pace with international ultrasonic technology. A passionate and young sales team sell to the world through different channels.
Other similar models:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-120ST | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JP-180ST | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JP-240ST | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JP-300ST | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
JP-301ST | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
JP-360ST | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JP-480ST | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JP-600ST | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
JP-720ST | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JP-1108ST | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JP-1144ST | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
What are advantages of injection mold ultrasonic cleaning system?
The process of cleaning injection mold components via ultrasonic bath offers significant advantages over traditional manual scrubbing. The use of abrasive techniques, of any kind, is detrimental to the tool surface, especially those that are highly finished. The ultrasonic method does not invade the surface of the steel the way conventional friction-based methods do. Ultrasonic cleaning uses a system called cavitation—the rapid forming and collapsing of millions of very small bubbles in a bath of water and suitable biodegradable cleaner. Although tiny, these little bubbles are tenacious fighters and will work their way into and around all mold-component surfaces—crevices, grooves, channels, blind holes … The ultrasonic process has proven itself to be extremely effective in removing the residues and contaminants from mold releases, burnt resin, and vent outgas without harming the surface of the steel.
The ultrasonic cleaning cycle takes 20 minutes for most applications, with additional time or cycles required for molds running high-temperature/gassy resins. Certain performance-enhancing additives (flame retardants or talc filler, for example) can also be detrimental to good mold-steel health without regular cleaning.
Clean effect:
