Product Details:
|
Tank Size: | 500 X350 X300mm(L XW XH), Can Be Customized | Frequency: | 28khz Or 40khz To Choose |
---|---|---|---|
Material: | SUS304 Or SUS316L To Choose | Generator: | Separate Control |
Warranty: | 1 Year | Advantage: | Filteration System |
Unit Size: | 730 X930 X780mm(L XW XH) | Packing: | Wooden Case,830 X1080 X900mm(L XW XH) |
High Light: | ultrasonic washing machine,ultrasonic cleaning unit |

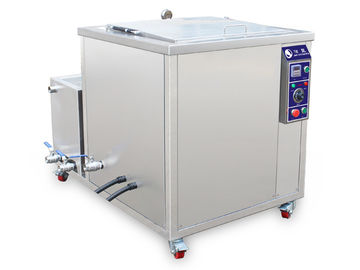

Durable 14 Gal Industrial Ultrasonic Cleaning Machine With Oil Skimmer
Specification:
Model JP-180G
Ultrasonic cleaning + filtration cycle function
Ultrasonic power: 900W
Ultrasonic frequency: 28000HZ/40000hz
Shell material: stainless steel
Tank material: high quality stainless steel (SUS304 2.0) [arc welding]
Heating power: 1500W
Maximum capacity: 53L
Time setting: Digital control (1-99 hours adjustable)
Adjustable temperature: 20-95°C
Power supply: AC380V (three-phase, 3phase), 50/60Hz
Tank inner dimension: 500 x350 x300mm
Unit dimension: 730 x930 x780mm(L xW xH)
Packing size: Wooden case,830 x1080 x900mm(L xW xH)
N.W. 99.0kg
G.W. 130.0kg
Product Certification: ISO9001:2008 & CE & RoHS
Brief introduction:
Features:
Specification details:
Single tank series with oil skimmer
Model | Tank inner size (L xW xH mm) |
Capacity (Liter) |
Transducers | Ultrasonic power | Heating power | Max. power | Timer(h) | Heater °C | Oil Skimmer | ||
JP-120G | 500 | 300 | 250 | 38 | 12 | 600W | 1.5KW | 2.47KW | 1-99 | 20-95 | With |
JP-180G | 500 | 350 | 300 | 53 | 18 | 900W | 1.5KW | 2.77KW | 1-99 | 20-95 | With |
JP-240G | 550 | 400 | 350 | 77 | 24 | 1200W | 3KW | 4.57KW | 1-99 | 20-95 | With |
JP-300G | 550 | 450 | 400 | 99 | 30 | 1500W | 4.5KW | 6.37KW | 1-99 | 20-95 | With |
JP-301G | 800 | 300 | 400 | 96 | 30 | 1500W | 4.5KW | 6.37KW | 1-99 | 20-95 | With |
JP-360G | 600 | 500 | 450 | 135 | 36 | 1800W | 4.5KW | 6.67KW | 1-99 | 20-95 | With |
JP-480G | 700 | 500 | 500 | 175 | 48 | 2400W | 6KW | 8.77KW | 1-99 | 20-95 | With |
JP-600G | 800 | 600 | 550 | 264 | 60 | 3000W | 9KW | 12.37KW | 1-99 | 20-95 | With |
JP-720G | 1000 | 600 | 600 | 360 | 72 | 3600W | 12KW | 15.97KW | 1-99 | 20-95 | With |
JP-1108G | 1000 | 900 | 600 | 540 | 108 | 5400 | 18KW | 23.77KW | 1-99 | 20-95 | With |
JP-1144G | 1200 | 1000 | 800 | 960 | 144 | 7200 | 27KW | 37.9KW | 1-99 | 20-95 | With |
Single tank without oil skimmer
Model: Skymen™ |
JP-120ST |
JP-180ST |
JP-240ST |
JP-360ST |
JP-360ST |
JP-720ST |
|
TANK'S WORKING DIMENSION (mm) |
L1 |
355 |
406 |
500 |
500 |
500 |
1000 |
W1 |
305 |
305 |
355 |
406 |
460 |
600 |
|
H1 |
355 |
460 |
500 |
500 |
550 |
600 |
|
|
|
||||||
OVERALL DIMENSION (mm) |
L2 |
535 |
586 |
680 |
710 |
710 |
1320 |
W2 |
485 |
485 |
535 |
586 |
640 |
780 |
|
H2 |
750 |
680 |
720 |
720 |
770 |
820 |
|
TANK'S TOTAL CAPACITY |
38L |
56L |
88L |
101L |
126L |
360L |
|
TANK'S MATERIAL |
SUS304 / SUS316L |
||||||
IN-TANK SURFACE FINISHING |
Hard-Cr Plating Treatment ( 20+ microns ) |
||||||
HOUSING'S MATERIAL |
Stainless steel |
||||||
ULTRASONIC FREQUENCY* |
28kHz / 40kHz |
||||||
ULTRASONIC TRANSDUCER |
12 |
18 |
24 |
30 |
36 |
72 |
|
ULTRASONIC OUTPUT POWER (MAX.) |
600W |
900W |
1200W |
1500W |
1800W |
|
|
ELECTRONIC GENERATOR |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
KG3600 |
|
Build-in |
Separate |
For high cleaning precision,the filtration and recycling system can be used.Thus for low energy water and consumption.Suitable to be fitted on single,multiple tanks,semi-auto, full automatic cleaning equipments.
A detailed introduction of ultrasonic tank and filter:
The storage tank has rough filtration function besides liquids storage. Fitted with floating oil isolation,scraping and sediment system and filter screen at open tank,to ensure pump long continous running and increase liquid efficiency.Liquid switch fitted to avoid pump working under liquid deficient,to realize timely fluid infusion.
Filtration modes: tertiary filtration.First,the overflowed liquid from cleaning tnak is roughly filtered by filter screen. Second,filtered liquid subsides and floating oil insulation,filtration in storage tank.Third,filtered liquid is pumped to SUS filter from tank.Filter precision: 50u (adjustable)
Functions:
Skymen industry series single tank ultrasonic cleaner equipment system includes transducer box and generator.
The transducer box and generator can be both build-in or separate but work together to do cleaning.
Transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank.
The number and placement of transducers is selected to give maximum results.
Specification of tank dimension and transducer boxes are custom made available.
Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
Packing and shipping:
Packing , loading, delivery time |
|
Packing unit |
1set / wooden case |
Packing method |
Export wooden case |
Loading port |
Shenzhen |
Delivery time |
About 16 working days |
Minimum Order Quantity |
1set |
Transport method |
By express company / air / sea |
Ultrasonic cleaner with oil filter system under testing
High voltage insulated testing, leakage testing, performance testing, age testing.
