Product Details:
|
Tank Size: | 1000x600x600mm (LxWxH) | Ultrasonic Frequency: | 28khz/40khz |
---|---|---|---|
Ultrasonic Max Power: | 3600W | Heater: | 20 To 80 Adjust |
Optional: | Oil Filtration System | Timer: | 1~99 Hours |
Heating Power: | 9KW, Hot Plate | Material: | Stainless Steel |
High Light: | dual frequency ultrasonic cleaner,ultrasonic cleaning unit |

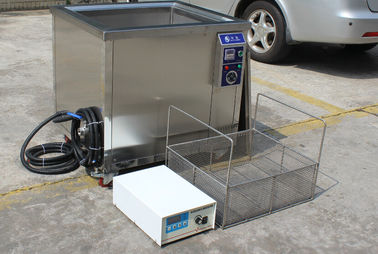

Ultrasonic Cleaning Unit for industrial Particulate desel filter cleaning
Function:
For cleaning and maintainece. To remove the dust ,oil,stuborn dirt from the mental/glass and plastic objects.Ultrasonic cleaners are especially effective for removing chemical residues from complex parts with crevices, small openings, and joints
Specification:
Ultrasonic cleaning machine : |
|
Model | JP-720ST |
Ultrasonic Tank Dimension(mm) | 1000*600*600 mm |
Rinsing tank dimension(mm) | 1000*600*600 |
Max. Capacity | 360L/tank |
Construction Case | SUS304 (Mirror shining image available) |
Construnction Tank | SUS304 |
Transducer Number | 72 pcs |
Ultrasonic power(Max.) | 3600W |
Ultrasonic frequency | 40kHz |
Temperature range | ~99C adjustable |
Heating power | 9KW |
Timer | 1~99h |
Drain | 3/4" Valve |
Lid & Basket | Available, material: SUS304 |
Cleaning Tank voltage | AC220V/AC380V 3phase |
Generator Voltage | AC110V / 220V 1phase |
How is ultrasonic cleaner work ?
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
Application:
Ultrasonic works well on the below items to take away grease, dirt, oil, pigments
Ultrasonic Auto Parts Cleaner
Ultrasonic Surgical Instrument & Medical Cleaner
Ultrasonic Aircraft Parts (Aerospace) Cleaner
Ultrasonic Semiconductor Cleaner
Ultrasonic Jewelry Cleaner
Ultrasonic Solar Cleaner
Ultrasonic Hard Disk Drive Cleaner
Ultrasonic Industrial Cleaner
Ultrasonic Circuit Cleaner
Ultrasonic Ceramics Cleaner
Ultrasonic Lens & Eyeglass Cleaner
Ultrasonic Tungsten Carbide Cleaner
Ultrasonic Plastics Cleaner
Ultrasonic Oil & Gas Refinery Equipment Cleaner
Ultrasonic Gun & Case Cleaner
Ultrasonic Bike Cleaner
Ultrasonic Musical Instrument Cleaner
Ultrasonic Dental Cleaner
Ultrasonic Coin Cleaner
Glass ware
Chemical dust,
Package
Packing , loading, delivery time |
|
Packing unit |
1set / wooden case |
Packing method |
Export wooden case |
Loading port |
Shenzhen / Hongkong |
Delivery time |
About 20 working days |
Minimum Order Quantity |
1set |
Transport method |
By express company / air / sea |
Before and after:
